Mitutoyo

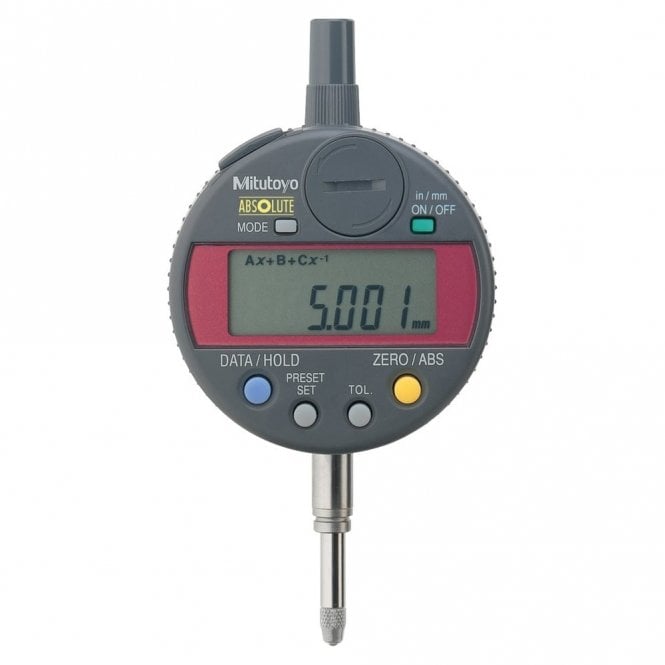

543-286B Absolute Digimatic Digital Calculating Indicator ID-C, Range 0.5" / 12.7mm, Resolution 0.00001" - 0.05" / 0.002mm - 1mm ( 12 Steps ) ( Selectable )

SKU:Code: 543-286B

This item is no longer available or has been discontinued.

This indicator incorporates an internal calculation function that operates from plunger displacement.
View full details
Specification
  • range 0.5" / 12.7mm
  • display type Digital
  • resolution 0.00001" - 0.05" / 0.002mm - 1mm ( 12 Steps )
  • data output Yes
  • ip rating IP42
  • measuring units Imperial / Metric
description

This indicator incorporates an internal calculation function that operates from plunger displacement. Using dedicated fixtures, measurements of outside and inside diameter and radius of curvature can easily be made without needing to use conversion tables or manual calculations, and requiring access to only one side of the component to be measured. The ABSOLUTE sensor restores the last origin position automatically when the indicator is turned on. The chance of over-speed error has been avoided thanks to the ABSOLUTE sensor. Tolerance judgement is available by presetting upper and lower limit values. Large, easy-to-read 7-digit LCD readout with a character height of 8 mm. Can be rotated up to 330º to achieve the optimum reading position. Equipped with a data output port that enables incorporation into measurement networking and statistical process control systems.
