Sylvac

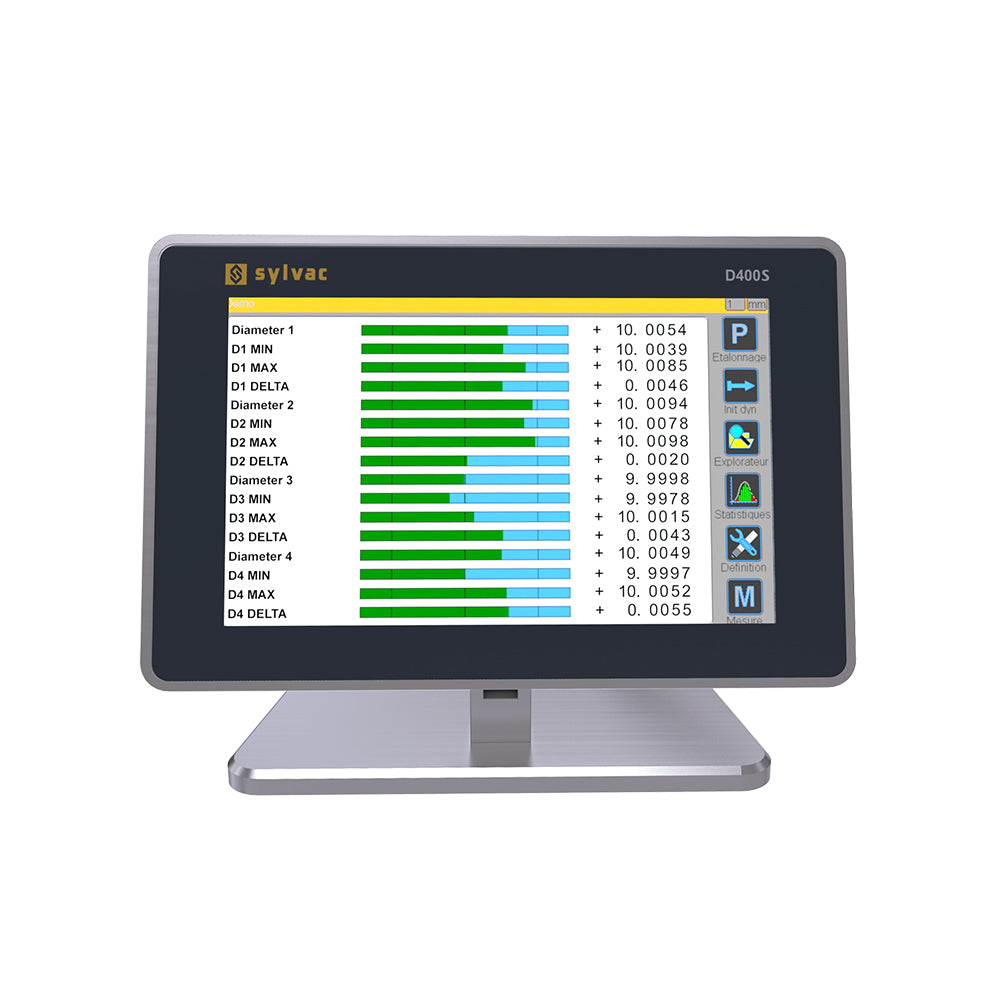

30-804-2400 D400S Digital Display Unit, Resolution up to 0.0001mm / 0.1μm, Output Data USB / RS232, Displays up to 32 Channels Simultaneously

Code: 30-804-2400

Sale Sold out £4,056.98
Save: 3% Sold out £4,056.98 £4,161.00
Excl. VAT

Request a Quote

Add to Compare

Digital display units with probes are electronic devices used for measuring and displaying various physical parameters. These units typically consist of two main components: a digital display or readout and a probe or sensor. The probe is designed to detect or measure a specific physical quantity, while the digital display unit converts the probe's output into a readable format and provides a numerical or graphical representation of the measurement.

  • The UKs Leading Metrology Distributor

  • Trusted by the biggest companies in the UK

  • Need more information? Ask a question or contact us.
View full details
Specification
  • type Display Unit
description

Multifunctional unit for connecting up to 99 Sylvac instruments of different makes via M-BUS modules (the unit itself has no inputs for the instruments). Ideal for multi-dimensional control stations and automation applications. Robust aluminium housing with table stand or can be integrated into a panel. Large 7’’ colour touch screen. Displays up to 32 channels simultaneously (on the same screen) or spread over several pages (max. 32). Intuitive interface for creating channel combinations, performing dynamic measurements, editing mathematical formulas or creating sequences.Up to 128 room configurations can be stored and up to 30,000 values can be saved per configuration or saved on a USB stick. Basic SPC functions (Cp, Cpk, run chart, Pareto, histogram with Gauss curve, etc.). Display resolution up to 0.0001 mm (0.1 μm). USB and RS2323 data outputs. ASCII and Modbus communication protocols. IP54 liquid-proof front panel for workshop use
