KD-031 Internal Complex Forms Kit
SKU:Code: KD-031
The UKs Leading Metrology Distributor
Trusted by the biggest companies in the UK
Need more information? Ask a question or contact us.
- type Kit
The Complex Internal Forms Kits KD-031 is one of our most popular kits containing a broad scope of products. Enabling you to conduct inspection across a wide variety of complex internal forms this kit is ready to go straight out of the case.

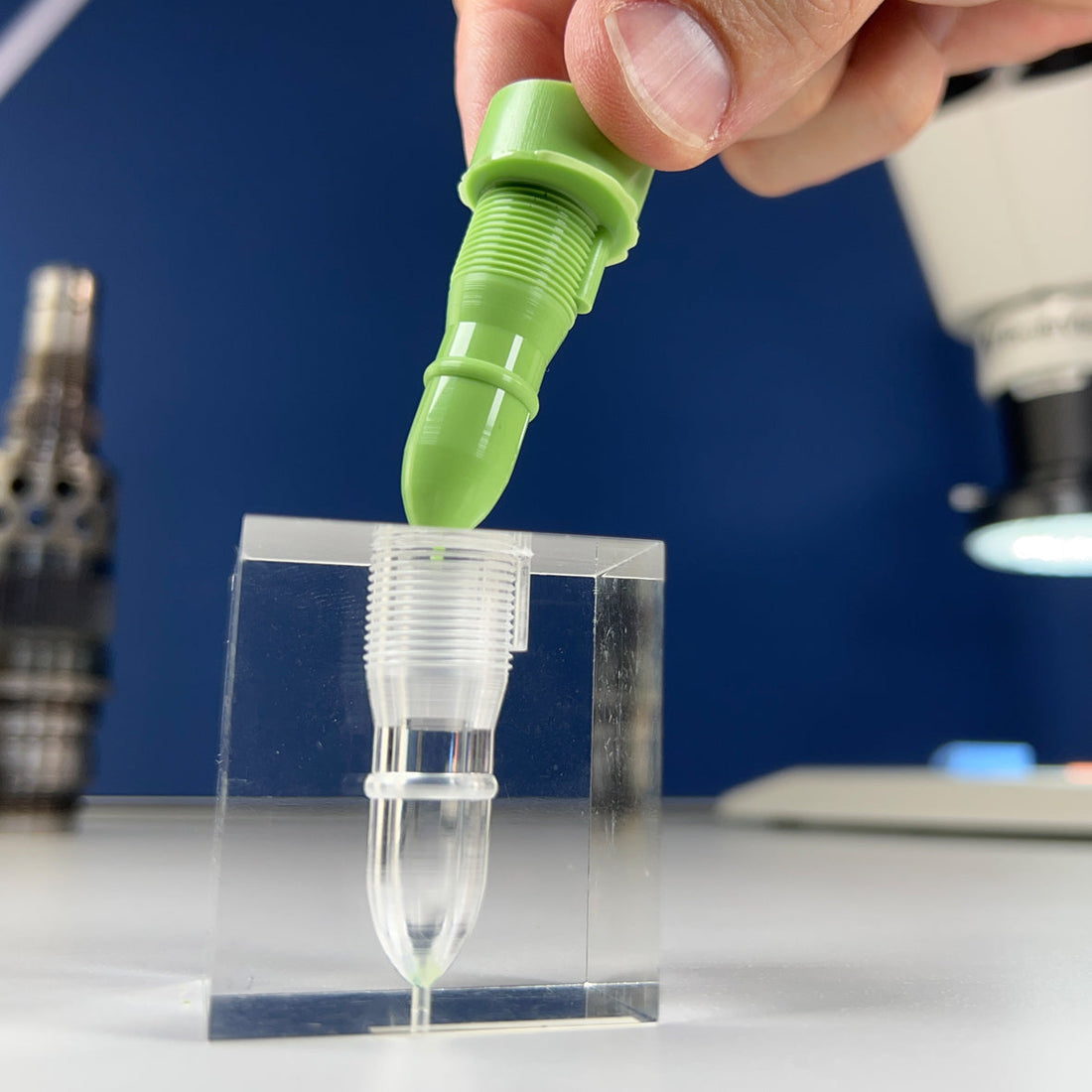

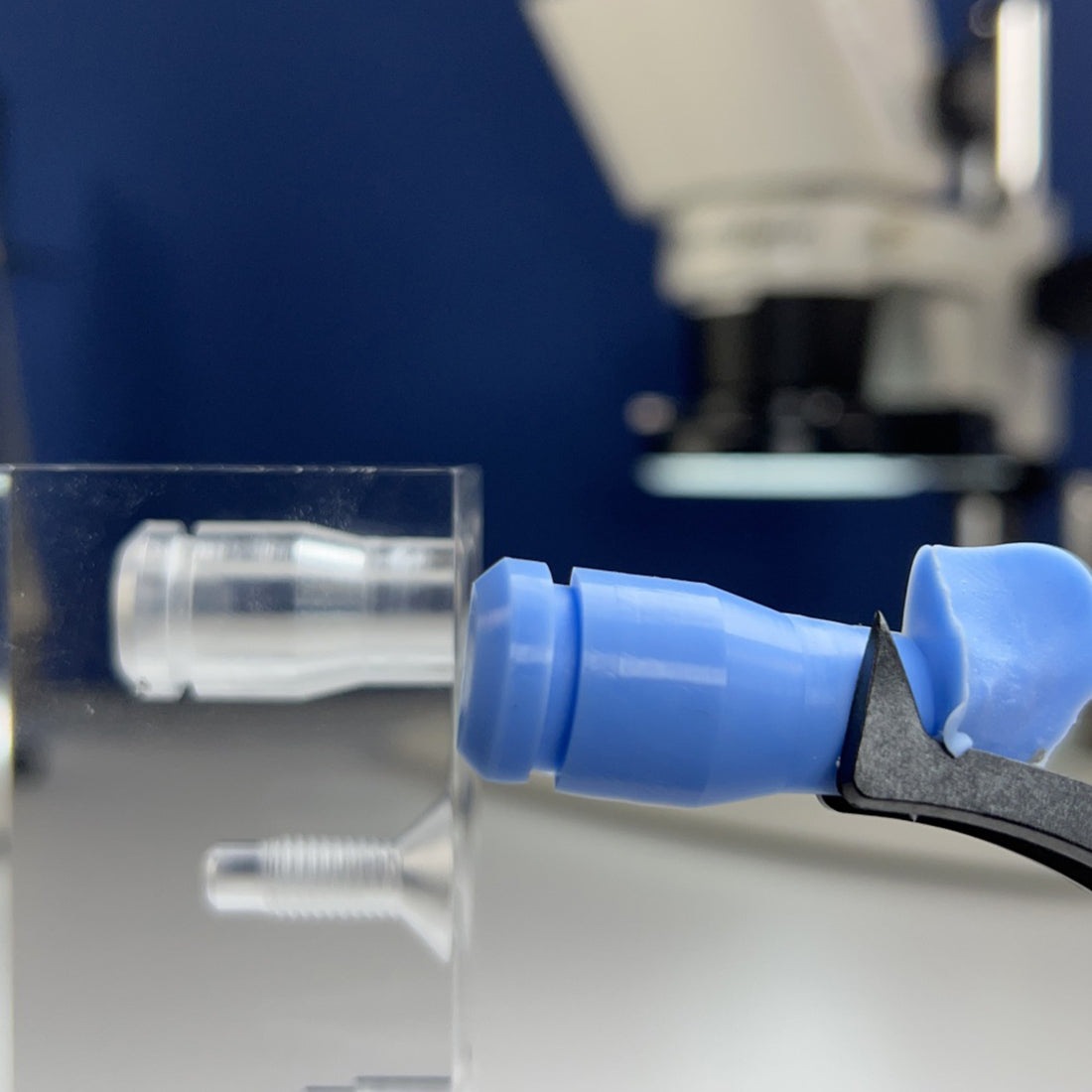

The fluid products F20 & F50, can easily be applied inside any kind of part to obtain a complete internal replica. The two products give Flexible or Semi-Flexible impressions, that can be stretched and deformed during removal.
The P25 is particularly recommended for creating full internal impressions in bores with small diameters. Thus, it is injected by compression, and its high elongation capacity allows it to be removed, even in the presence of internal angles.
The kit contains our brilliant double blade cutter which can be used to take a 1mm slice through your impression for easier measurement.
Replicas can be inspected on Profile Projectors, Vision systems or similar.

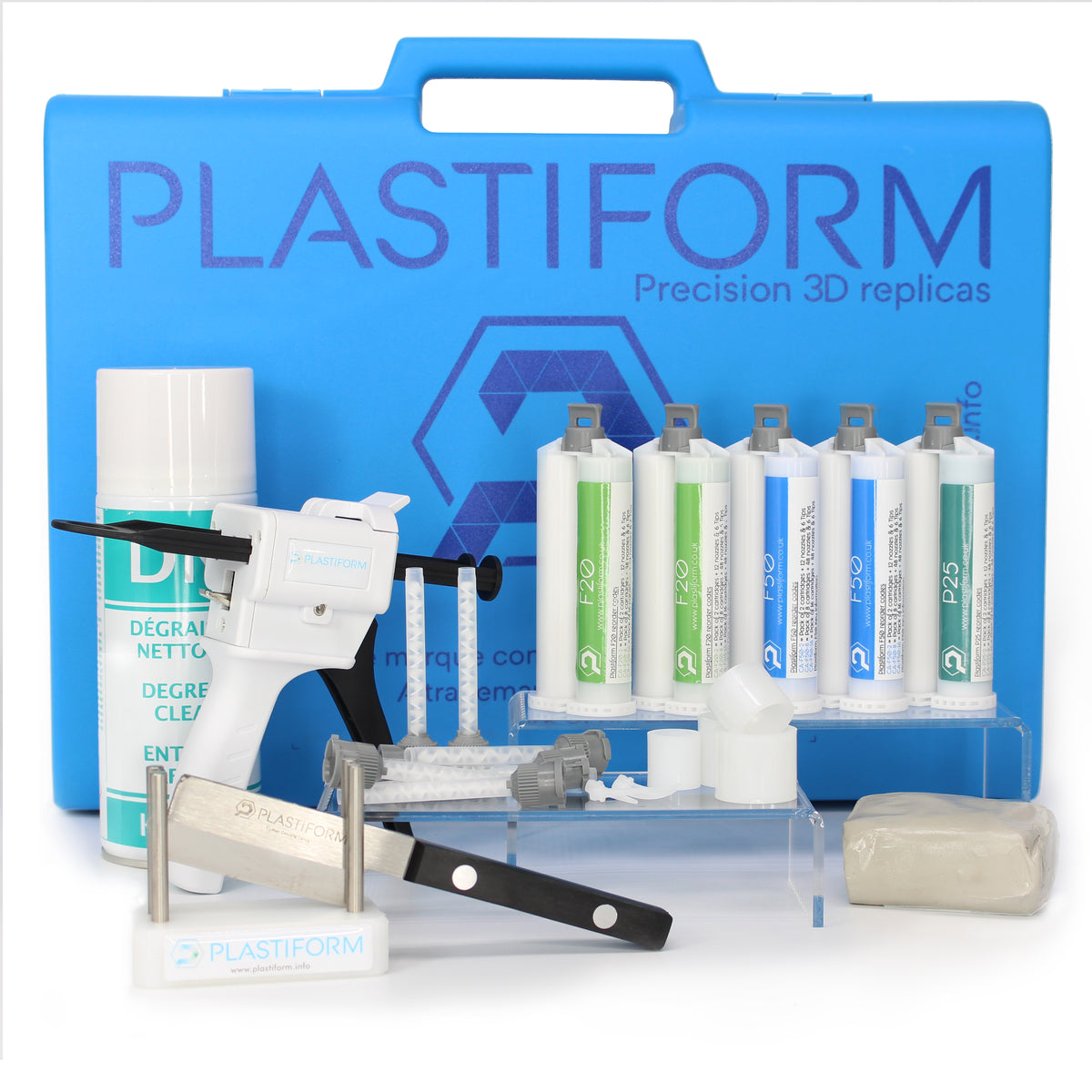

KIT CONTENTS
| Compounds |
3x F20 2x F50 1x P25 |
| Accessories |
1x Dispensing gun DS-53 20x Mixers nozzles 6x Mixer Nozzle Tips 1x Plastin (50g) - Technical Modeling Clay 1x DN1 (Surface cleaner 400ml) 1x Double Blade Cutter and Support |
