Plastiform
P35 Replicating Compound
SKU:Code: CA-P35-2
The UKs Leading Metrology Distributor
Trusted by the biggest companies in the UK
Need more information? Ask a question or contact us.
- type Cartridge
- accuracy 1 Micron
- colour Orange
- final consistency Flexible
- final hardness shore a 35 Shore A
- initial consistency Pasty
- size 50ml Cartrigdge
- remarks Recommend for Complex External Forms
- working time 90 Seconds
- setting time 8 Mins (At 20 Degrees C)
- can it be cut Yes
P35 has an initial paste-like consistency (not flowing). In this way it can be applied on vertical or overhanging surfaces. It is a non-flowing product, so it is very suitable for partial impressions. The final impression being Flexible (hardness 35 Shore A), it can deform during demoulding. The replica accepts an Extraction Constraint of up to 20%.
P35 is a product used to make partial replicas or to control external spaces not accessible for a fluid product. The impression is very accurate, and all surface details are reproduced in µm. The P35 is a product very suitable for carrying out checks on large external threads or complex shapes outside the reach of the F50 or F20.

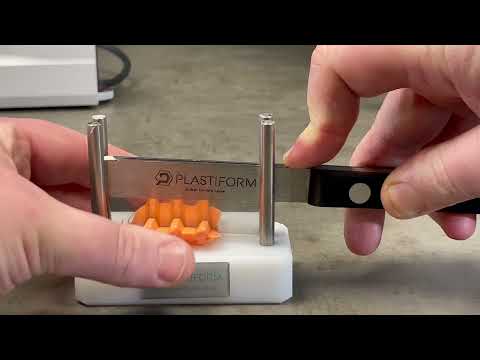

Finally, it is a product compatible with the Double Blade Cutter. This will allow you to measure the impressions without difficulty by cutting a profile in 2 dimensions.
