Plastiform
M70 Manual Replicating Compound
SKU:Code: MT-003-B
The UKs Leading Metrology Distributor
Trusted by the biggest companies in the UK
Need more information? Ask a question or contact us.
- type Manual Putty
- accuracy 1 Micron
- colour Grey
- final consistency Semi-Flexible
- final hardness shore a 70 Shore A
- initial consistency Putty
- remarks Recommend for External Simple Forms
- working time 45 Seconds
- setting time 4 Mins (At 20 Degrees C)
- can it be cut Yes
Its initial malleable consistency (clay) allows M70 to be applied manually on vertical or overhanging surfaces. The final impression is Semi-Soft (hardness 70 Shore A), and has a low deformation capacity.

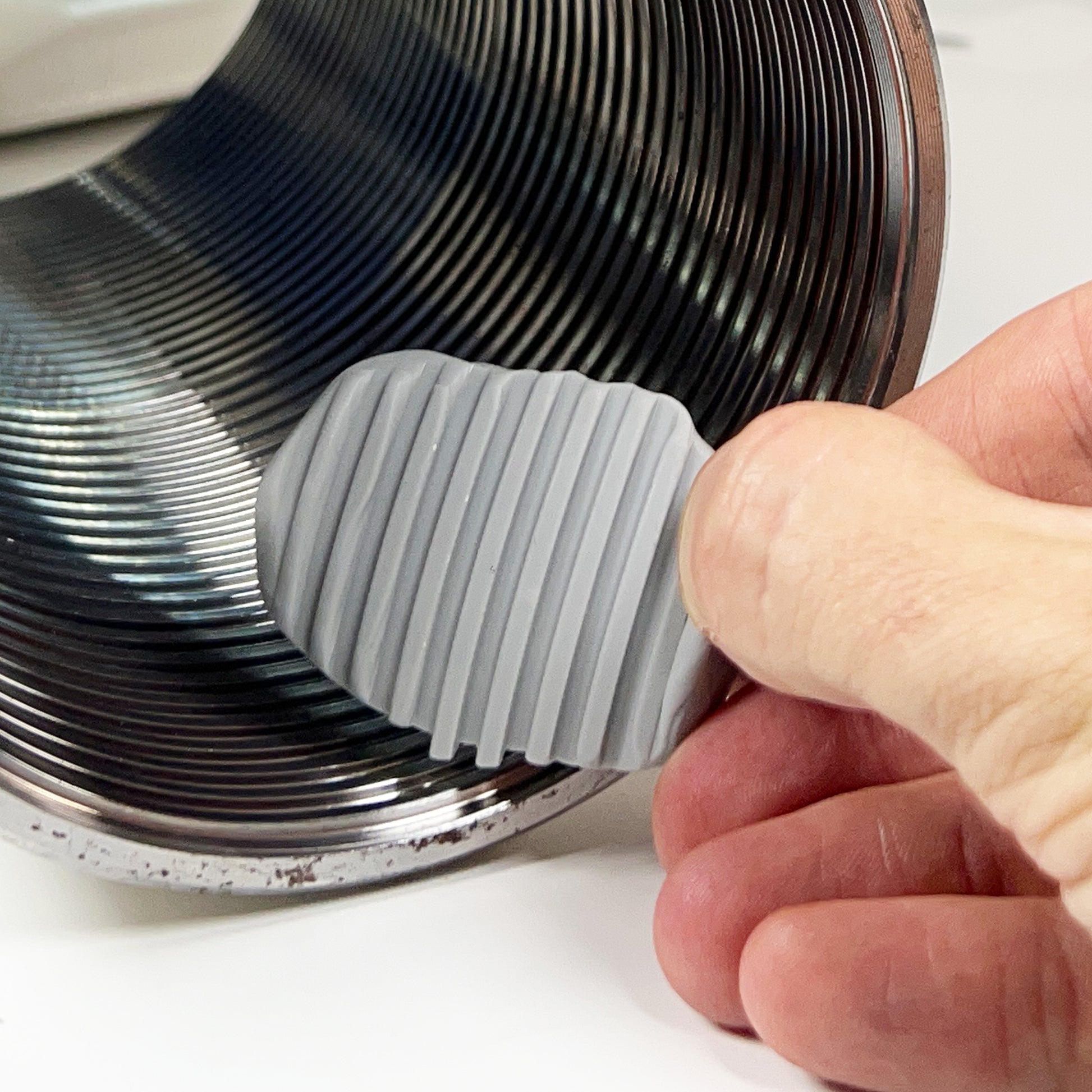

It accepts a maximum Extraction Constraint of 5%, and must therefore be used on low complexity shapes. The M70 is recommended for creating simple external shape impressions (threads, grooves, grooves, etc.) on medium to large sized parts. It is also used to create custom precision poses for complex or fragile parts.
The M70 was developed to replace the KV-AD, an old generation PLASTIFORM Malleable. It is possible to cut this impression with the Double Blade Cutter to obtain a profile of the replica. The profiles greatly improve the quality of the final measurement.
