Accretech

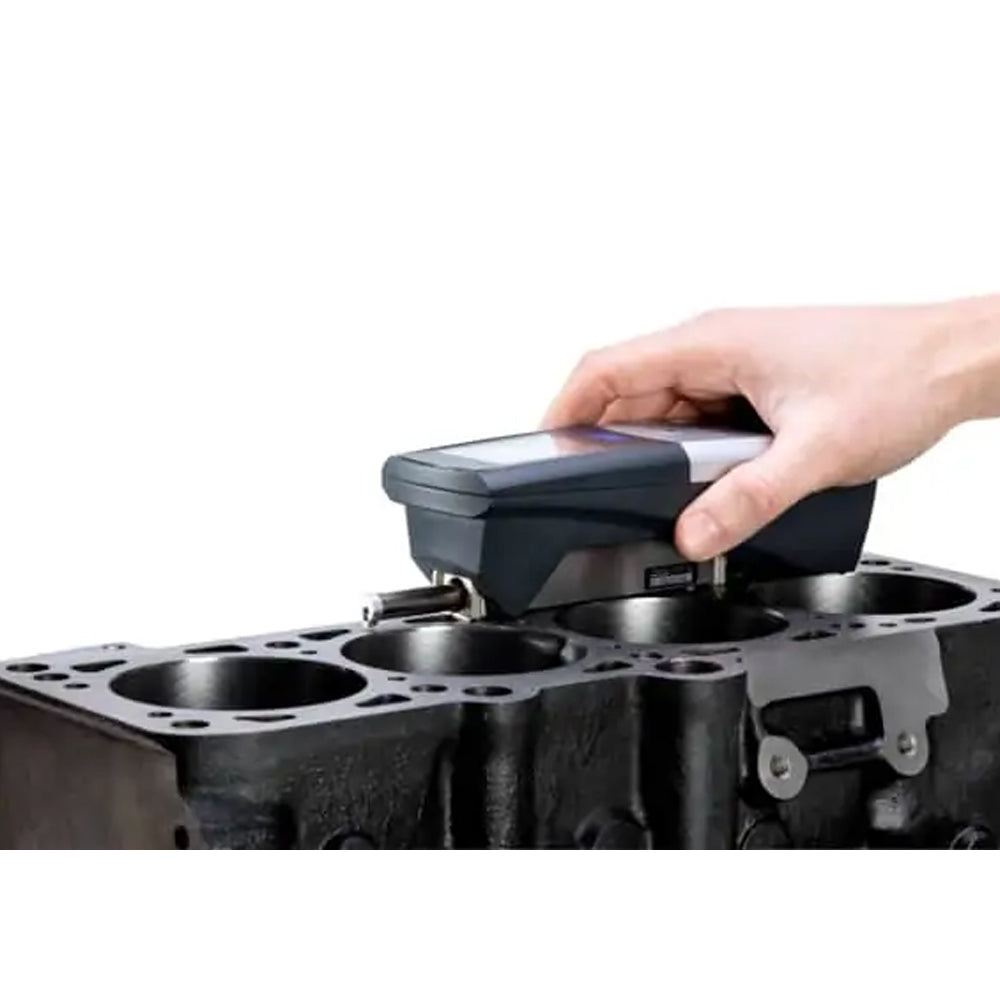

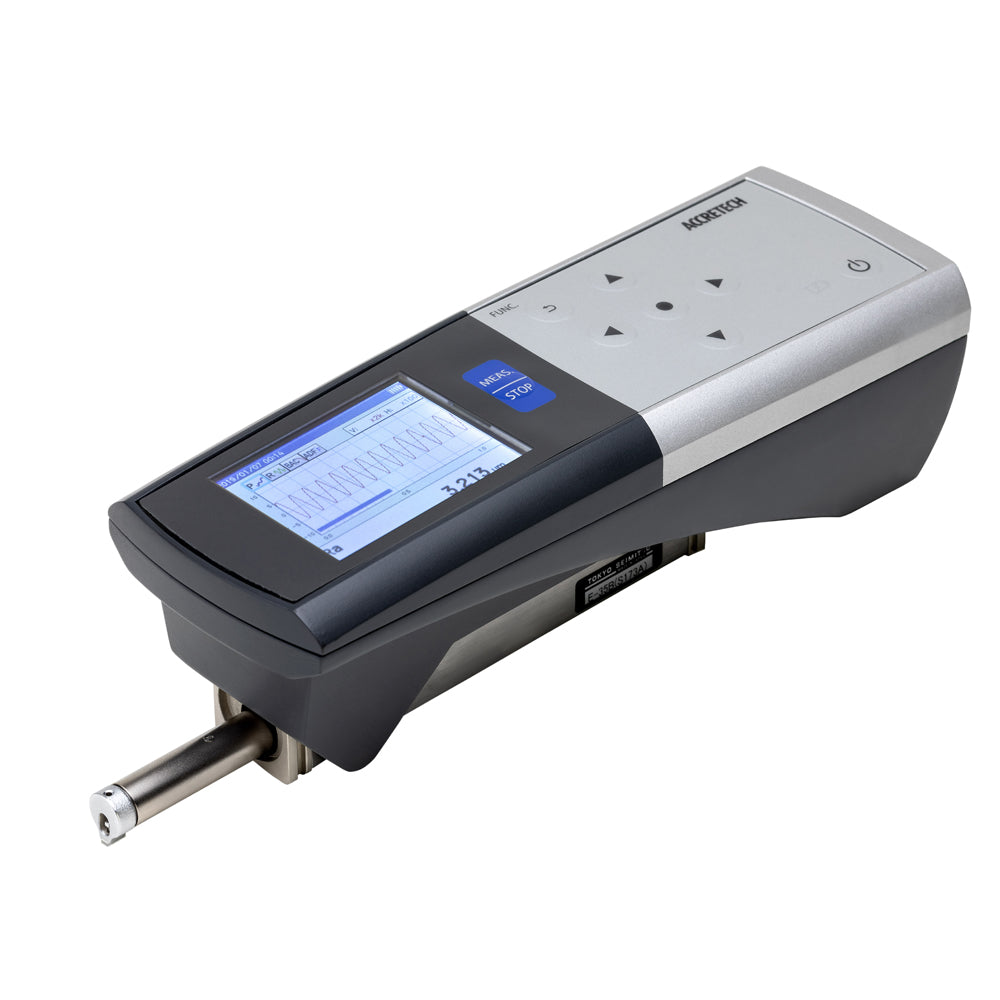

Handysurf+ E-35 Surface Roughness tester with 2μm tip - Standard
SKU:Code: E35/2+
The UKs Leading Metrology Distributor
Trusted by the biggest companies in the UK
Need more information? Ask a question or contact us.
- type Standard
- display type 2.4" colour liquid crystal display
- resolution 0.0007μm
- style Skidded
The previous HANDYSURF required setting of a narrow measuring range when measuring with a high resolution, but HANDYSURF+has evolved! The instrument has the Z direction measuring range of 370 μm, which is the widest in class, and achieved a resolution as high as 0.0007 μm over the entire range.
Connectable to the compact printer, USB memory stick and PC with built-in USB connector
With the USB connector, it is possible to print measurement results to the optional compact printer, save measurement conditions and results on USB memory sticks and recharge the instrument from the USB port of a PC or with a USB 40 (Retract type) battery.
Superior Operation
Significantly improved the visibility. Moreover, 6 buttons and newly developed UI have achieved simple and intuitive operations.
Multiple analysis capabilities
Graphic representation of measurement results enables their on-site verification with parameter and waveform. Moreover, despite being a portable instrument, it is capable of a variety of analyses including analyses of BAC, ADC, peak count and motifs. By setting the conditions in advance, OK/NG judgment can be performed automatically.
Display available in 20 languages Multi-language support available worldwide
20 European and Asian languages including English, German and French are provided as standard. Display language can be easily and quickly changed by menu options.
