Mitutoyo

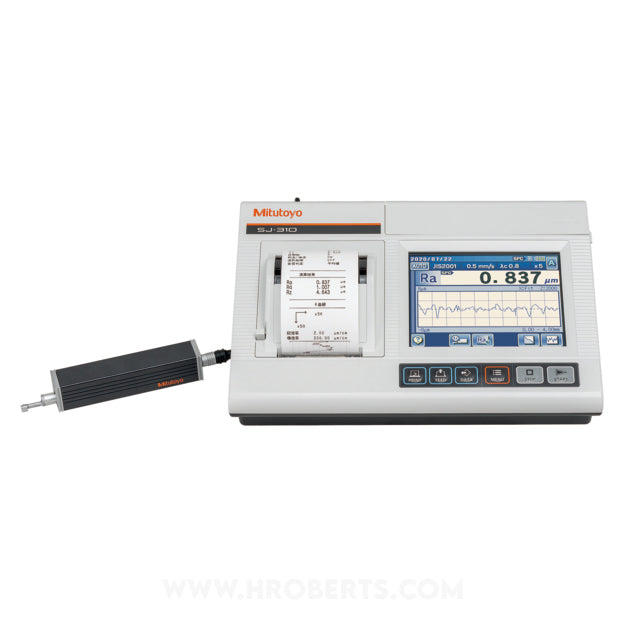

178-573-12E SJ-310 Portable Surface Roughness Tester, Imperial / Metric, Measuring Range 16mm, Resolution 0.001µm, Drive Unit Retractable, Stylus Tip Angle 90°, Radius 5μm
SKU:Code: 178-573-12E
The UKs Leading Metrology Distributor
Trusted by the biggest companies in the UK
Need more information? Ask a question or contact us.
- type Retractable
- display type 5.7-inch colour LCD
- resolution 360 μm/0.02 μm. 100 μm/0.006 μm. 25 μm/0.002 μm
- style Skidded
The Surftest SJ-310 offers you the following benefits: Skid system with touch-screen functionality and built-in printer. It works independently of mains power, allowing you to make on-site measurements. Easy and intuitive menu navigation. The large 14.5 cm [5.7“] colour LCD gives you high visibility. It performs roughness analyses conform to various international standards (EN ISO, VDA, ANSI, JIS) and customized settings. You can store up to 10 different measuring conditions inside the SJ-310, and up to 500 with an optional SD card. Statistical analysis and coloured tolerance judgement. 2 different evaluation conditions within 1 measurement adjustable. You can separately password protect many functions. It comes with support for 16 languages.
