Mitutoyo 500-752-20 Digimatic Digital Coolant Proof Caliper, Range 0-150mm / 0-6", Resolution 0.01mm / 0.0005", Absolute System, IP67
SKU:Code: 500-752-20
The UKs Leading Metrology Distributor
Trusted by the biggest companies in the UK
Need more information? Ask a question or contact us.
- brand Mitutoyo
- type Standard
- range 0-150mm / 0-6"
- display type Digital
- resolution 0.01mm / 0.0005"
- data output No
- ip rating IP67
- measuring units Metric / Imperial
- remarks Including box
- battery life 5 Years under normal use
- battery SR44
- depth bar Flat Blade
- hs code 90173000000
- country of origin Japan

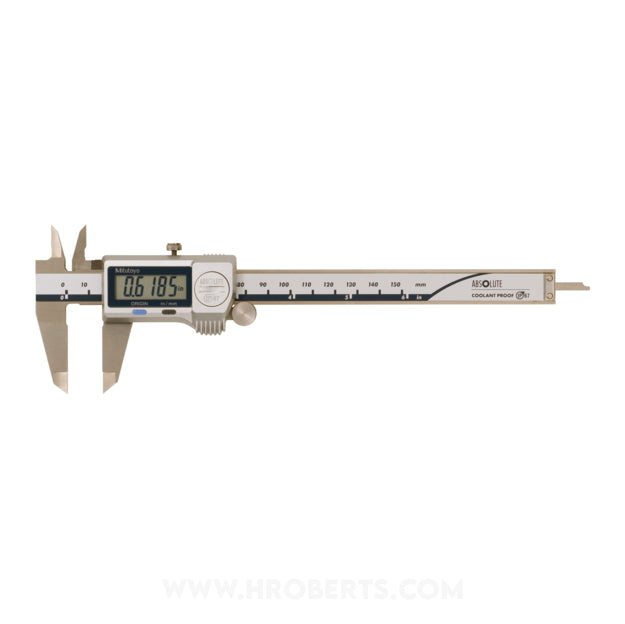

Mitutoyo 500-752-20 Coolant-Proof ABS Digital Caliper – 150mm / 6" Range
The Mitutoyo 500-752-20 ABS Digital Caliper is designed for accurate measurement in demanding workshop environments. With an IP67 coolant-proof rating, this caliper is protected against dust, water, and coolant ingress, making it ideal for machining, fabrication, and quality inspection applications.
Mitutoyo’s ABSOLUTE linear encoder technology retains the origin position even when the caliper is powered off, eliminating the need for repeated zeroing and improving efficiency during repetitive measurement tasks.
Key Features
- ABSOLUTE linear encoder eliminates the need for re-zeroing
- IP67 coolant-proof and dust-proof construction
- ZERO/ABS function for comparative and absolute measurements
- Measurement range of 0–150mm (0–6")
- Accuracy of ±0.02mm with 0.01mm resolution
- Large, clear LCD display for fast, reliable readings
- Automatic power on/off for extended battery life
- Durable stainless steel construction
- Measures outside, inside, depth, and step dimensions
Applications
- Machining and CNC workshops
- Coolant and wet working environments
- Quality control and inspection
- Precision engineering and manuf
