Plastiform
M25 Manual Replicating Compound
SKU:Code: MT-001-B
The UKs Leading Metrology Distributor
Trusted by the biggest companies in the UK
Need more information? Ask a question or contact us.
- type Manual Putty
- accuracy 1 Micron
- colour Green
- final consistency Flexible
- final hardness shore a 25 Shore A
- initial consistency Putty
- remarks Recommend for External Complex Forms
- working time 45 Seconds
- setting time 4 Mins (At 20 Degrees C)
- can it be cut Yes

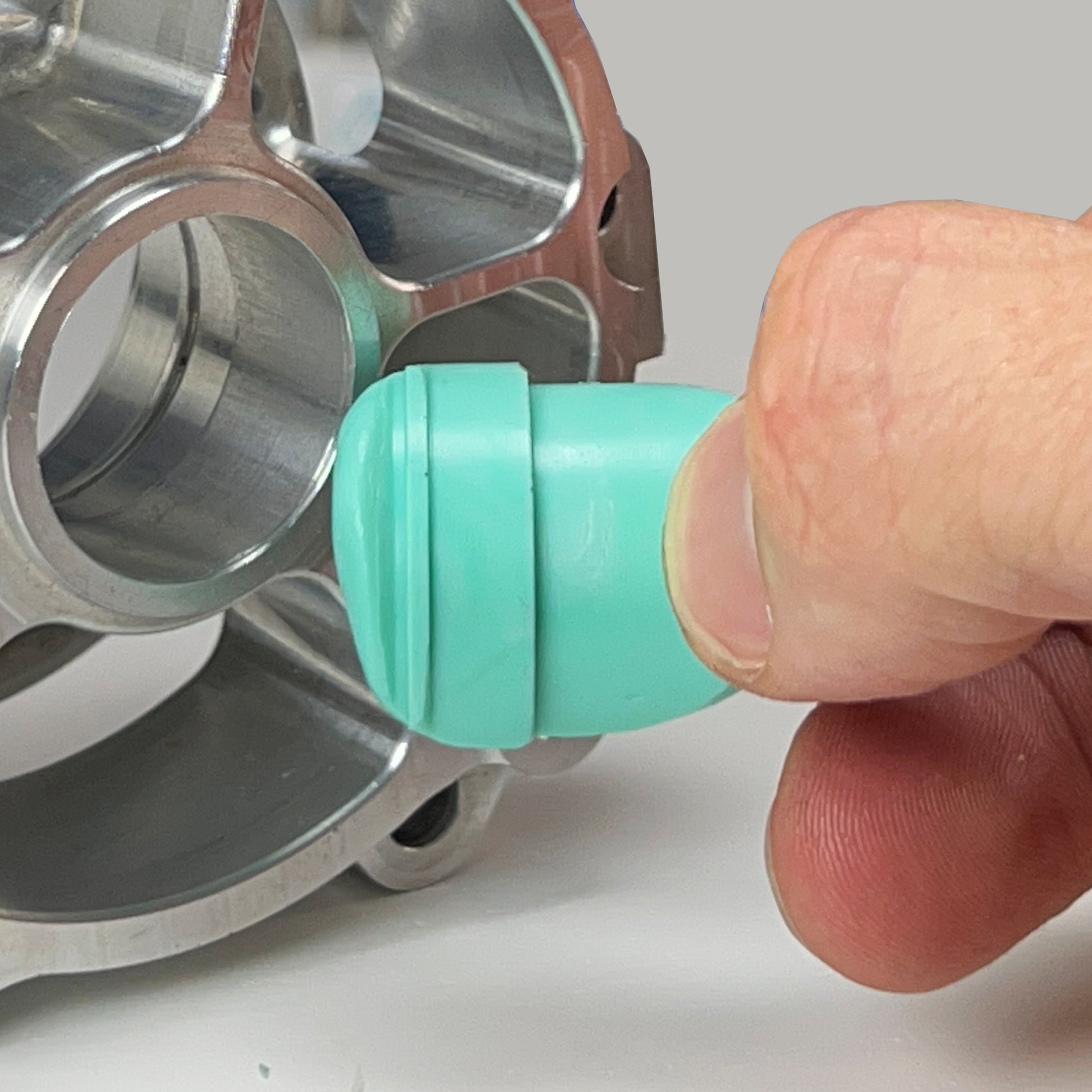

M25 is a very flexible malleable plastiform whose footprint can withstand Extraction Stress of up to 15%. As a result, it is a malleable material capable of performing dimensional checks on complex external shapes (T-slots, grooves, etc.). The M25 is the most flexible malleable of the range, it is very elastic and very easy to extract.
The M25 is used in very specific cases where there is a high extraction constraint. It is particularly useful for controlling an area without having to dismantle an assembly. Its consistency will allow you to apply it by hand easily and its flexibility to extract it.

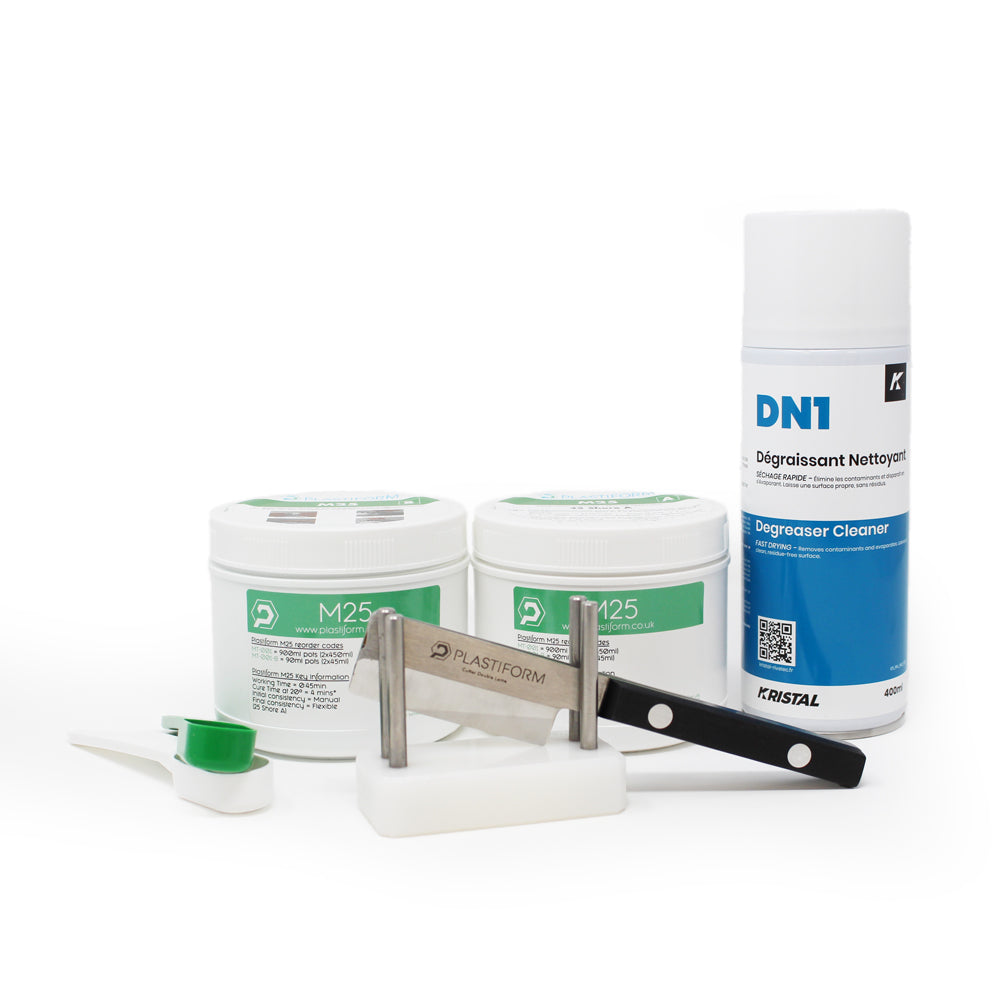

This plastiform can be cut with the Double Blade Cutter. This practice greatly improves the ease with which you will use the impression, which is why we recommend using the cutter with the M25.
