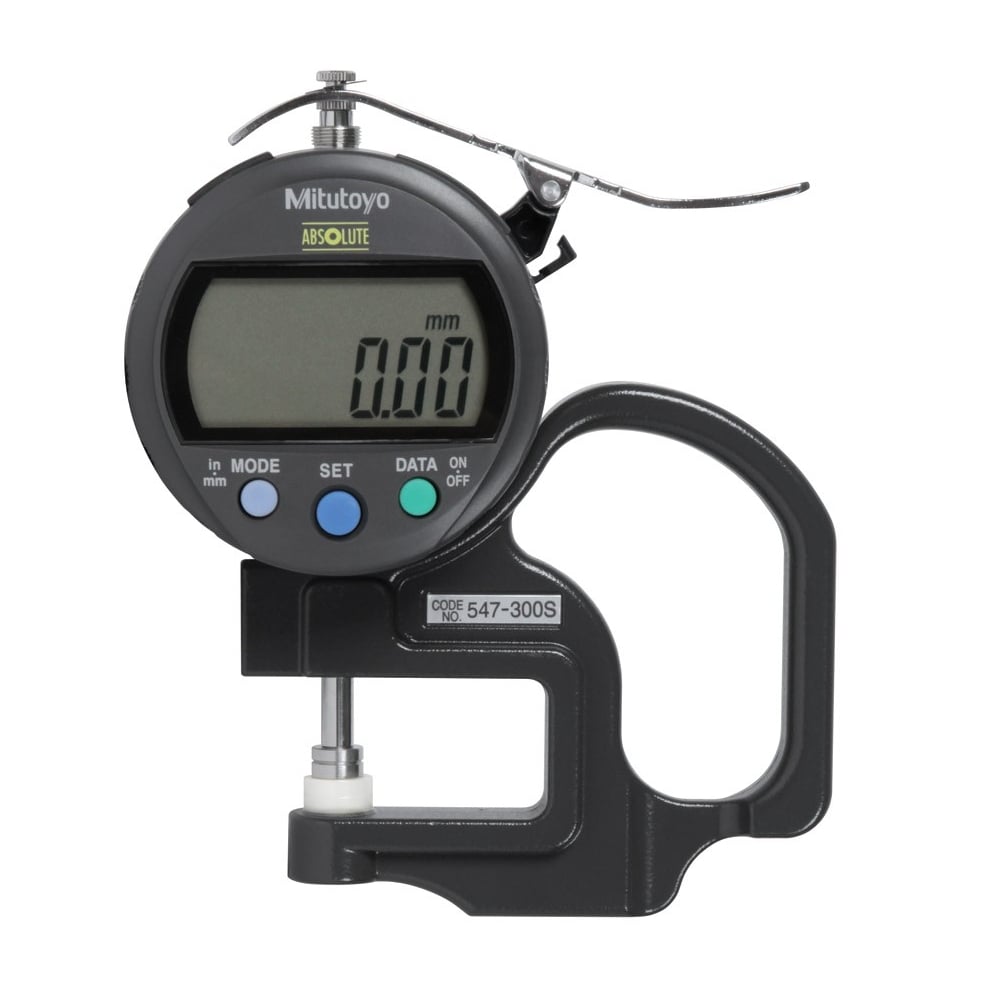

Mitutoyo 547-300S ABSOLUTE Digimatic Thickness Gauge 0-10mm / 0-.4"

547-300S
Code: 547-300S
  • NOW £237.41 Ex. VAT

A Mitutoyo digital-indicator based instrument designed for quick and efficient measurement of small dimensions. Ideally suited for measuring the thickness of paper, film, wire, sheet metal and similar materials. The convenient grip handle, thumb trigger and spring-loaded plunger make the instrument easy to use.

| Usually dispatched within 24 hours
Loading...
Check out using PayPal Secure Paypal payment on all orders
Free Delivery to UK Mainland on all orders over £100 Place an order over £100 Ex. VAT and get free recorded delivery
Specification
Range0-10mm/ 0-.4"
Display TypeDigital
Resolution0.01mm / .0005"
Data OutputYes
Measuring Force1.5N or less
Measuring UnitsMillimetre / Inch
Stem Dia8mm



    • Disc contact points made of ceramic.



    • Unique thickness gauge equipped with the ABSOLUTE DIGIMATIC Indicator IDC.



    • The origin is set only once and is stored as the absolute origin until the battery is replaced.



    • Measuring precision even at highest drive speed.



    • Large display characters for easy reading.



    • Lightweight construction.



Conventional Digital Measurement


Conventional Measurement

ABSOLUTE Digimatic Measurement



Absolutely safe, absolutely ingenious: The ABSOLUTE system. All Mitutoyo measuring instruments with this logo incorporate the ingenious ABSOLUTE measurement system. An ABSOLUTE scale only needs to have the origin position set once, which then holds for all future measurements, no matter how often the instrument is switched off. Incremental measurements can be made at any time without losing the origin setting.


ABSOLUTE
