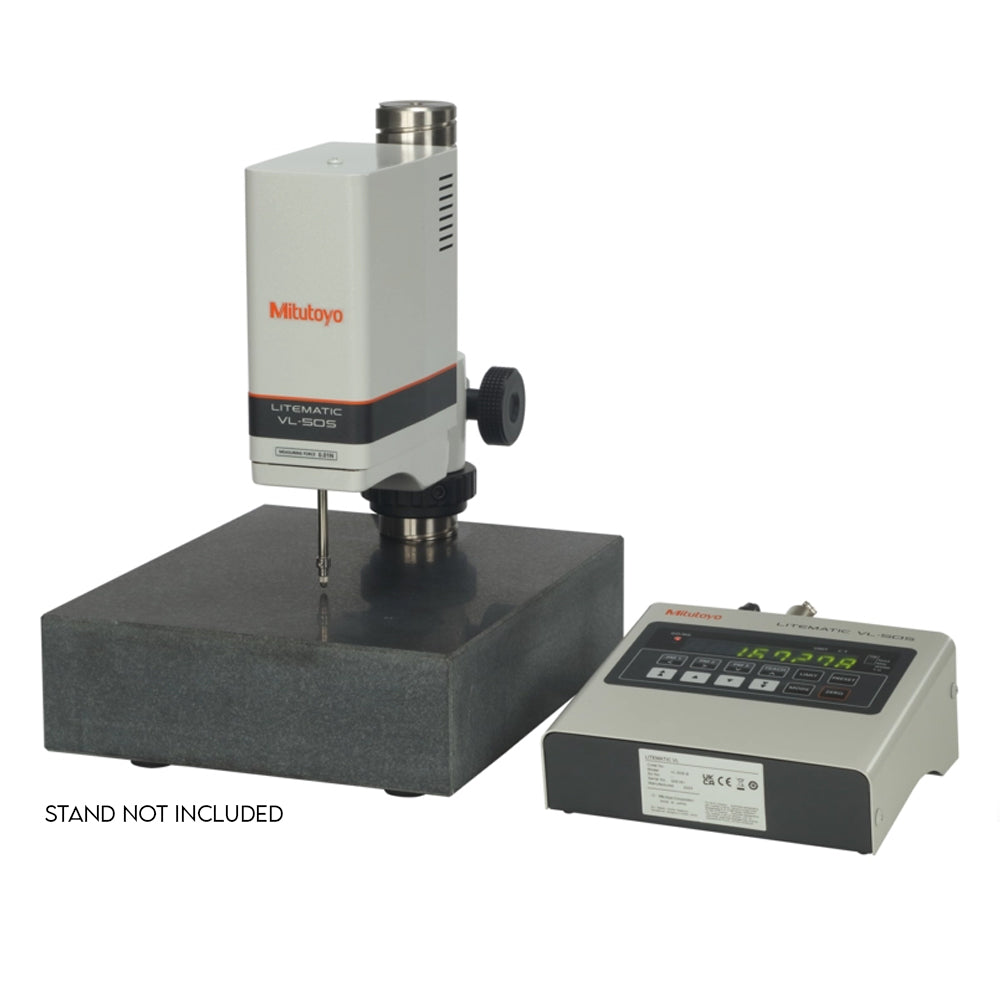

Mitutoyo 318-226-10E VL-50S-B Litematic High Resolution Digital Measuring Unit, Range 0-50mm / 0-2", Resolution (Switchable) 0.01μm, 0.1μm, 1μm / 0.5μinch, 5μinch, 50μinch
SKU:Code: 318-226-10E
Item priced on application.
Request a Price
VL-50S-B Litematic
Measuring range: 0 - 50mm
Measuring accuracy (20 °C) up to (0.5+L/100) μm
L=arbitrary measuring length (mm)
Repeatability up to σ 0,05 μm
The granite stand shown is an optional accessory
The UKs Leading Metrology Distributor
Trusted by the biggest companies in the UK
Need more information? Ask a question or contact us.
Specification
Specification
- type Litematic
- brand Mitutoyo
description
description
The Litematic is designed for measuring easily deformed workpieces and high-precision parts such as pin gauges, thin-wall bearings, plastic parts, and springs. Data output is in Digimatic format to enable processing and documentation of measurement values as well as statistical evaluation via connected Digimatic data processing units or PCs.
