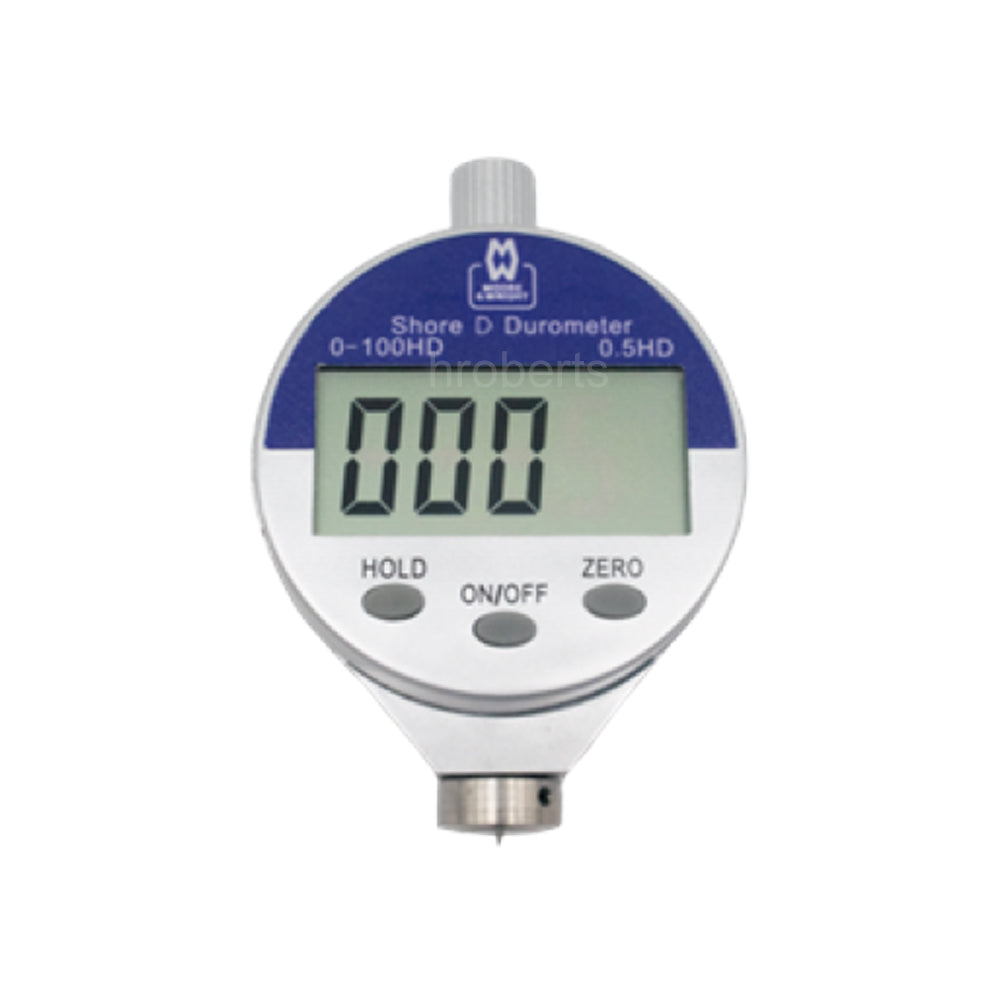

Moore & Wright MWT-3610 Shore D Digital Durometer, Range 0-100 HD, Resolution 0.5 HD
SKU:Code: MWT-3610
The UKs Leading Metrology Distributor
Trusted by the biggest companies in the UK
Need more information? Ask a question or contact us.
- brand Moore & Wright
- type Durometer
- range HD 0-100
- display type Digital
- resolution 0.5
- scale Shore D
- style Compact
Moore and Wright’s new Durometers measure the hardness of softer materials where other methods, such as Leeb hardness testing, are unsuitable. The testers use a conical indenter which is pressed into the test material, these are spring-loaded to apply a calibrated force to the surface, creating a small indentation. The durometer uses the depth of this indentation to calculate the material's hardness from 0 to 100HA or HD, displaying the result on the LCD to the nearest 0.5 with an accuracy of ±2.
The MWT-3600 Shore A Durometer is ideal for measurements on softer materials such as silicone, vinyl and rubber. The MWT-3610 Shore D Durometer is best suited to rigid and semi-rigid plastics, or softer metals.
Features
- Simple operation
- Large LCD
- IP40 ingress protection
- Supplied in rigid plastic case
