Images are for illustration purposes only - Products may differ.

Accretech

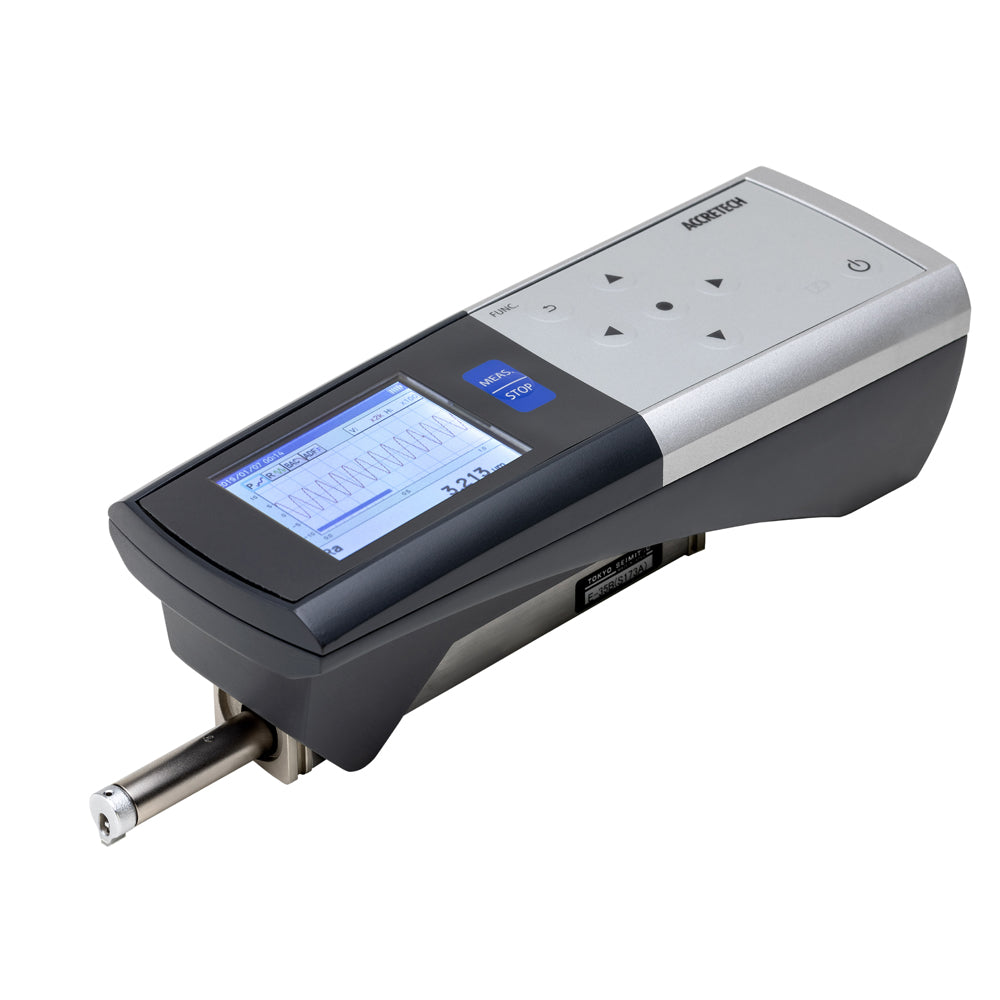

Handysurf+ E-35 Surface Roughness tester with 5μm tip - Standard

SKU:Code: E35+

Sale Sold out Regular price £1,790.00
Sale Sold out Sale price £1,790.00 Regular price £1,790.00
Excl. VAT
New HANDYSURF+, reborn with sophisticated design. Portable surface texture measuring instrument for global use responding to diverse everyday needs.
  • The UKs Leading Metrology Distributor

  • Trusted by the biggest companies in the UK

  • Need more information? Ask a question or contact us.

View full details
Specification
  • type Standard
  • display type 2.4" colour liquid crystal display
  • resolution 0.0007μm
  • style Skidded
description

Accretech Handy Surf



The previous HANDYSURF required setting of a narrow measuring range when measuring with a high resolution, but HANDYSURF+has evolved! The instrument has the Z direction measuring range of 370 μm, which is the widest in class, and achieved a resolution as high as 0.0007 μm over the entire range.


Connectable to the compact printer, USB memory stick and PC with built-in USB connector


With the USB connector, it is possible to print measurement results to the optional compact printer, save measurement conditions and results on USB memory sticks and recharge the instrument from the USB port of a PC or with a USB 40 (Retract type) battery.


Superior Operation

Significantly improved the visibility. Moreover, 6 buttons and newly developed UI have achieved simple and intuitive operations.


Multiple analysis capabilities


Graphic representation of measurement results enables their on-site verification with parameter and waveform. Moreover, despite being a portable instrument, it is capable of a variety of analyses including analyses of BAC, ADC, peak count and motifs. By setting the conditions in advance, OK/NG judgment can be performed automatically.


Display available in 20 languages Multi-language support available worldwide


20 European and Asian languages including English, German and French are provided as standard. Display language can be easily and quickly changed by menu options.
