Accretech

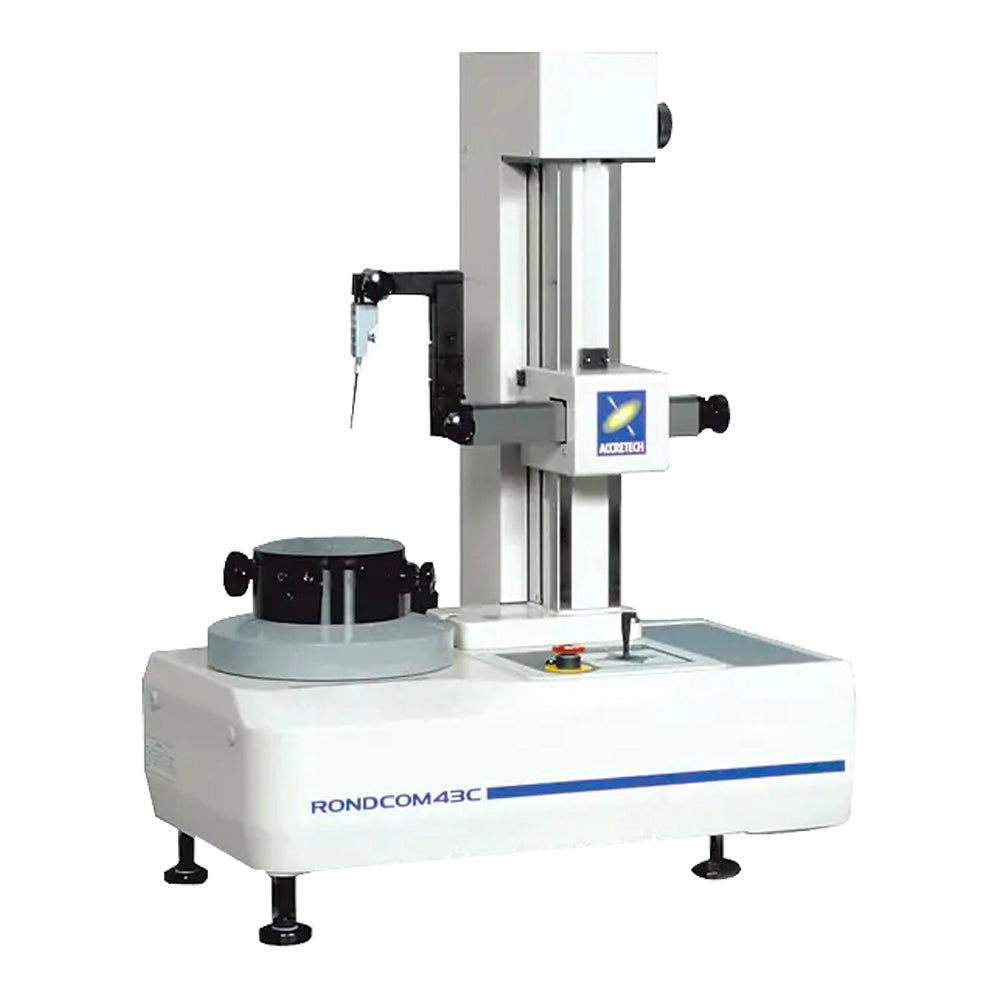

RONDCOM 43 Mid-range model with high measurement precision
SKU:Code: RONDCOM 43
Item priced on application.
Request a Price
Mid-range model with high measurement precision
Software-supported alignment of the workpiece
Measurement range up to 250 mm outer diameter
Rotation precision: (0.02+6H/10,000) µm
Z-axis precision: 0.25 µm/100 mm
The UKs Leading Metrology Distributor
Trusted by the biggest companies in the UK
Need more information? Ask a question or contact us.
Specification
Specification
- remarks Max. workpiece ø 250 mm
description
description
RONDCOM 43 is suitable for high precision form measurements for manual workpiece alignment and semi-automatic measurement procedures. Polar and linear parameters, for example cylinder profiles, straightness, concentricity, etc. can be measured.
- High quality axes with air bearing equipped table-rotating instrument
- Measurement range and probing force can be adjusted
- Semi-automatic procedures
- CNC analysis with printout
- ACCTee measurement software with help functions for centralising and levelling
- Workpieces up to max. 15 kg
