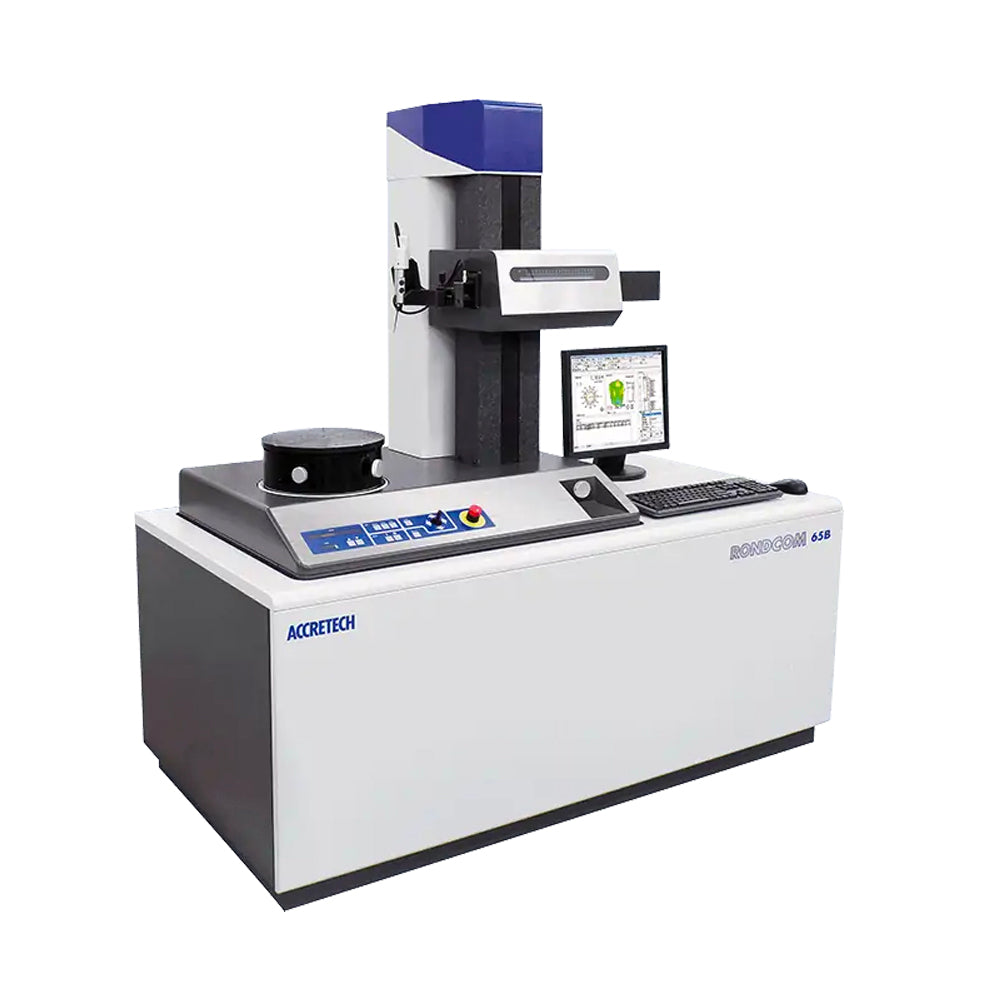

Accretech RONDCOM 65 Highest precision, top class roundness measuring instrument
SKU:Code: RONDCOM 65
Item priced on application.
Request a Price
Highest precision, top class roundness measuring instrument
Measurement range up to 420 mm diameter
Rotation precision: (0.01 +6H/10,000) µm
Z-axis precision: 0.05 µm/100 mm
The UKs Leading Metrology Distributor
Trusted by the biggest companies in the UK
Need more information? Ask a question or contact us.
Specification
Specification
- remarks Max. workpiece ø 420 mm
- brand Accretech
description
description
Optimal for cylindrical profile measurements of high precision automotive parts. Also suitable for high precision workpieces and meets calibration standards.
- Highest rotation precision worldwide
- Measurement range and probing force can be adjusted
- Higher throughput due to quick, automatic alignment in less than a minute
- Air bearing equipped high precision table-rotating instrument for wear-free run-out
- Precision of 10 nanometres with 60 to 100 kg load carrying capacity
- Thermally insulated, active anti-vibration table
