Accretech

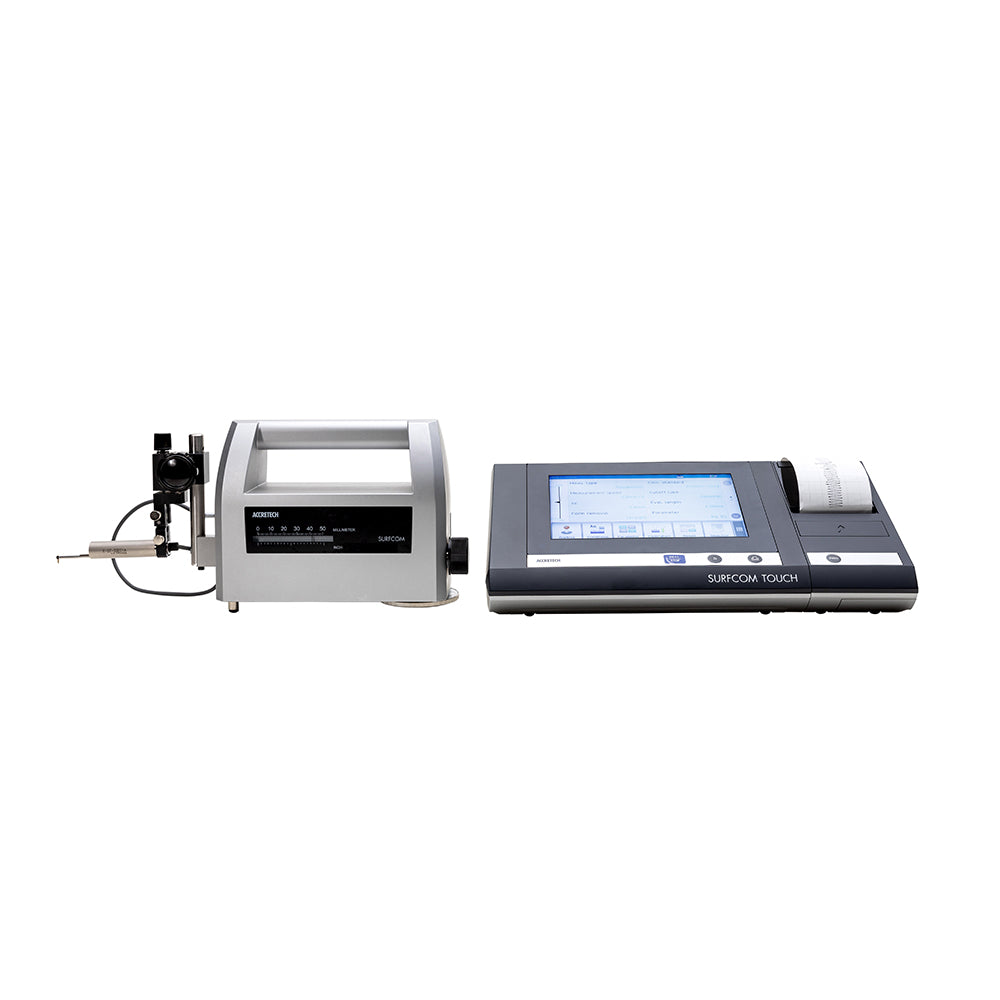

Surfcom Touch 50A Surface Roughness tester R2μm with Printer
SKU:Code: S-Tch50A
The UKs Leading Metrology Distributor
Trusted by the biggest companies in the UK
Need more information? Ask a question or contact us.
- type Standard
- display type 7-inch colour liquid crystal touch panel
- resolution 0.0001 μm/±40 μm. 0.00125 μm/±500 μm
- style Skidless/ Skid (optional)
Extended Z-axis measurement range from 800 to 1,000 μm (25% increase)
The high performing pick-up with a measurement range of 1,000 μm and a Z-axis minimum resolution of 0,0001 μm allows for wide-range and high resolution skidless measurement. No need to consider measurement range. In addition to fl at surfaces, the roughness or waviness on undulating surfaces such as stepped or round surfaces can be evaluated with one trace. Leveling and zeroing before measurement can also be performed easily.
A compact high performing tracing driver
The portable compact size tracing driver for easy installment has an X-axis measurement range of 50 mm, a straightness accuracy of 0.3 μm/50 mm, and a detector vertical movement volume of 50 mm. Safe positioning at a constant speed is possible by operating the tracing driver in the X direction from the screen of the amplifier.
A handy-type driver can be attached
SURFCOM TOUCH 50 can be connected with a handy-type tracing driver*.
Measurement on vertical or ceiling surface and in narrow areas can be performed.
