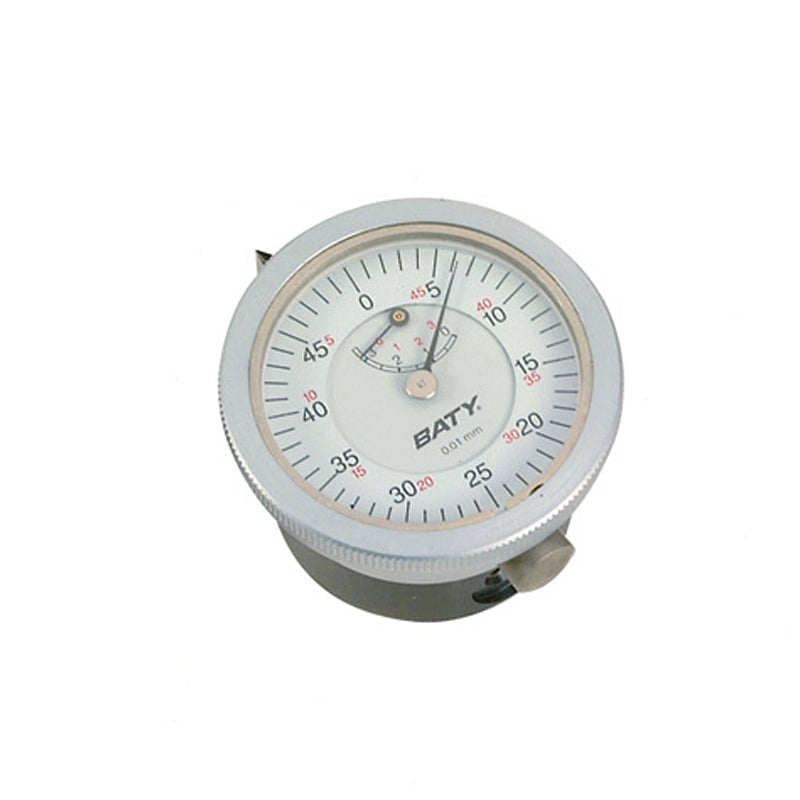

Baty 2552-D Crankshaft Indicator Only, Graduation 0.0005"
SKU:Code: 2552-D
Sale
Sold out
Regular price
£152.55
Save: 10%
Sold out
Sale price
£152.55
Regular price
£169.50
Excl. VAT
If an engine crankshaft is not correctly aligned in its bearings, it distorts and becomes subject to damaging stresses. Any misalignment causes a change in the distance between webs when the shaft revolves and can be detected by placing an indicating device between the webs.
The UKs Leading Metrology Distributor
Trusted by the biggest companies in the UK
Need more information? Ask a question or contact us.
Specification
Specification
- type Cranshaft
- range 2.1/4-20"
- display type Non-Digital
- graduations 0.0005"
- measuring units Imperial
- brand Baty
description
description
The Baty crankshaft alignment gauge is designed for this purpose. Its contacts are pointed and fit into dimples in the webs. A heavy spring pressure ensures that the gauge is retained but is free to turn in relation to the crankshaft and an adjustable balance weight restrains the gauge against rotation of the crankshaft so that the dial always faces the inspector, The gauge covers web-to-web distances of 57-500mm (21⁄4"-20"), Set supplied in a wooden case, The special dial indicators may be purchased separately
