Baty

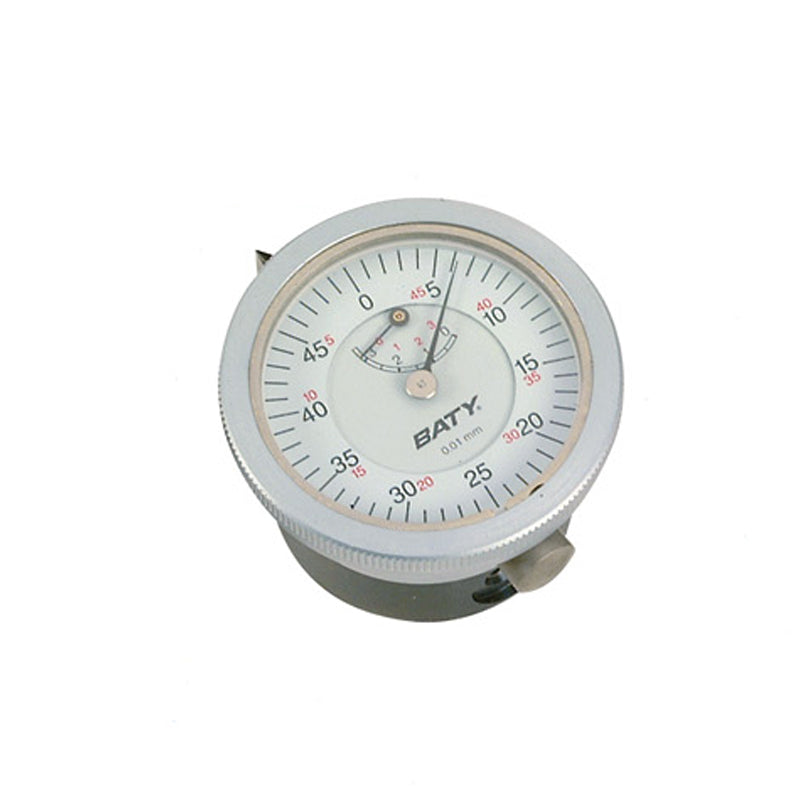

2553-D Crankshaft Indicator Only, Graduation 0.01mm

SKU:Code: 2553-D

Sale Sold out Regular price £148.05
Save: 10% Sold out Sale price £148.05 Regular price £164.50
Excl. VAT
If an engine crankshaft is not correctly aligned in its bearings, it distorts and becomes subject to damaging stresses. Any misalignment causes a change in the distance between webs when the shaft revolves and can be detected by placing an indicating device between the webs.
  • The UKs Leading Metrology Distributor

  • Trusted by the biggest companies in the UK

  • Need more information? Ask a question or contact us.

View full details
Specification
  • type Cranshaft
  • range 57-500mm
  • display type Non-Digital
  • graduations 0.01mm
  • measuring units Metric
description

The Baty crankshaft alignment gauge is designed for this purpose. Its contacts are pointed and fit into dimples in the webs. A heavy spring pressure ensures that the gauge is retained but is free to turn in relation to the crankshaft and an adjustable balance weight restrains the gauge against rotation of the crankshaft so that the dial always faces the inspector, The gauge covers web-to-web distances of 57-500mm (21⁄4"-20"), Set supplied in a wooden case, The special dial indicators may be purchased separately
