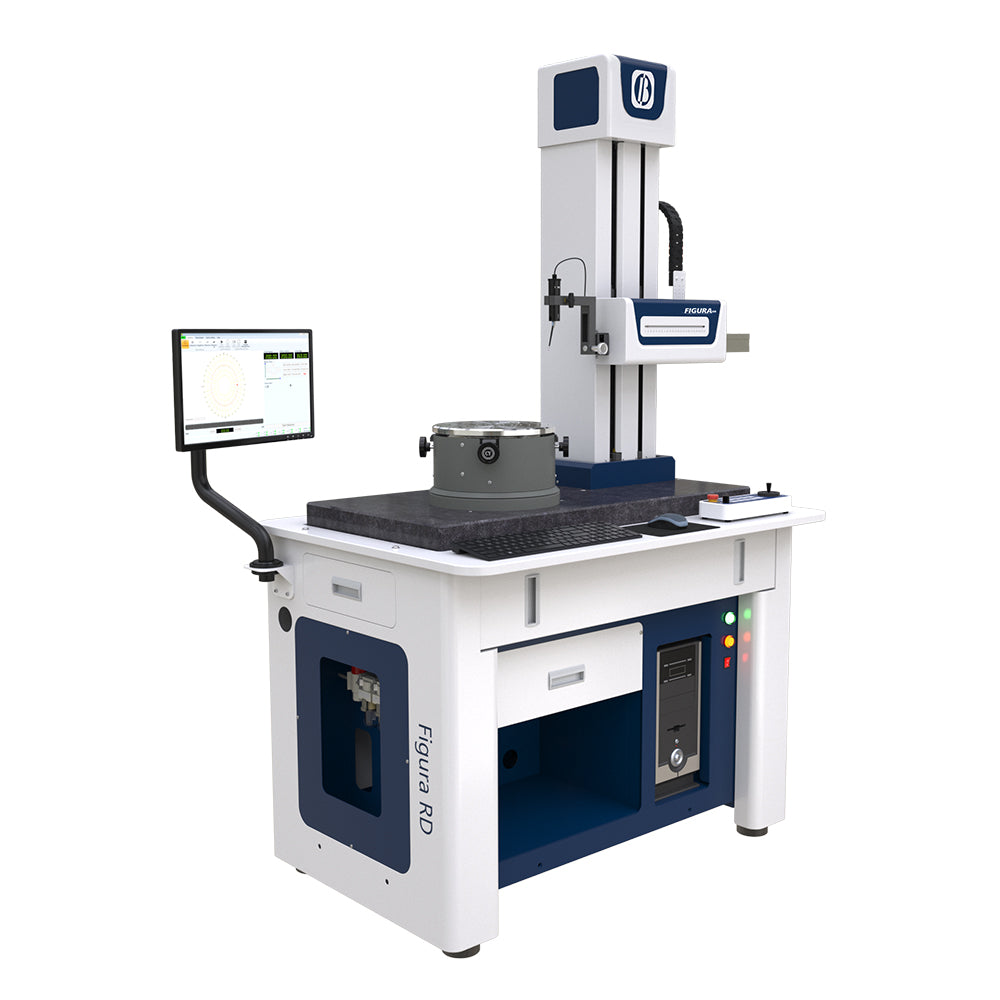

Bowers Figura RD Roundness Measurement Machine

Code: Figura RD

Item priced on application.

Request a Price

Add to Compare

The Figura RD is the range’s roundness measurement machine, capable of high accuracy measurements including: roundness, cylindricity, straightness, concentricity, flatness, full runout, parallelism and perpendicularity. Available in a range of sizes and configurations to meet a variety of applications and customer requirements, the Figura RD offers high precision roundness measurement with stable and reliable performance. User friendly, intuitive software enables users to quickly analyse parts and report results.

  • The UKs Leading Metrology Distributor

  • Trusted by the biggest companies in the UK

  • Need more information? Ask a question or contact us.
View full details
Specification
  • brand Bowers
description

The Figura RD is capable of high accuracy measurements including roundness, cylindricity, straightness, concentricity, flatness, straightness, full runout, parallelism and perpendicularity.

HIGH ACCURACY, PRECISION MEASUREMENT
Easily operate the machine from the control unit by moving the detector along the Z and R axis. All operations indicated with clear and intuitive icons including approaching and retracting the probe. Mounting with a high precision detector and ruby stylus
Adjustable stylus measuring angle enables matching of differently shaped and differently positioned parts. Stylus arm length can be customised for different applications
Fully automatic centering and levelling. Eccentricity elimination function to improve accuracy and keep the probe deflection within an optimum range
