Specification
Specification
- type Standard
- range 12.5-16mm
- display type Non-Digital
- graduations 0.002mm
- max measuring depth 62mm
- measuring units Metric
- remarks 3-Point Contact
- measuring face Tungsten Carbide
- with rings Yes
- size rings included 12.50mm
- blind bore measurement Yes
description
description

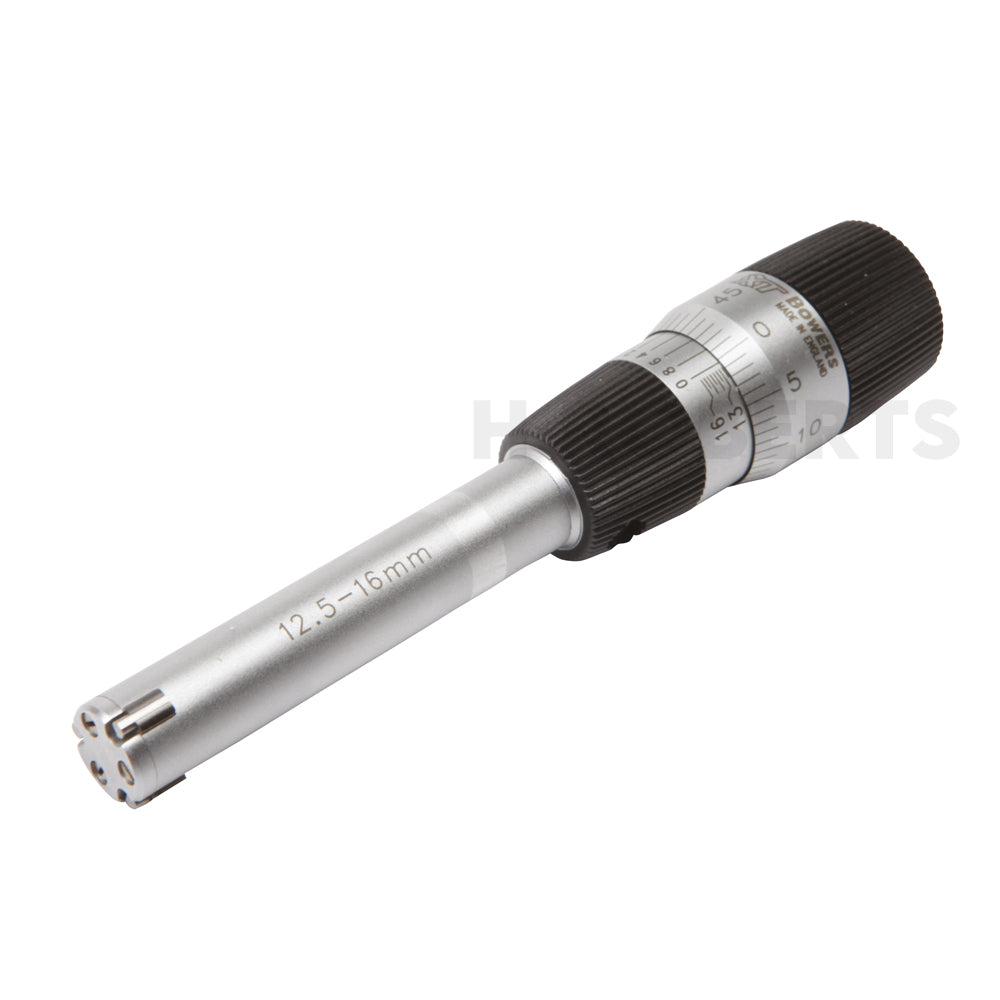

Bowers XT Analogue Bore Gauges are an economical solution to accurate shop-floor bore measurement. The extended mechanical travel of these advanced three point gauges ensures that exchanging measuring anvils is now unnecessary. Rugged construction and easy read scale, ensure both accuracy and ease of use. XT measuring heads and setting rings are supplied with UKAS certification. Extensions available above 6mm for deep hole measurement, Ratchet stop to ensure consistent measurement. Serial number on all gauges, Bore gauges manufactured according to DIN 863, part 4, Supplied in fitted case.
