Bowers

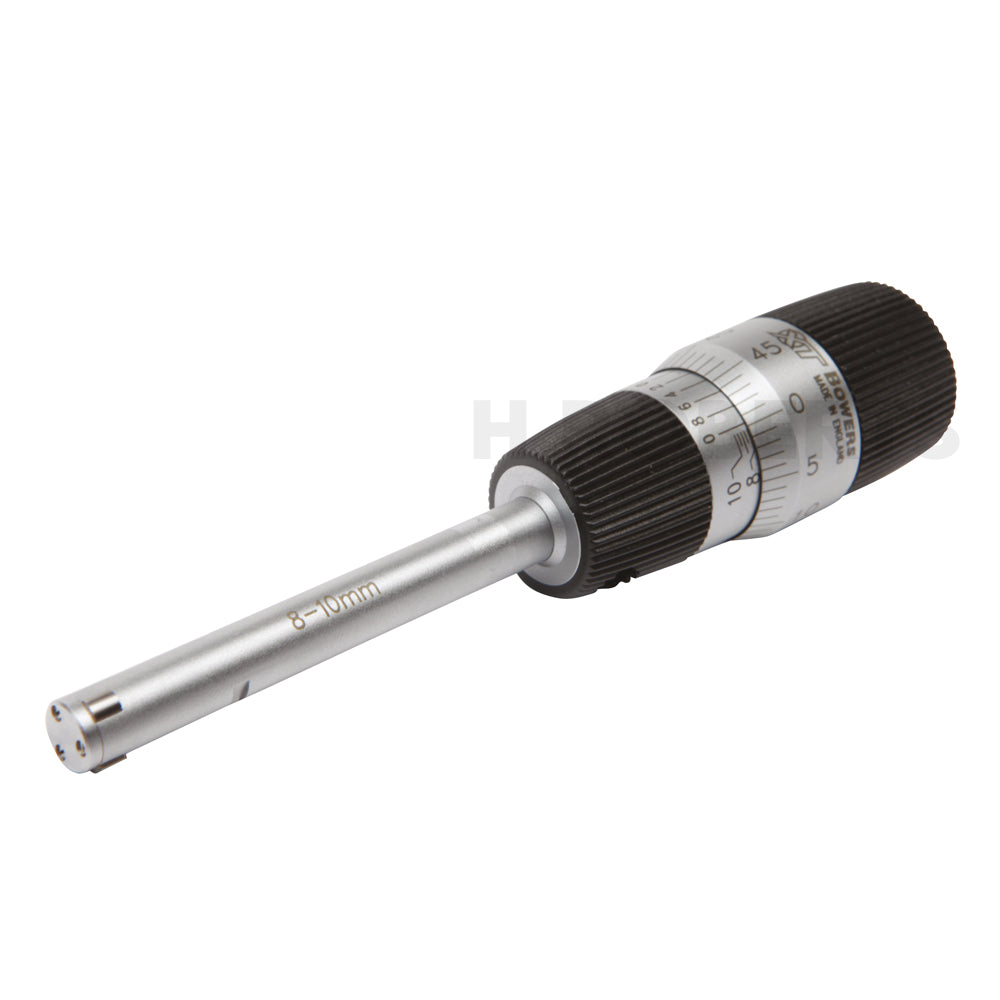

MXTA8W Analogue Bore Gauge, Range 8-10mm, Graduation 0.002mm, 3-Point Contact

SKU:Code: MXTA8W

Sale Sold out Regular price £229.50
Save: 15% Sold out Sale price £229.50 Regular price £270.00
Excl. VAT
Analogue bore gauges are precision measurement instruments used to measure the inside diameter of a hole, cylinder, or other internal surfaces with high accuracy
  • The UKs Leading Metrology Distributor

  • Trusted by the biggest companies in the UK

  • Need more information? Ask a question or contact us.

View full details
Specification
  • type Standard
  • range 8-10mm
  • display type Non-Digital
  • graduations 0.002mm
  • max measuring depth 58mm
  • measuring units Metric
  • remarks 3-Point Contact
  • measuring face Hardened Steel
  • with rings No
  • blind bore measurement No
description

Bowers XT Analogue Bore Gauges are an economical solution to accurate shop-floor bore measurement. The extended mechanical travel of these advanced three point gauges ensures that exchanging measuring anvils is now unnecessary. Rugged construction and easy read scale, ensure both accuracy and ease of use. XT measuring heads are supplied with UKAS certification. Extensions available above 6mm for deep hole measurement, Ratchet stop to ensure consistent measurements. Serial number on all gauges, Bore gauges manufactured according to DIN 863, part 4, Supplied in fitted case.
