Bowers

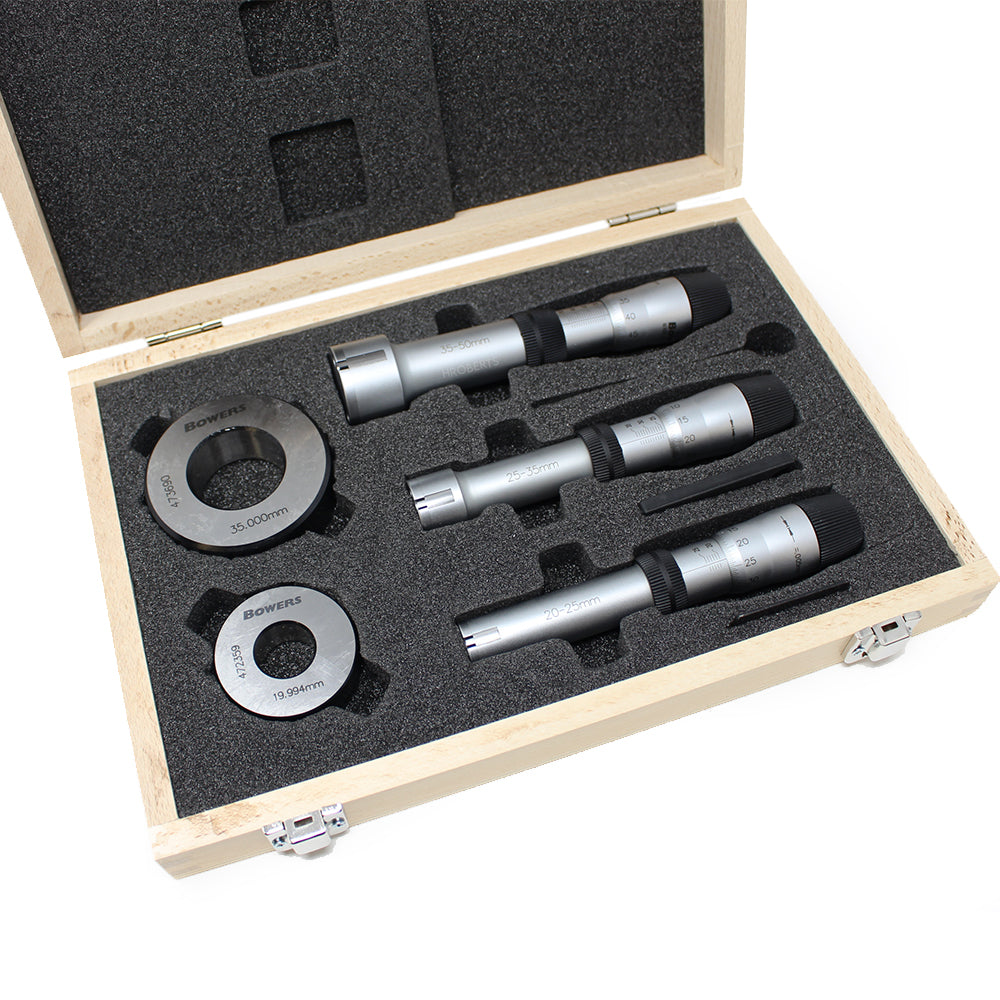

SXTA5M Analogue Bore Gauge Set, Range 20-50mm, Graduation 0.005mm, 3-Point Contact, Supplied with Setting Rings and Ukas Certificates
SKU:Code: SXTA5M
The UKs Leading Metrology Distributor
Trusted by the biggest companies in the UK
Need more information? Ask a question or contact us.
- type Standard
- range 20-50mm
- display type Non-Digital
- graduations 0.005mm
- max measuring depth 66mm / 80mm
- measuring units Metric
- remarks 3-Point Contact
- measuring face Tungsten Carbide
- with rings Yes
- size rings included 20.00mm / 35.00mm
- blind bore measurement Yes

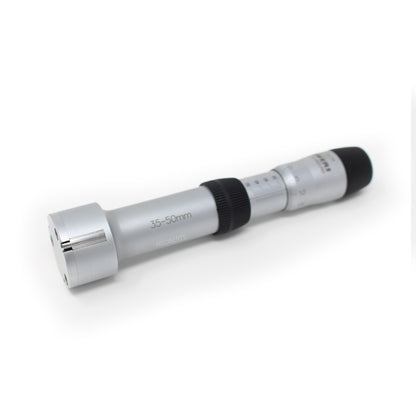

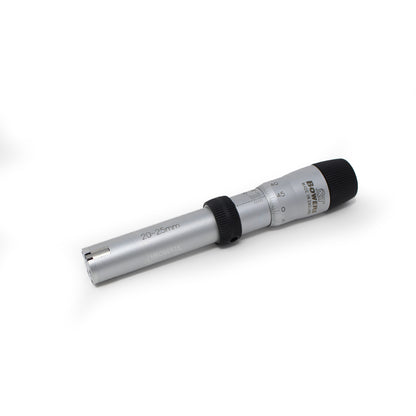

Bowers XT Analogue Bore Gauges are an economical solution to accurate shop-floor bore measurement. The extended mechanical travel of these advanced three point gauges ensures that exchanging measuring anvils is now unnecessary. Rugged construction and easy read scale, ensure both accuracy and ease of use. XT measuring heads and setting rings are supplied with UKAS certification. Extensions available above 6mm for deep hole measurement, Ratchet stop to ensure consistent measurement. Serial number on all gauges, Bore gauges manufactured according to DIN 863, part 4, Supplied in fitted case.
