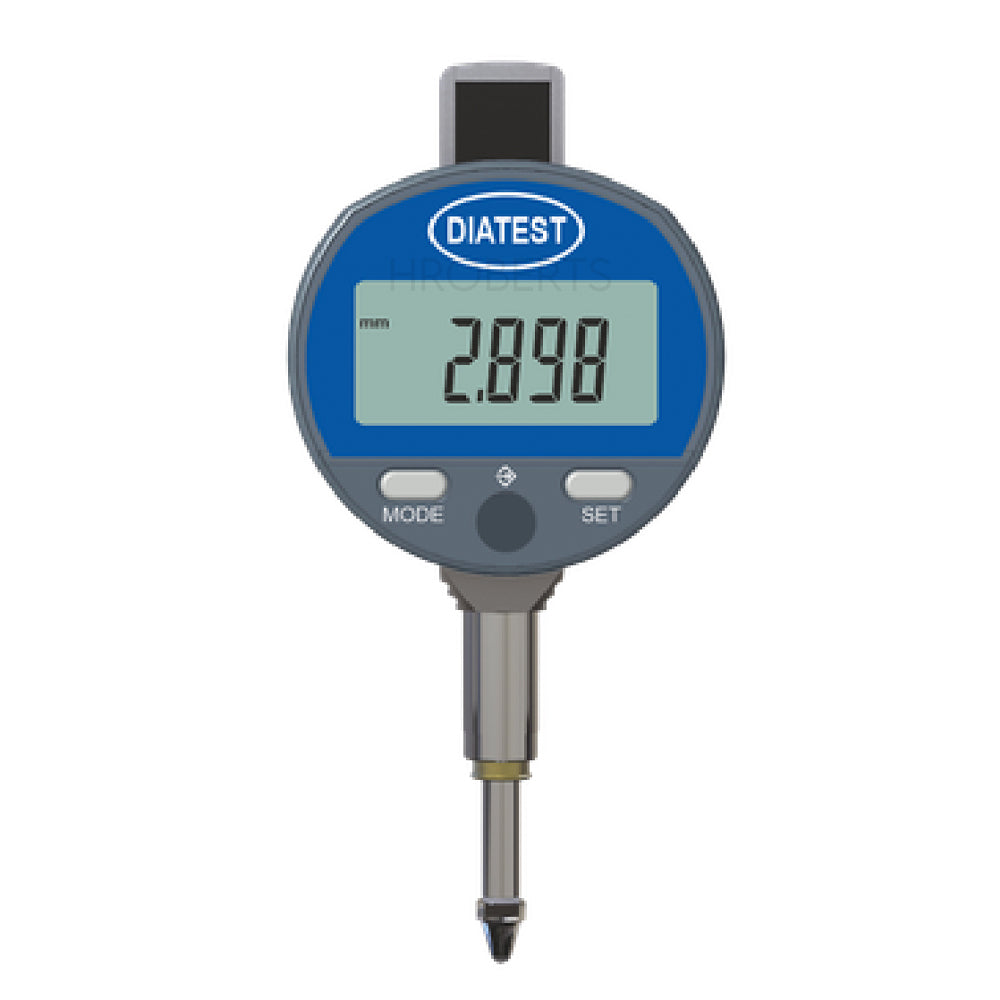

Diatest MDU-S125-1 Small digital indicator Ø 44mm, Range 0.5" / 12.5mm, Resolution 0.00005" / 0.001mm, 0.8-0.9N Pressure
SKU:Code: MDU-S125-1
The UKs Leading Metrology Distributor
Trusted by the biggest companies in the UK
Need more information? Ask a question or contact us.
- brand Diatest
- range 0.5" / 12.7mm
- display type Digital
- resolution 0.001mm / 0.00005"
- data output Yes
- measuring force 0.8-0.9N
- measuring units Imperial / Metric
- stem dia 8mm
- diameter 44mm
The MDU‑S digital indicator is a compact, high‑precision measuring unit featuring a slim 44 mm external diameter, making it ideal for applications where space is limited or integration into fixtures is required.
It offers a measuring range of 12.5 mm with a resolution of 0.001 mm and delivers a repeatability of 0.002 mm, ensuring reliable and consistent measurement results. The measuring pressure is maintained between 0.5 and 0.9 N, providing stable contact without influencing the workpiece.
The MDU‑S supports both cable‑based and wireless data transmission through its power interface, enabling seamless connection to the DIAWIRELESS system for efficient digital measurement workflows. This allows measurement data to be captured, transferred, and utilised within industrial networks with ease.
All MDU‑S indicators are supplied with a printed test certificate, ensuring full traceability and verification of performance.
