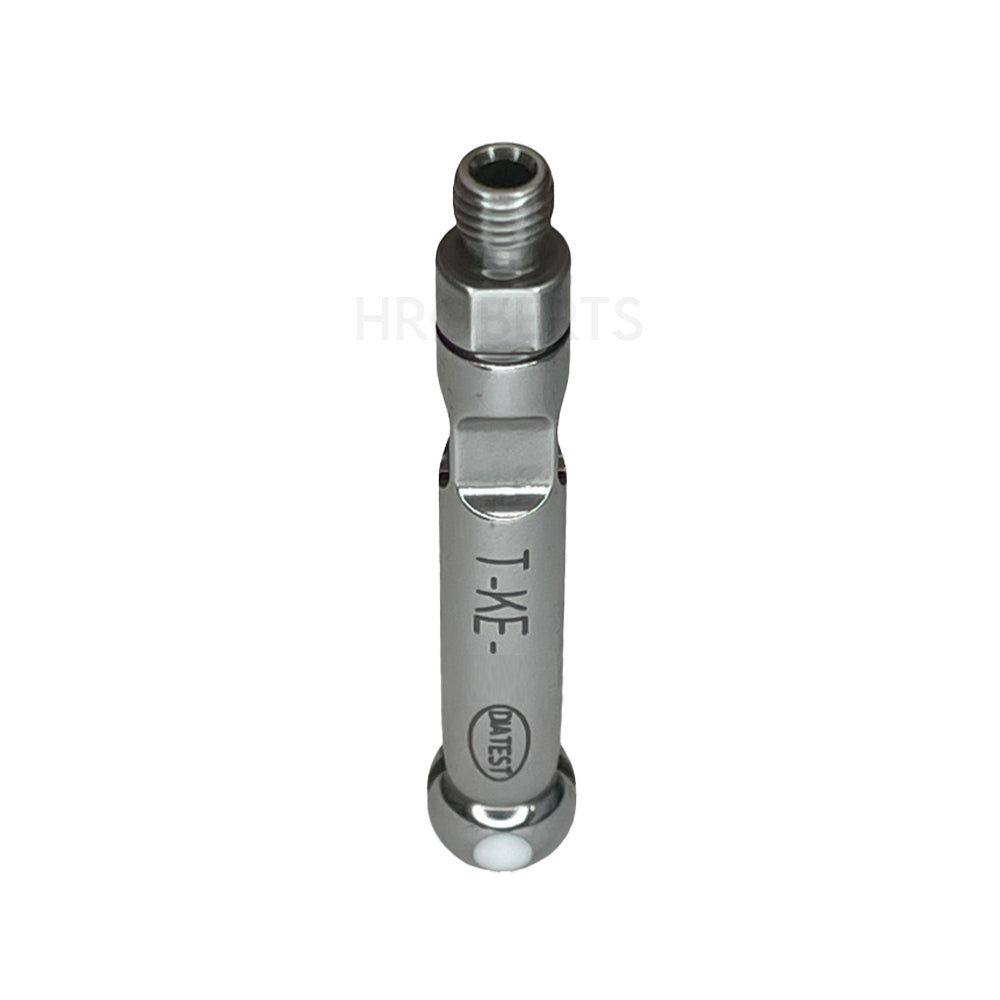

Diatest T-KE-037 Split Ball Probe, 0.6720 - 0.7300", Standard Probe ceramic inserted
SKU:Code: T-KE-037
The UKs Leading Metrology Distributor
Trusted by the biggest companies in the UK
Need more information? Ask a question or contact us.
- brand Diatest
- type Split Ball Probe
- range 0.6720-0.7300"
- accuracy Manual gauging ≈ 1 μm
- material ceramic inserted
- measuring units Imperial
- standard needle N3-310
Diatest Split Ball Probe is a high-precision bore gauging probe designed for accurate internal diameter measurement in quality control, inspection, and production environments.
This probe is ideal for medium-sized bores where repeatable, reliable results are essential. As a standard split-ball probe, it self-centres in the bore for fast, consistent comparative gauging.
A carbide insert contact, offers excellent wear resistance and long service life, making it especially suitable for frequent use and harder workpiece materials.
Key Features:
- Standard split-ball design for fast, repeatable bore gauging
- Ceramic insert contacts for excellant durability and wear resistance
- Suitable for manual gauging or use in a stand/fixture
- Ideal for workshop inspection, production QC, and metrology applications
Accuracy & Repeatability: Split-ball probes are known for excellent repeatability, circa 1 μm in manual gauging, and even better when used in a dedicated gauging stand.
