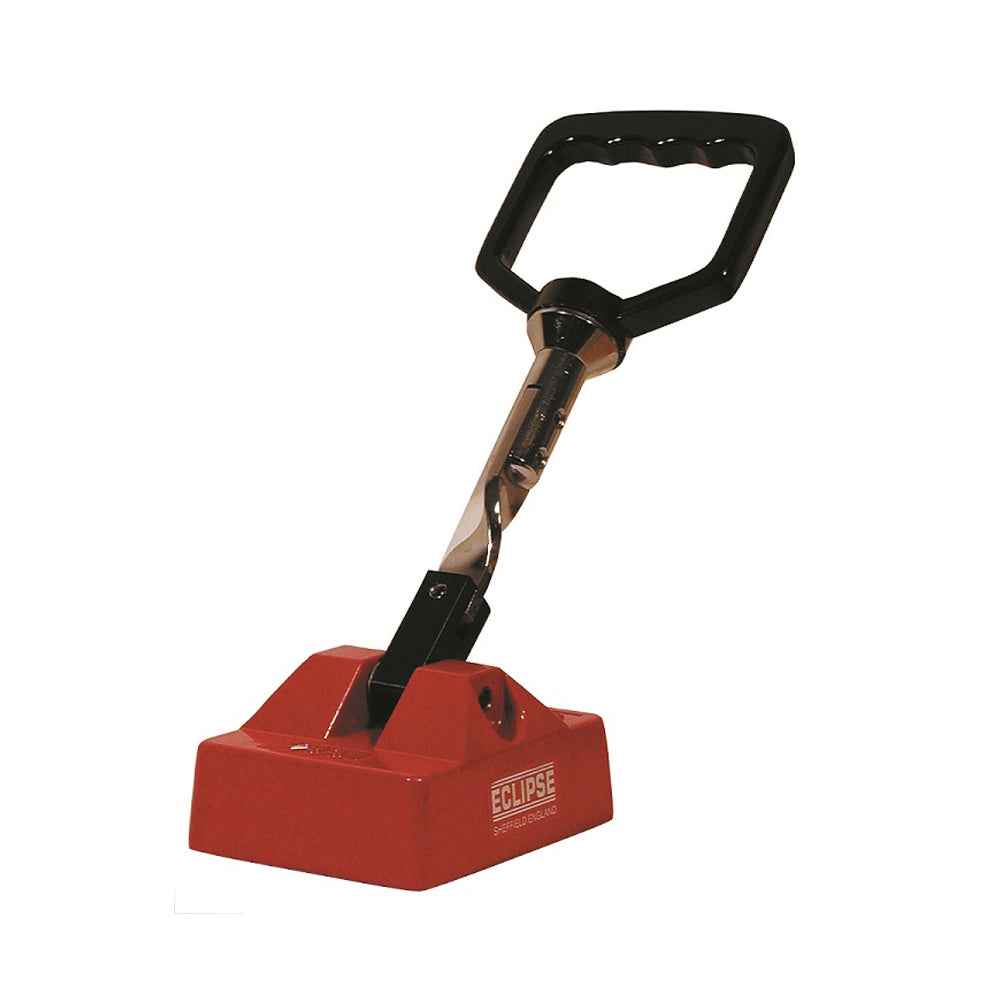

Eclipse E964 Steel Plate Drag 118x98x38mm
SKU:Code: E964
The UKs Leading Metrology Distributor
Trusted by the biggest companies in the UK
Need more information? Ask a question or contact us.
- brand Eclipse
- type Welding
- style Magnetic Welding Aids
Eclipse Magnetics Magnetic Steel Plate Drag is engineered for safe, efficient removal and transport of ferrous steel sheets and plates. Whether working with laser-cut, flame-cut or plasma-cut segments, this drag magnet offers a reliable grip and fast release mechanism, making it an essential tool for plate handling in fabrication, plate shops, warehouses or processing environments.
Featuring permanent ferrite magnets, a multiple-pole clamping face for maximum adhesion, and a quick-release lever to disengage loads swiftly, this unit delivers hands-free operation and improved productivity. With its high holding force and drag capability, the Steel Plate Drag streamlines workflows and reduces manual plate handling risks.
Key Features
- Designed for removal and transport of ferrous steel plates and sheets
Typical Applications
- Extraction of plates and parts from laser, flame or plasma cutting machines
Technical Data
| Product Number | Length (mm) | Height (mm) | Width (mm) | Weight (kg) | Pull Force (kg) | Drag Force (kg) |
|---|---|---|---|---|---|---|
| E964 | 118 | 98 | 38 | 2.8 | 170 | 50 |
