Eclipse

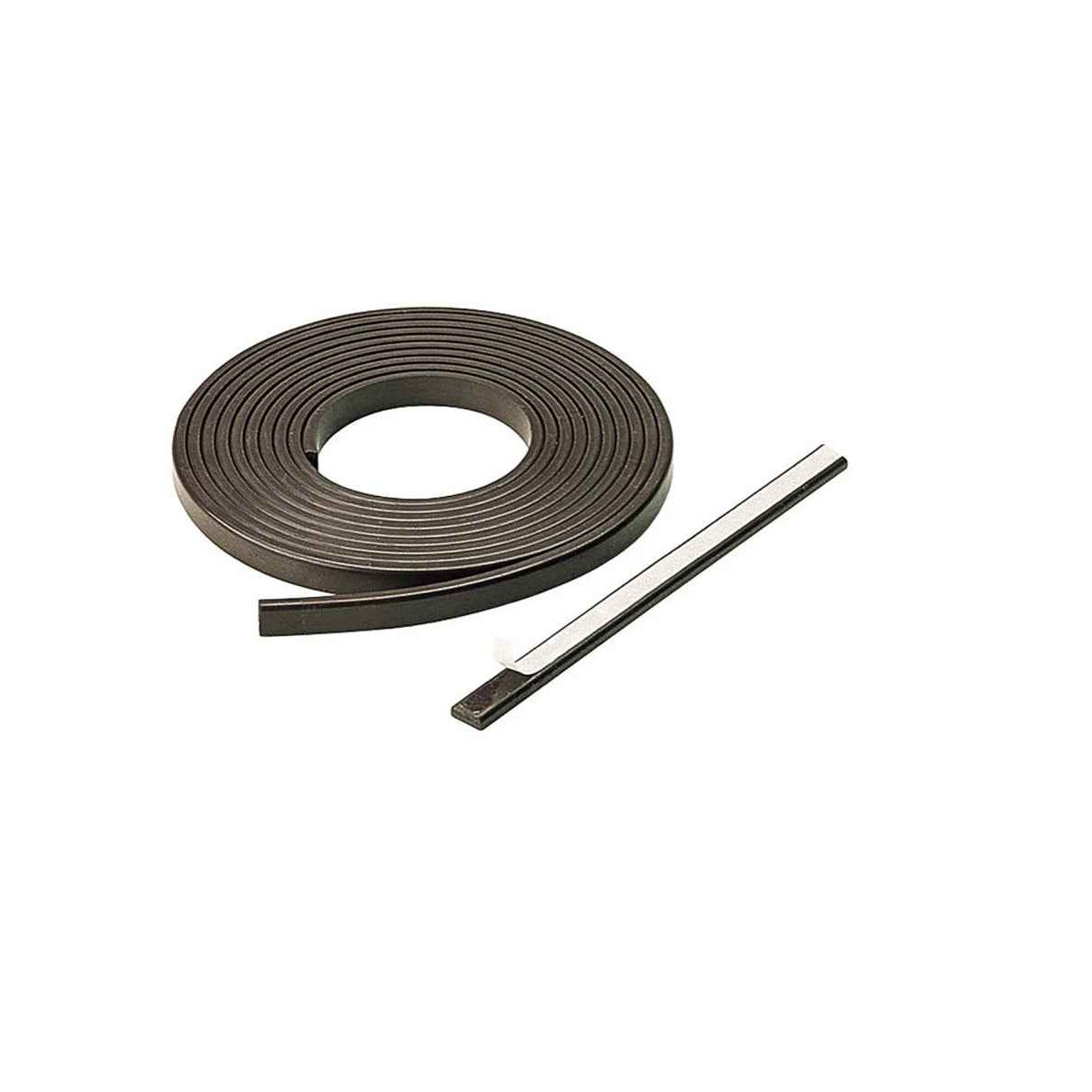

Eclipse EM888-R Magnetic Strip Adh.Bkd 9.5x3.6x150mm Pack of 2

Code: EM888-R

Sale Sold out £2.00
Sold out £2.00 £2.00
Excl. VAT
The EM-series magnetic extrusion from Eclipse Magnetics offers a robust magnetic solution formed from strontium ferrite within a thermo­plastic binder, extruded into a profile and magnetised on one face. Ideal for applications such as signage retention or enclosure sealing, this flexible magnetic strip provides reliable holding force (up to 65 g/cm²) and can self-mate for secure attachment. With a maximum operating temperature of +80 °C, it delivers performance and flexibility in a compact form.

Request a Quote

Add to Compare

  • The UKs Leading Metrology Distributor

  • Trusted by the biggest companies in the UK

  • Need more information? Ask a question or contact us.
View full details
Questions & Answers loading...
Specification
  • brand Eclipse
  • type Display
  • style Magnetic Extrusion
description

The EM-series magnetic extrusion from Eclipse Magnetics offers a robust magnetic solution formed from strontium ferrite within a thermo­plastic binder, extruded into a profile and magnetised on one face. Ideal for applications such as signage retention or enclosure sealing, this flexible magnetic strip provides reliable holding force (up to 65 g/cm²) and can self-mate for secure attachment. With a maximum operating temperature of +80 °C, it delivers performance and flexibility in a compact form.

Key Features

  • Strontium ferrite magnetic powder in thermo-plastic binder for consistent magnetic performance.
  • Magnetised multipole on one face only — one active face that can mate against itself or ferrous material.
  • Pull force rating of up to 65 g per square centimetre in direct contact.
  • Maximum continuous operating temperature +80 °C (176 °F) before binder softening risk.
  • Available variants: adhesive-backed short length (EM888-R) or plain finish longer length (EM880-R) for flexible installation.
