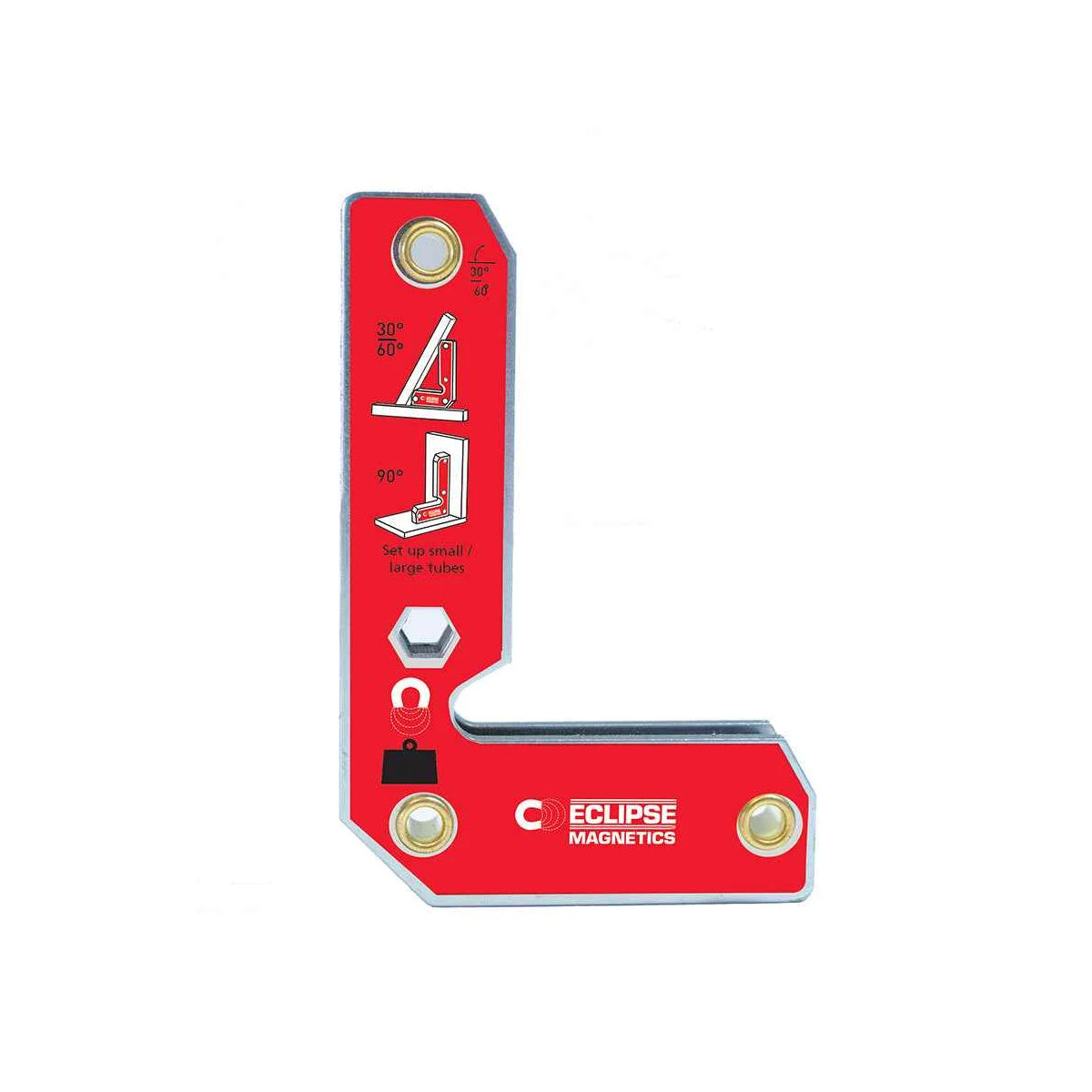

Eclipse IOWCL 90° Inside/Outside Clamp Large

The Eclipse Magnetics Inside & Outside Welding Clamps (IOWCL) deliver versatile, efficient clamping for internal or external angles of 30°, 60°, or 90° — ideal for tack welding and assembly of sheets, tubes, or flat stock. With independent magnetic faces for both the inside and outside surfaces of the joint, and linking holes for multi-unit setups, this clamp offers secure alignment and fast setup in fabrication environments. Available in a robust single-unit format (18 kg pull force), the IOWCL suits high-performance positioning of steel components.

Key Features
Independent inside and outside magnetic faces enable clamping both internal and external joint surfaces
Fixed angles: 30°, 60°, and 90° for versatile fixture and assembly configurations
Linking holes allow multiple clamps to be connected to form extended fixturing systems
Hex hole provided for tool-leverage break-away when separating the clamp from the workpiece
High holding capacity: up to 18 kg pull force for reliable positioning of steel components
Typical Applications
Setting up sheet metal, tubes, or angle steel for tack welding at internal/external angles
Fabricating frameworks where access is limited and dual face clamping is advantageous
Rapid repositioning during pre-weld alignment in production jigs and welding cells
Workshop and maintenance tasks requiring precise fixture hold-down where standard clamps cannot access both sides
