Haimer
Haimer 80.360.00.FHN - 3D Taster Dial IP67 Waterproof Universal 3D Sensor (0.01mm Accuracy)
SKU:Code: 80.360.00.FHN
The UKs Leading Metrology Distributor
Trusted by the biggest companies in the UK
Need more information? Ask a question or contact us.
- brand Haimer
- display type Dial

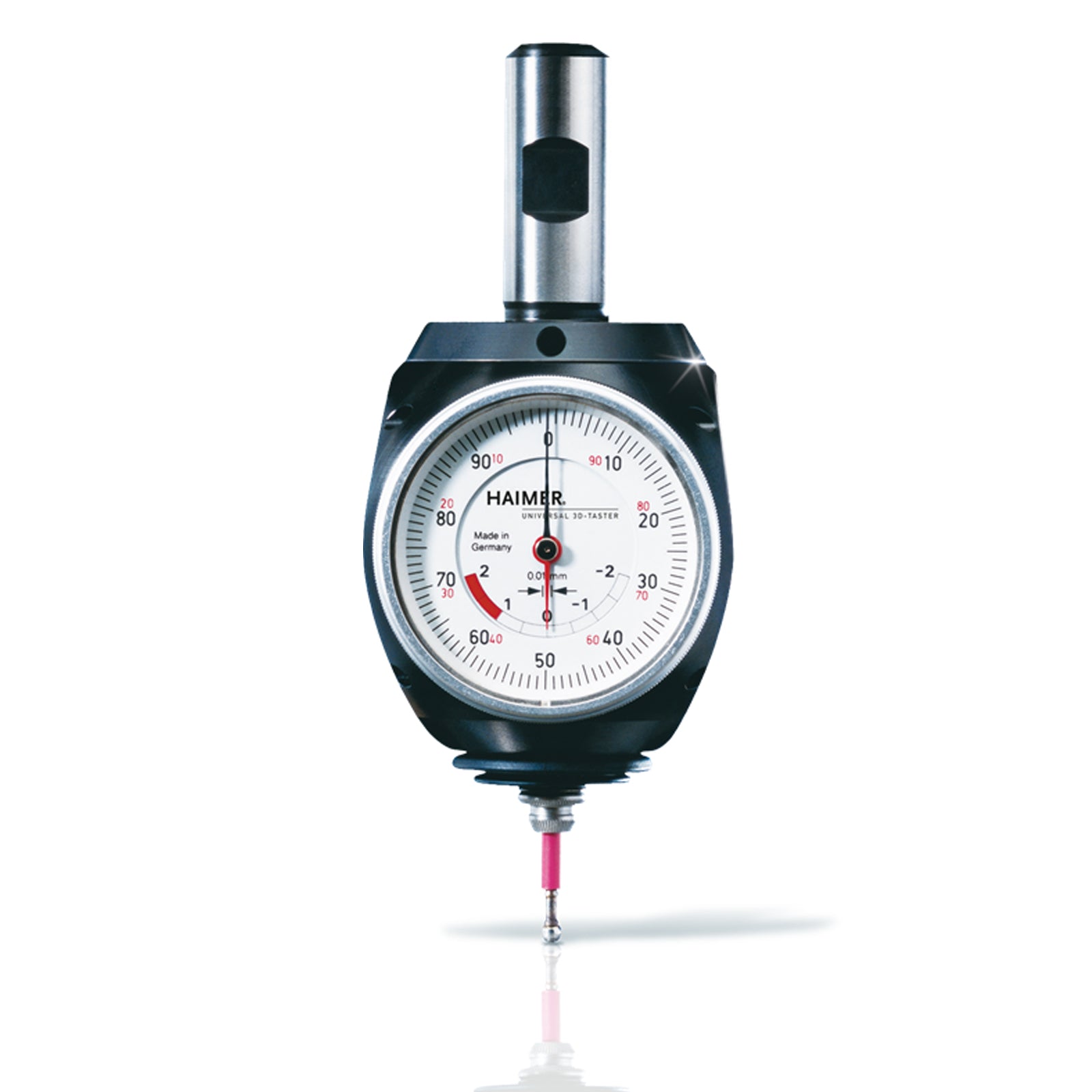

The Haimer Universal 3D sensor is a precisie and versatile measuring instrument for milling and EDM machines (insulated probe). Get exact positioning of the spindle axis on the edges of the workpiece. The IP67 rating means it can be used in conditions where dust and water are present.
• IP67 Waterproof.
• Smallest unit of measure: 0.01mm.
• For milling and EDM machines.
• Insulated probe.
• Clamped into a tool holder and inserted into a milling spindle.
• Find exact positioning of the spindle axis on the edges of the workpiece.
• Approach in any direction (X, Y, Z axis).
• Only the HAIMER 3D-Sensor allows for the edge to be found on the first attempt.
• No calculating o the probe's ball diameter is necessary - just zero it out!
• Replaceable probes give maximum flexibility.
