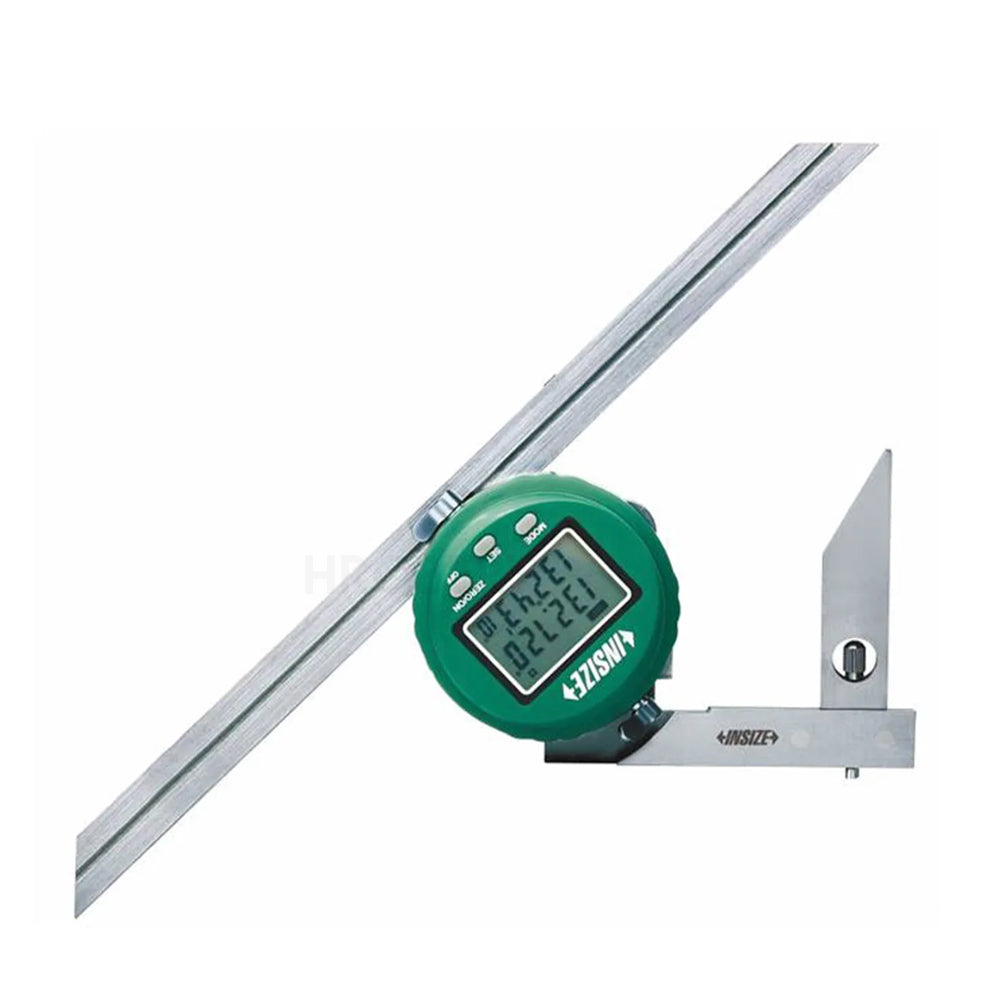

Insize 2172-360A - 0-360 Degree Digital Protractor - 10"/0.005 Degree Graduation
SKU:Code: 2172-360A
Sale
Sold out
Regular price
£360.82
Save: 10%
Sold out
Sale price
£360.82
Regular price
£400.91
Excl. VAT
The 2172 Insize Digital Protractor for angle measurements from 0-360°, can be used in conjunction with height gauge 1156, 1351 and 1250. Made of stainless steel for longer tool life and durability from machine shop wear. With optional data output.
The UKs Leading Metrology Distributor
Trusted by the biggest companies in the UK
Need more information? Ask a question or contact us.
Specification
Specification
- resolution 0.1°
- length Blade Length 300mm / 12"
- brand Insize
description
description
Features & Benefits
Display in degree (for example 32.655°) and degree/minute/second (for example 32°39'30").
SET button: preset the reading, change measuring direction.
MODE button: choose 0-90°, 0-180° or 0-360° display.
ZERO/ON/OFF button: zero and power on/off.
Battery CR2032, automatic power off.
Data output.
Supplied with square to set 90°.
Made of stainless steel.
Optional accessory: data output cable (code 7302-SPC3B).

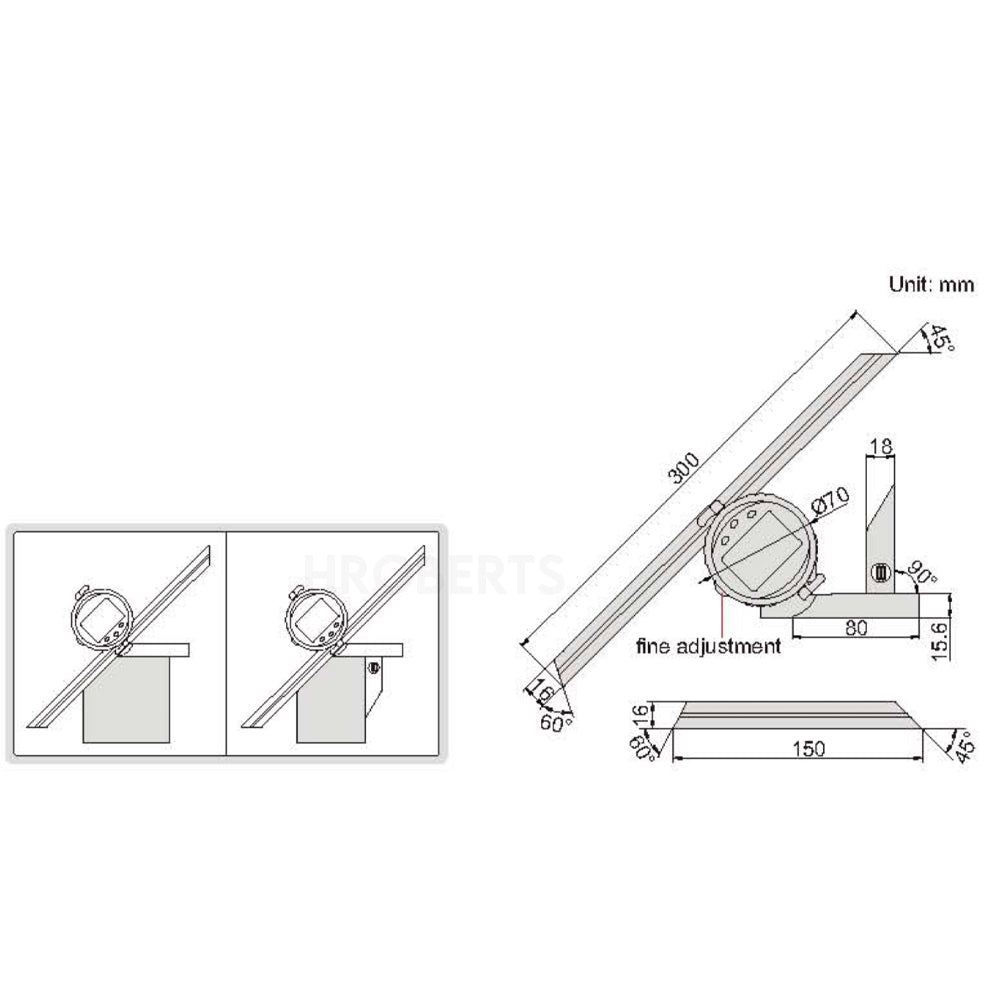

technical drawings
