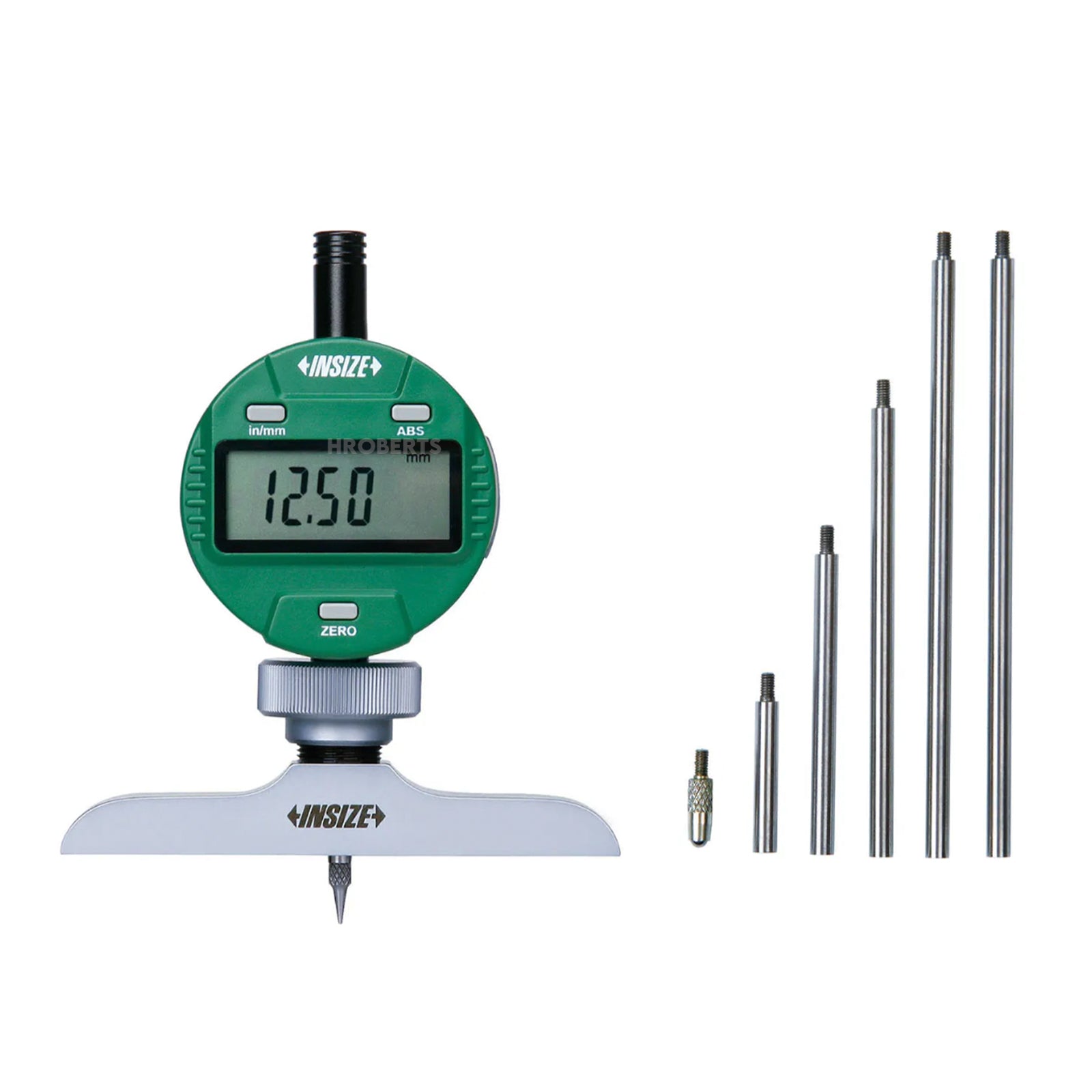

Insize 2141-202A Digital Dial Indicator Depth Gauge, Range 0-300mm / 0-12", Resolution 0.01mm / 0.0005", Length of Base 101mm
SKU:Code: 2141-202A
Sale
Sold out
Regular price
£177.37
Save: 10%
Sold out
Sale price
£177.37
Regular price
£197.08
Excl. VAT
The Insize digital depth gage has a range of 0-300mm/0-12" and base of 101x17mm. It is data output and has a stainless steel base.
The UKs Leading Metrology Distributor
Trusted by the biggest companies in the UK
Need more information? Ask a question or contact us.
Specification
Specification
- type Dial Depth Gauges
- range 0-300mm / 0-12"
- display type Digital
- measuring units Metric / Imperial
- brand Insize
description
description
- Digital Depth Gauges
- Range: 0-300mm/0-12""
- Accuracy: ±5μm
- Base:101x17mm
- Digital indicator stroke: 12.7mm/0.5"
- Digital indicator resolution: 0.01mm/0.0005"
- Button function: on/off, zero, mm/inch, ABS, data preset, change measuring direction
- CR2032 battery, automatic power off
- Data output
- Stainless steel base
- Extension Rods: 12.5mm (1pc), 25mm (1pc), 50mm (1pc), 75mm (1pc), 100mm (2pcs)
- Supplied with pointed tip and ball tip
