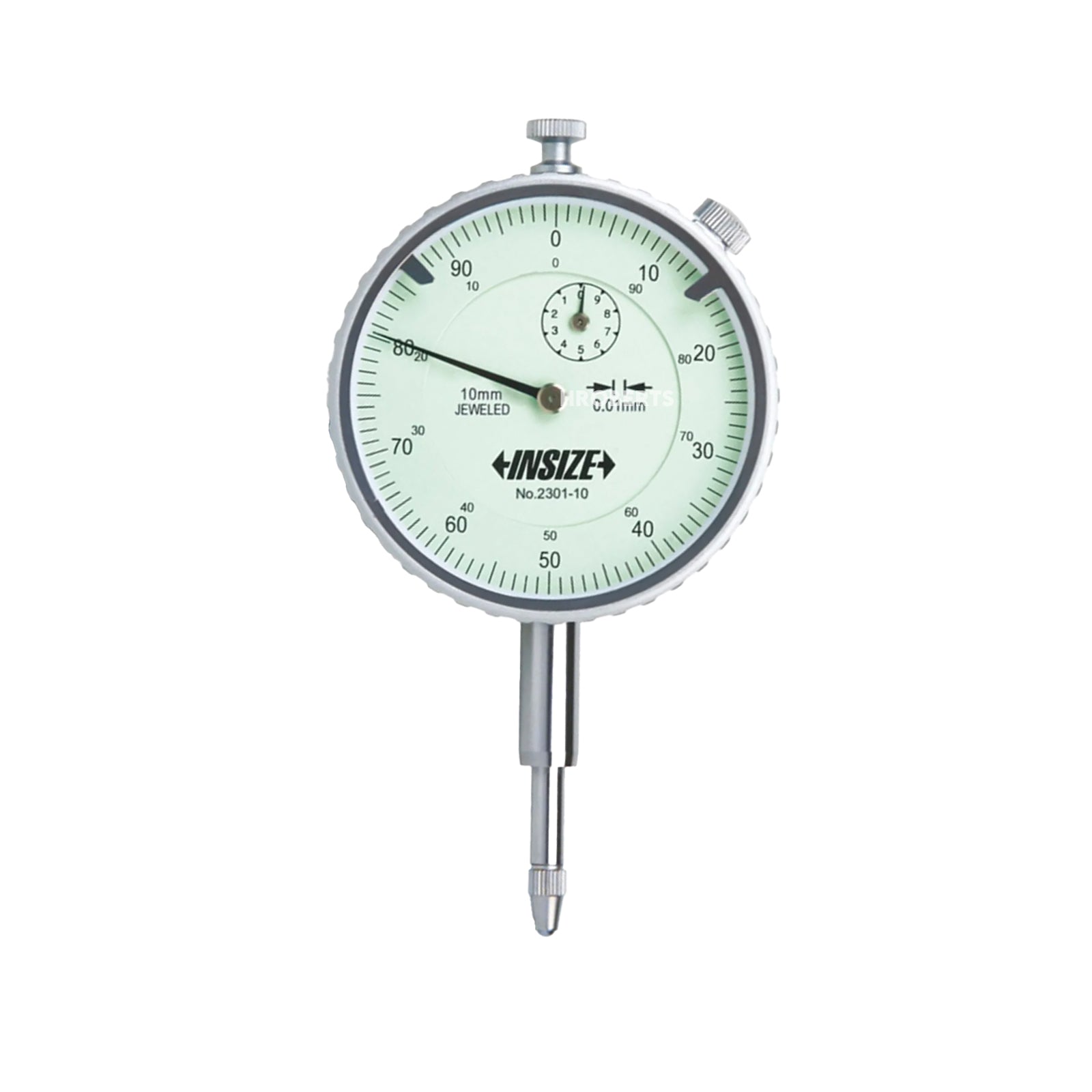

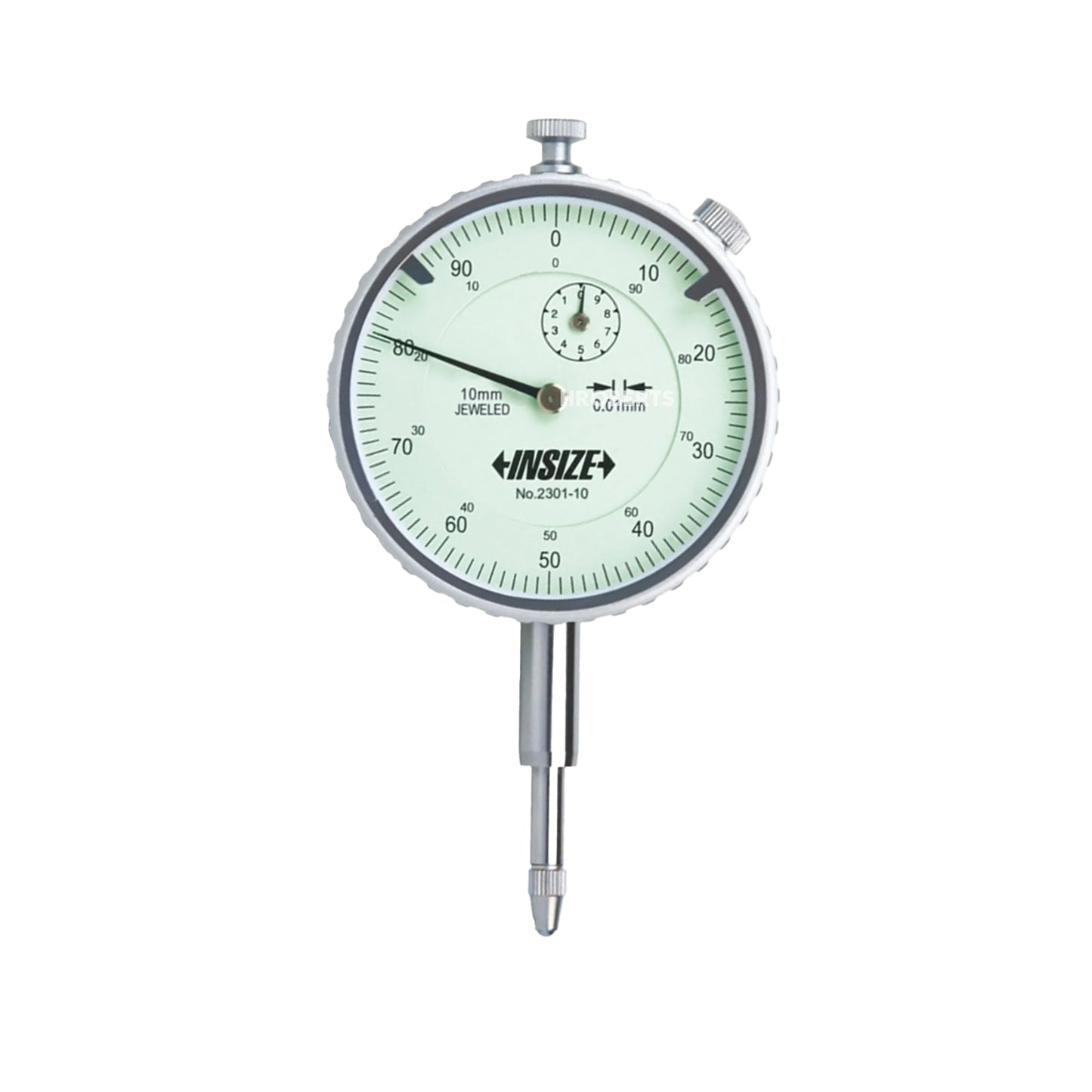

Insize 2301-10 Dial Indicator, Graduation 0.01mm, Range 10mm, Scale 0-100, Bezel Diameter 58mm, Lug Back (with Spare Flat Back)
SKU:Code: 2301-10
Sale
Sold out
Regular price
£22.85
Save: 10%
Sold out
Sale price
£22.85
Regular price
£25.39
Excl. VAT
The 2308 Dial Indicator for Basic measuring applications. Comes complete with adjustable limit pointers to set tollerance. Available with lug back style with spare flat back. Indicator Sizes range from 0-10mm with graduations of 0.01mm.
The UKs Leading Metrology Distributor
Trusted by the biggest companies in the UK
Need more information? Ask a question or contact us.
Specification
Specification
- type Dial Indicator
- range 10mm
- range rev 1mm
- display type Non-Digital
- graduations 0.01mm
- bezel dia 58mm
- measuring units Metric
- stem dia 8mm
- scale 0-100
- contact point thread M2.5 x 0.45
- back Centre Lug
- brand Insize
description
description
- Graduation 0.01mm.
- Range 10mm.
- Jeweled bearing.
- Supplied with limit hand and bezel clamp.
- Lug back with spare flat back.
