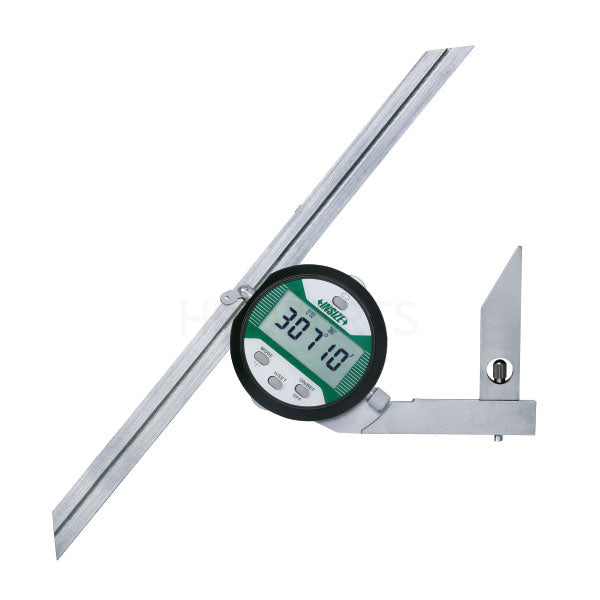

Insize 2771-360 Universal Digital Protractor, Range 360 Degrees, Blade Length 300mm / 12"
SKU:Code: 2771-360
The UKs Leading Metrology Distributor
Trusted by the biggest companies in the UK
Need more information? Ask a question or contact us.
- brand Insize
- resolution 0.01°
- length Blade Length 300mm / 12"
Equipped with a clear digital display and an absolute zero function, the Insize 2771-360 allows convenient angle measurement without the need to reset the zero position after battery replacement. The instrument offers selectable measuring ranges of 0-90°, 0-180° and 0-360°, alongside display rotation, data hold, supplementary angle measurement and fine adjustment for precise positioning.
Supplied with 150mm and 300mm measuring blades, the protractor provides versatility for measuring a wide range of components and angles. Its automatic power-off function helps conserve battery life, while the integrated data output enables connection to compatible measurement data collection systems.
Ideal for engineering workshops, toolrooms, manufacturing facilities and inspection departments, the Insize 2771-360 offers a dependable solution for accurate angular measurement and component inspection.
0-360° Measuring Range: Suitable for a wide variety of angular measurement applications.
High Resolution: 1'/0.01° resolution for precise angle readings.
Excellent Accuracy: ±5 arcminutes for reliable and repeatable measurements.
Stainless Steel Construction: Provides durability, corrosion resistance and long-lasting performance.
Absolute Zero Function: Retains the zero reference after battery replacement.
Selectable Display Ranges: Choose between 0-90°, 0-180° and 0-360°.
Fine Adjustment Mechanism: Enables controlled positioning for accurate measurement.
Digital Display Functions: Includes display rotation, data hold, zero setting and supplementary angle measurement.
Data Output: Allows connection to compatible data collection accessories.
