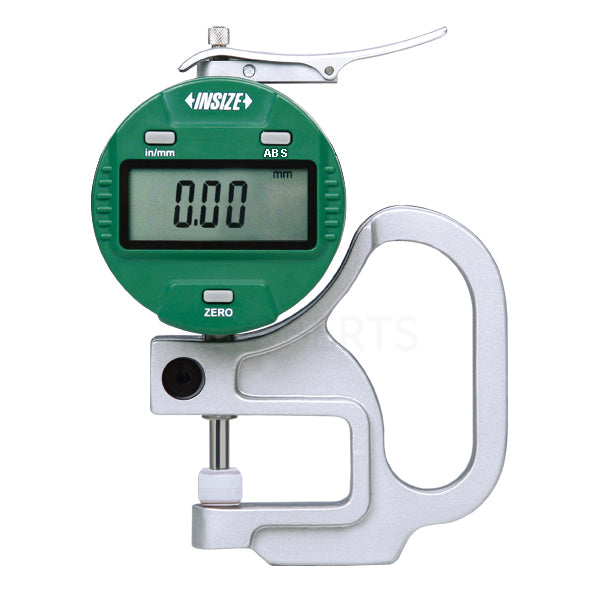

Insize 2871-10 Digimatic Digital Thickness Gauge, Range 0-10mm / 0-0.4", Resolution 0.01mm / 0.0005"

Code: 2871-10

Sale Sold out £111.66
Save: 15% Sold out £111.66 £131.37
Excl. VAT
The Insize 2871 Digital thickness gauge for measuring of thin componemts. The grIp handle and spring load plunger design, for efficient and repeatable measurements. With optional SPC cable data output, sizes range from 0-10mm (0.4”).

Request a Quote

Add to Compare

  • The UKs Leading Metrology Distributor

  • Trusted by the biggest companies in the UK

  • Need more information? Ask a question or contact us.
View full details
Questions & Answers loading...
Specification
  • brand Insize
  • type Dial Thickness Gauges
  • range 0-10mm / 0-0.4"
  • display type Digital
  • resolution 0.01mm / 0.0005"
  • accuracy ±0.02mm
  • bezel dia 58mm
  • data output Yes
  • measuring units Metric / Imperial
  • throat depth 30mm / 1.18"
  • remarks Standard
  • contact point 10mm Diameter
description

The Insize 2871 Digital thickness gauge for measuring of thin componemts. The grIp handle and spring load plunger design, for efficient and repeatable measurements. With optional SPC cable data output, sizes range from 0-10mm (0.4”).

Features & Benefits

  • Ceramic spindle tip and anvil.
  • Buttons: on/off, zero, mm/inch.
  • Resolution 0.01mm/0.0005".
  • Battery CR2032, automatic power off.
  • Data output.

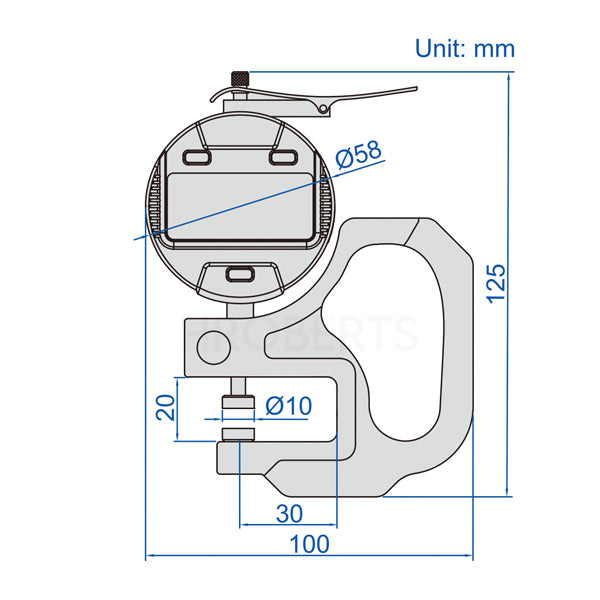

technical drawings
