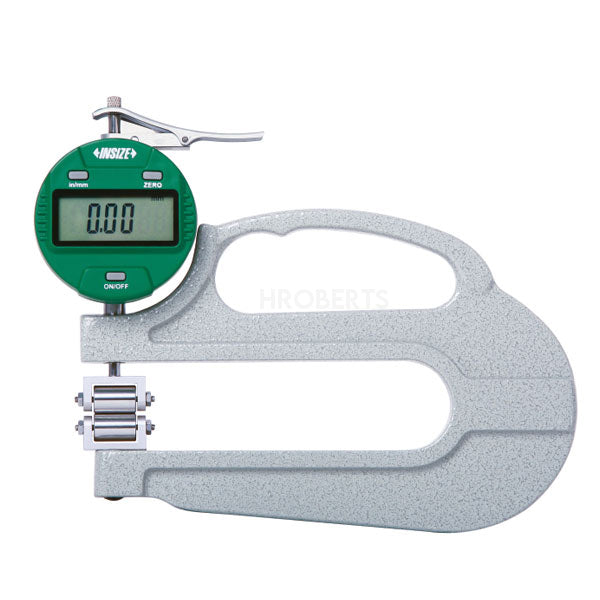

Insize 2877-4 Digital Digital Roller Thickness Gauge, Range 0-4.5mm / 0-0.18", Resolution 0.01mm / 0.0005"
SKU:Code: 2877-4
Sale
Sold out
Regular price
£754.95
Save: 10%
Sold out
Sale price
£754.95
Regular price
£838.83
Excl. VAT
The Insize 2877 Digital Roller thickness gauge for measuring of thin componemts. The grip handle and spring load plunger design, for efficient and repeatable measurements. With optional SPC cable data output, sizes range from 0-10mm (0.4”).
The UKs Leading Metrology Distributor
Trusted by the biggest companies in the UK
Need more information? Ask a question or contact us.
Questions & Answers loading...
Specification
Specification
- brand Insize
- type Dial Thickness Gauges
- range 0-4mm / 0-0.18"
- display type Digital
- resolution 0.01mm / 0.0005"
- accuracy ±0.02mm
- bezel dia 58mm
- data output Yes
- measuring units Metric / Imperial
- throat depth 120mm
- remarks Roller
- contact point 10mm Diameter
description
description
The Insize 2877 Digital Roller thickness gauge for measuring of thin componemts. The grip handle and spring load plunger design, for efficient and repeatable measurements. With optional SPC cable data output.
Features & Benefits
- Buttons: on/off, zero, mm/inch.
- Resolution 0.01mm/0.0005".
- Battery CR2032, automatic power off.
- Data output.
