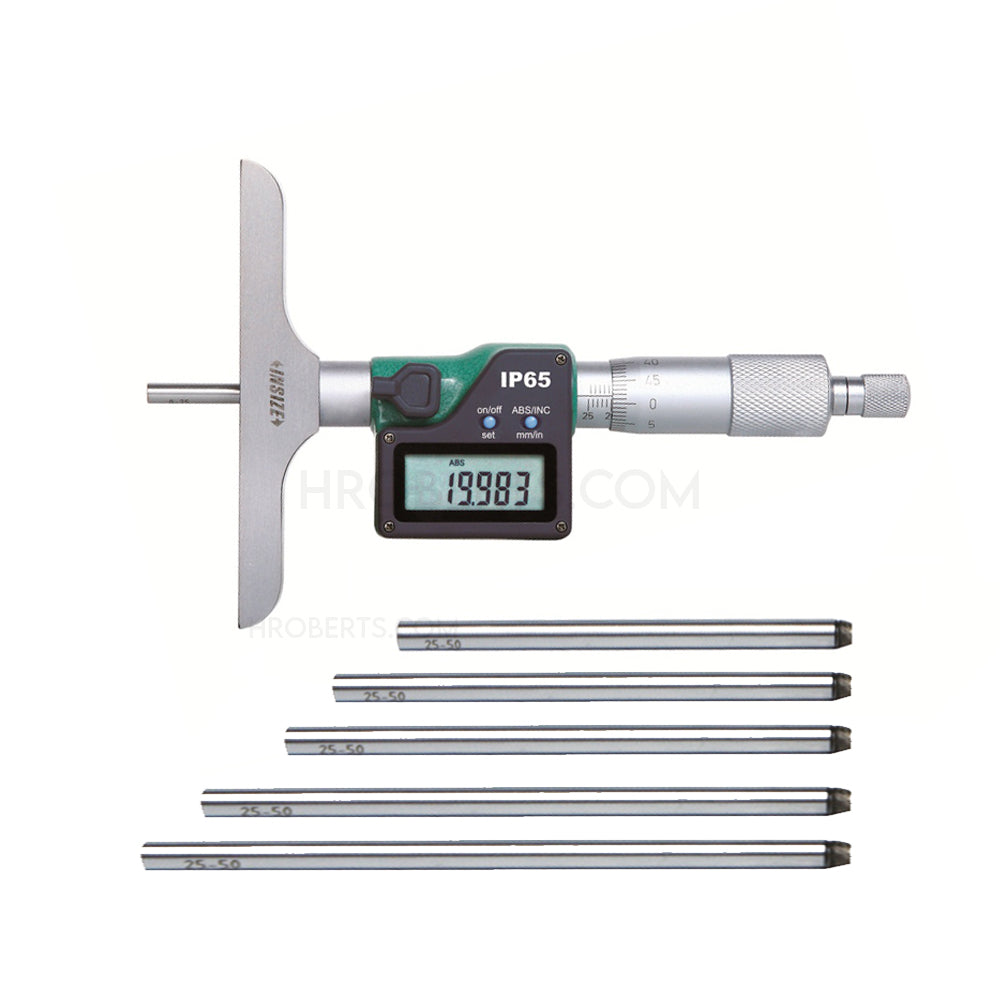

Insize 3540-150 Digital Interchangeable Rod Depth Micrometer, IP65, Range 0-6" / 0-150mm, Resolution 0.00005" / 0.001mm, Base 101.5 x 17" with Data Output
SKU:Code: 3540-150
Sale
Sold out
Regular price
£328.01
Save: 10%
Sold out
Sale price
£328.01
Regular price
£364.46
Excl. VAT
The insize 3540 series IP65 Digital Depth Micrometer is waterproof and dustproof and has a micrometer head accuracy of +/-3μm. The resolution is 0.001mm/0.00005” and has a rod accuracy of +/-(2+L/75).
The UKs Leading Metrology Distributor
Trusted by the biggest companies in the UK
Need more information? Ask a question or contact us.
Specification
Specification
- type Depth Micrometers Interchangeable Rod Type
- range 0-150mm / 0-6"
- display type Digital
- measuring units Imperial / Metric
- brand Insize
description
description
The insize 3540 series IP65 Digital Depth Micrometer is waterproof and dustproof and has a micrometer head accuracy of +/-3μm. The resolution is 0.001mm/0.00005” and has a rod accuracy of +/-(2+L/75).
- Resolution: 0.001mm/0.00005”.
- Micrometer head accuracy: +/-3μm.
- Rod accuracy: +/-(2+L/75).
- Button function: on/off, set, mm/inch, ABS/INC.
- IP65 dust/waterproof.
- Data output .
- LR44 battery, automatic power off.
- Rods with flat end.
- Ratchet stop.
