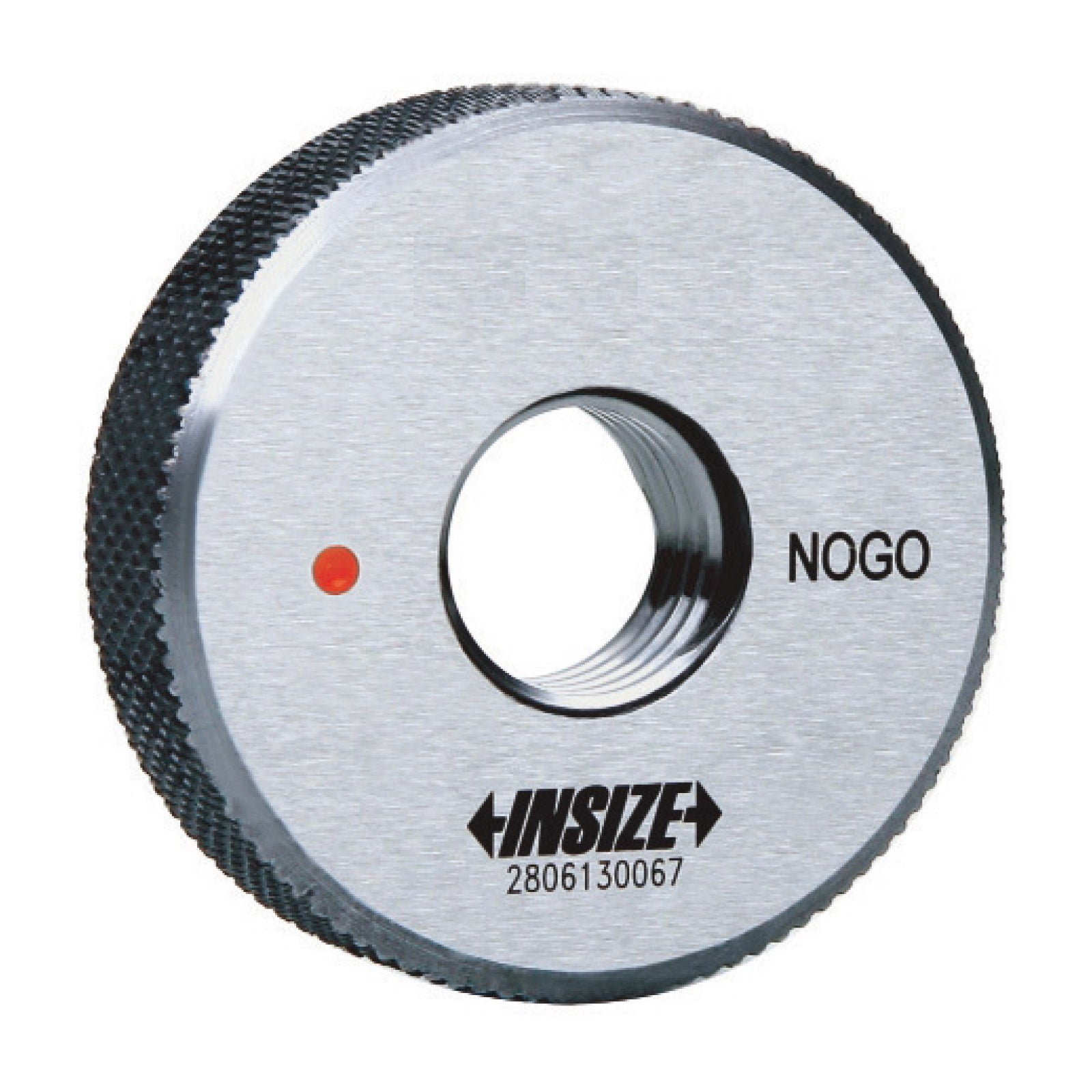

Insize (4121-1B2N) 1/4-28TPI UNF No-Go Ring Gauge 2A - 4121 Series
SKU:Code: 4121-1B2N
Sale
Sold out
Regular price
£31.36
Save: 10%
Sold out
Sale price
£31.36
Regular price
£34.84
Excl. VAT
- Go and No-Go are supplied seperatley.
- Class 2A tolerance.
- Thread Standard: ISO1502.
The UKs Leading Metrology Distributor
Trusted by the biggest companies in the UK
Need more information? Ask a question or contact us.
Specification
Specification
- type Thread Ring Gauge
- size 1/4"
- brand Insize
- handed Right
- TPI 28
- go or nogo No-Go
- thread form UNF (Unified Fine)
description
description
The Insize 4121 Thread Ring gauges for gauging outside thread, to determine if the thread is within the upper/lower limits of the components tolerance. The hole size can be determined by using go and no go plug. Made from hardened alloy steel for longer tool life and durability from machine shop wear.
