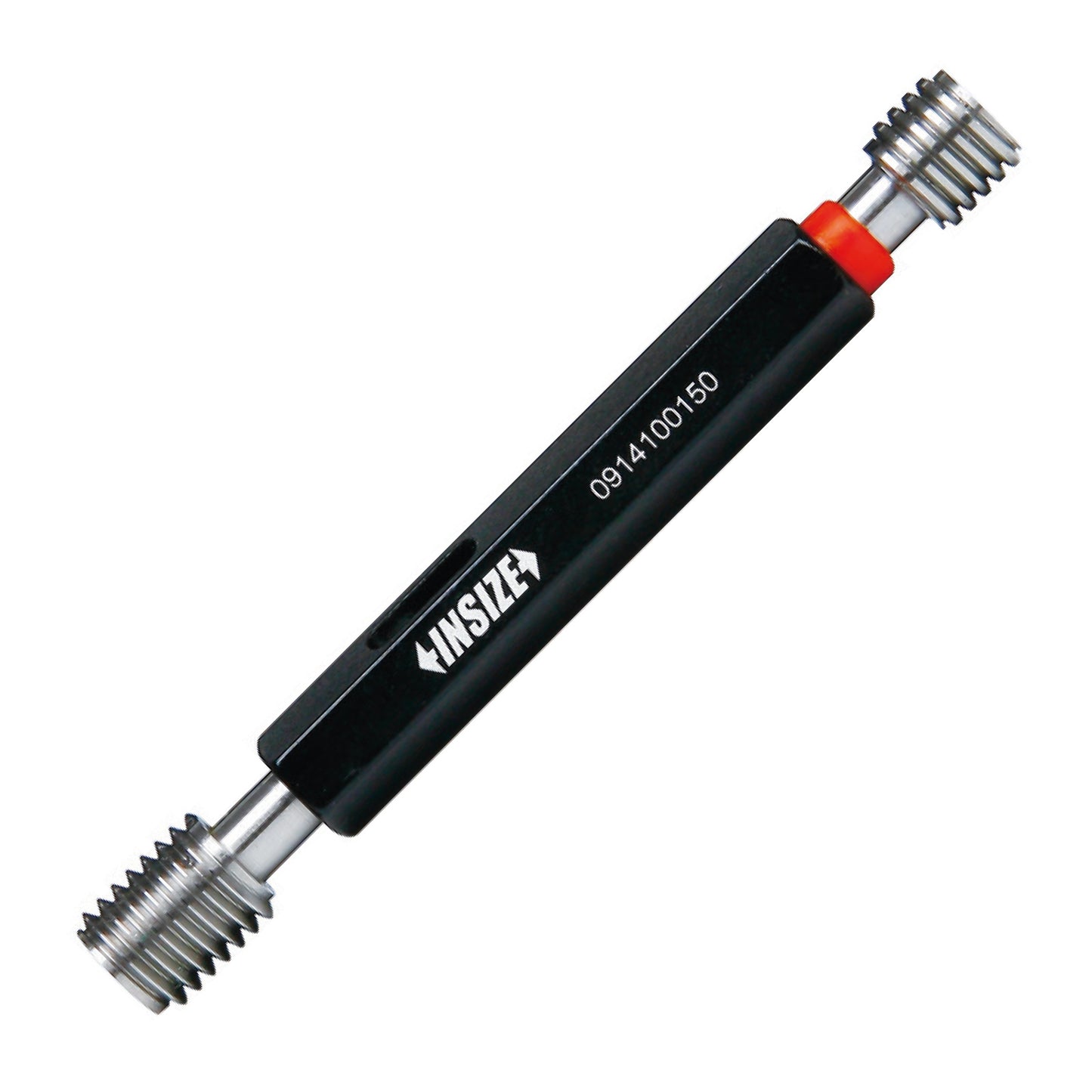

Insize (4131-1B1) 1/4-20TPI UNC Go/No-Go Plug Gauge 2B - 4131 Series
SKU:Code: 4131-1B1
Sale
Sold out
Regular price
£31.69
Save: 10%
Sold out
Sale price
£31.69
Regular price
£35.21
Excl. VAT
- Go and No-Go are supplied seperatley.
- Class 2B tolerance.
- Thread Standard: ISO1502.
The UKs Leading Metrology Distributor
Trusted by the biggest companies in the UK
Need more information? Ask a question or contact us.
Specification
Specification
- type Thread Plug Gauge
- size 1/4"
- brand Insize
- handed Right
- TPI 20
- go or nogo Go/No-Go
- thread form UNC (Unified Coarse)
description
description
The Insize 4131 Thread Plug gauges for gauging internal thread sizes, to determine if the thread is within the upper/lower limits of the components tolerance. The hole size can be determined by using go and no go plug. Made from hardened alloy steel for longer tool life and durability from machine shop wear.
