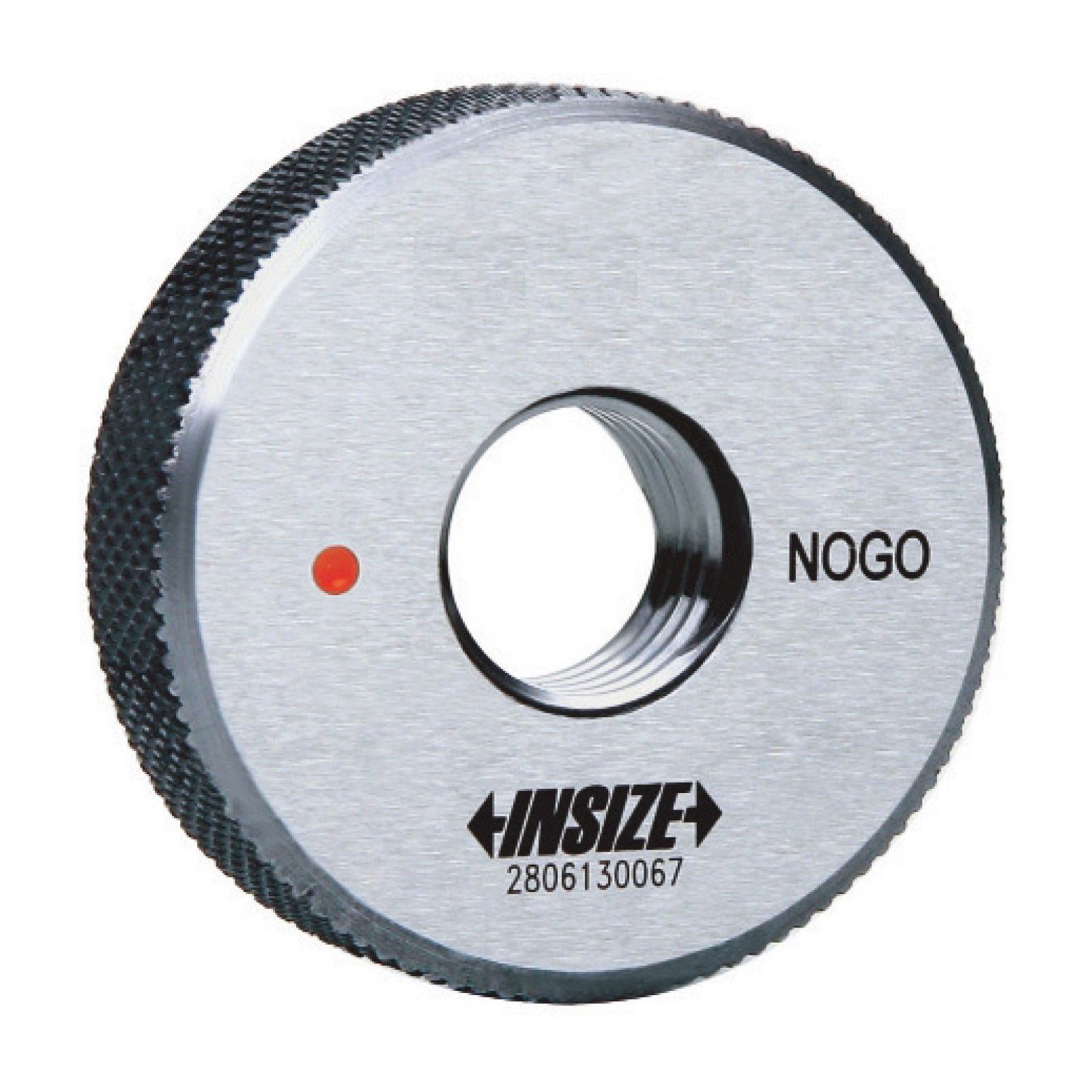

Insize (4631-8N) M8 x 1.25 Metric Coarse No-Go Ring Gauge 6g Oil Hardened - 4631 Series
SKU:Code: 4631-8N
Sale
Sold out
Regular price
£84.31
Save: 10%
Sold out
Sale price
£84.31
Regular price
£93.68
Excl. VAT
- Class 6G tolerance.
- Thread Standard: ISO1502.
- Material: OHNS (Oil Hardened Non-shrinking Steel).
- Hardness 60-62HRC.
The UKs Leading Metrology Distributor
Trusted by the biggest companies in the UK
Need more information? Ask a question or contact us.
Specification
Specification
- type Thread Ring Gauge
- size M8
- brand Insize
- handed Right
- pitch 1.25
- go or nogo No-Go
- thread form Metric ISO
description
description
The Insize 4631 Thread Ring gauges for gauging outside thread, to determine if the thread is within the upper/lower limits of the components tolerance. The hole size can be determined by using go and no go plug. Made from oil hardened alloy steel for longer tool life and durability from machine shop wear.
