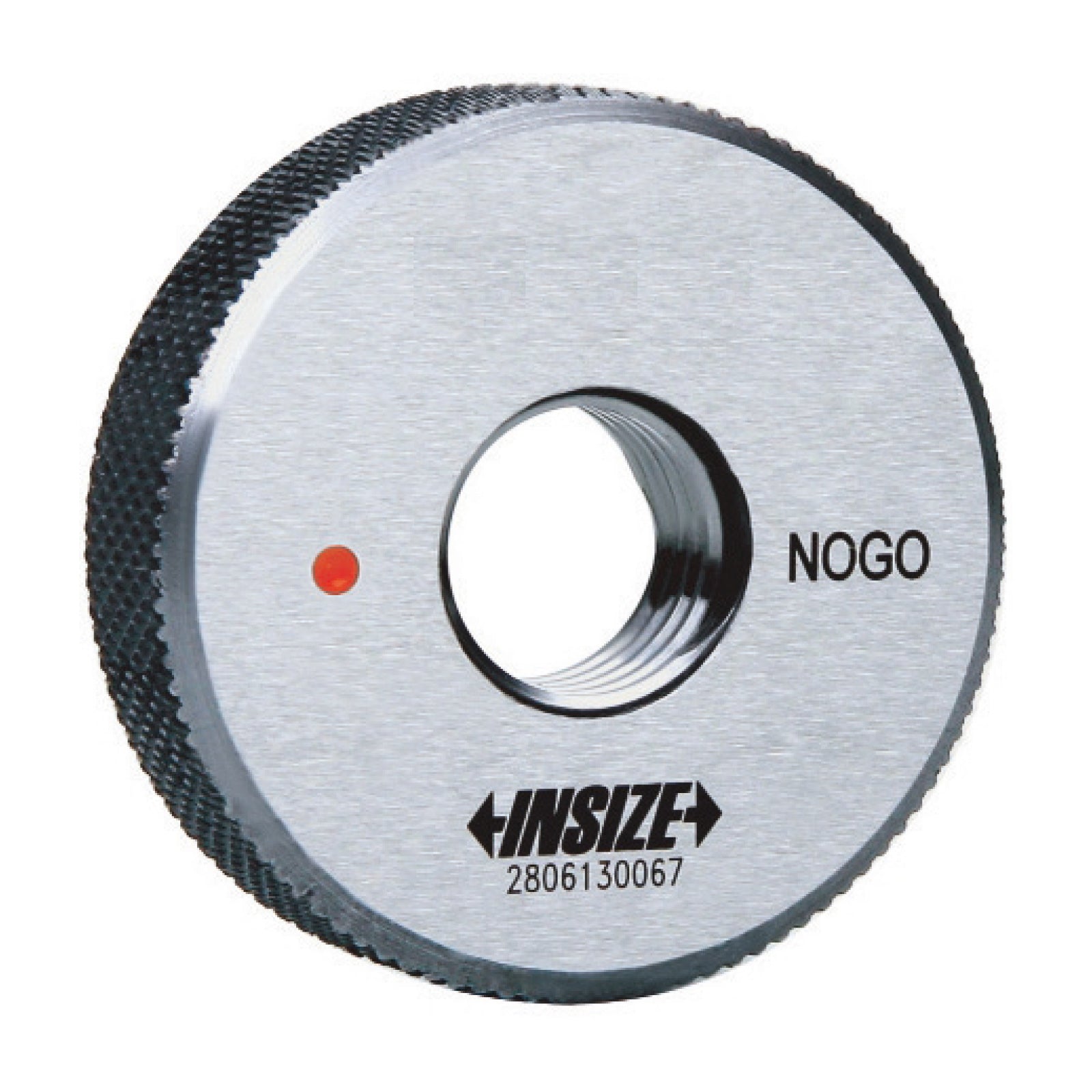

Insize (4633-1A2N) 1/2-20TPI UNF No-Go Ring Gauge 2A Oil Hardened - 4633 Series
SKU:Code: 4633-1A2N
Sale
Sold out
Regular price
£98.51
Save: 10%
Sold out
Sale price
£98.51
Regular price
£109.46
Excl. VAT
- Class 2A tolerance.
- Thread Standard: ANSI B1.2.
- Material: OHNS (Oil Hardened Non-shrinking Steel).
- Hardness 60-62HRC.
The UKs Leading Metrology Distributor
Trusted by the biggest companies in the UK
Need more information? Ask a question or contact us.
Specification
Specification
- type Thread Ring Gauge
- size 1/2"
- brand Insize
- handed Right
- TPI 20
- go or nogo No-Go
- thread form UNF (Unified Fine)
description
description
The Insize 4633 Thread Ring gauges for gauging outside thread, to determine if the thread is within the upper/lower limits of the components tolerance. The hole size can be determined by using go and no go plug. Made from oil hardened alloy steel for longer tool life and durability from machine shop wear.
