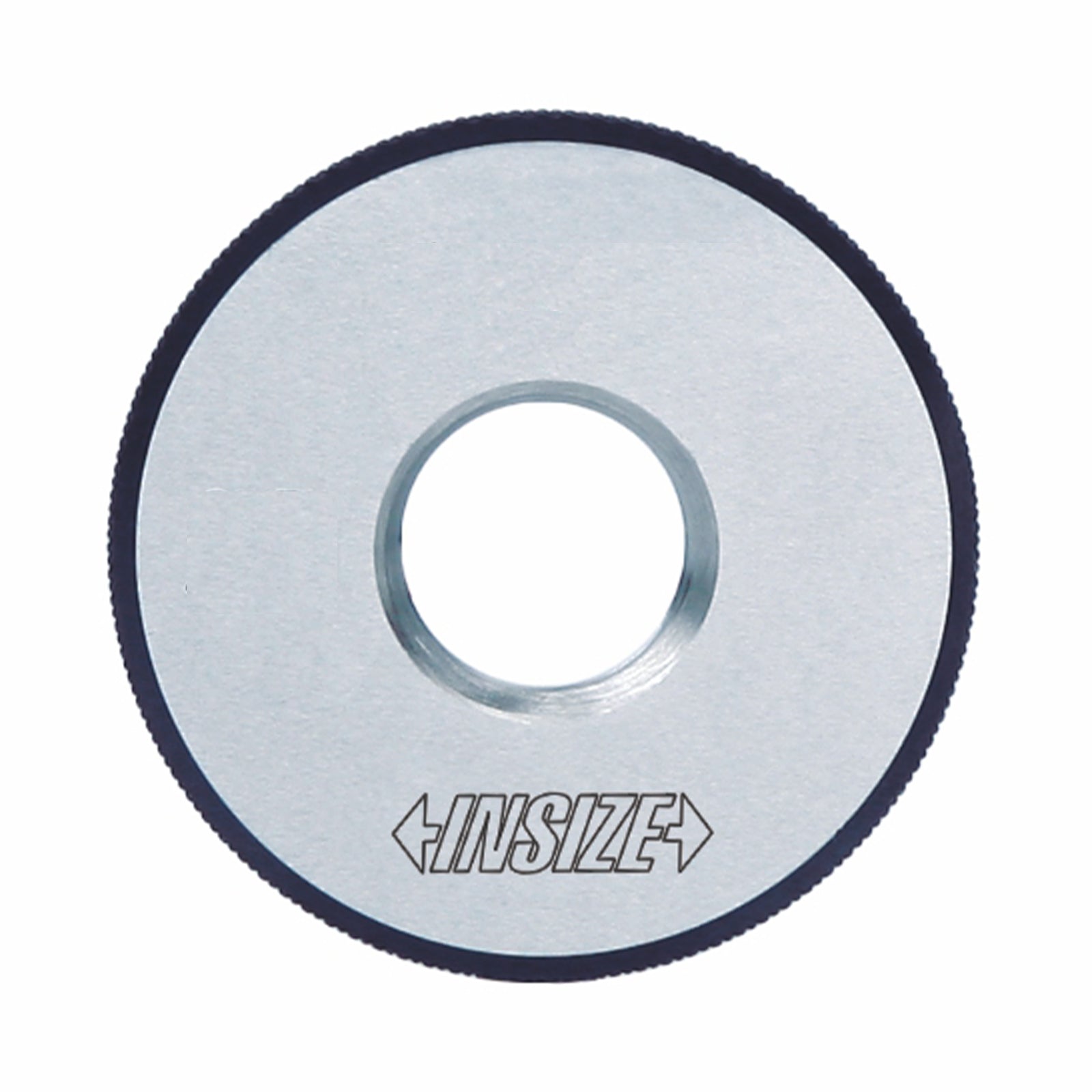

Insize (4634-112) 1 x 11.5TPI NPT Go/No-Go Ring Gauge Oil Hardened - 4634 Series
SKU:Code: 4634-112
Sale
Sold out
Regular price
£519.90
Save: 10%
Sold out
Sale price
£519.90
Regular price
£577.67
Excl. VAT
- Tapered pipe thread for threads with sealant.
- Thread Standard: ANSI/ASME B1.20.1.
- Taper 1:16.
- Material: OHNS (Oil Hardened Non-shrinking Steel).
- Hardness 60-62HRC.
The UKs Leading Metrology Distributor
Trusted by the biggest companies in the UK
Need more information? Ask a question or contact us.
Specification
Specification
- type Thread Plug Gauge
- size 1
- brand Insize
- handed Right
- TPI 11.5
- go or nogo Go/No-Go
- thread form NPT (National Pipe Taper)
description
description
The Insize 4634 Thread Plug gauges for gauging internal thread sizes, to determine if the thread is within the upper/lower limits of the components tolerance. The hole size can be determined by using go and no go plug. Made from oil hardened alloy steel for longer tool life and durability from machine shop wear.
