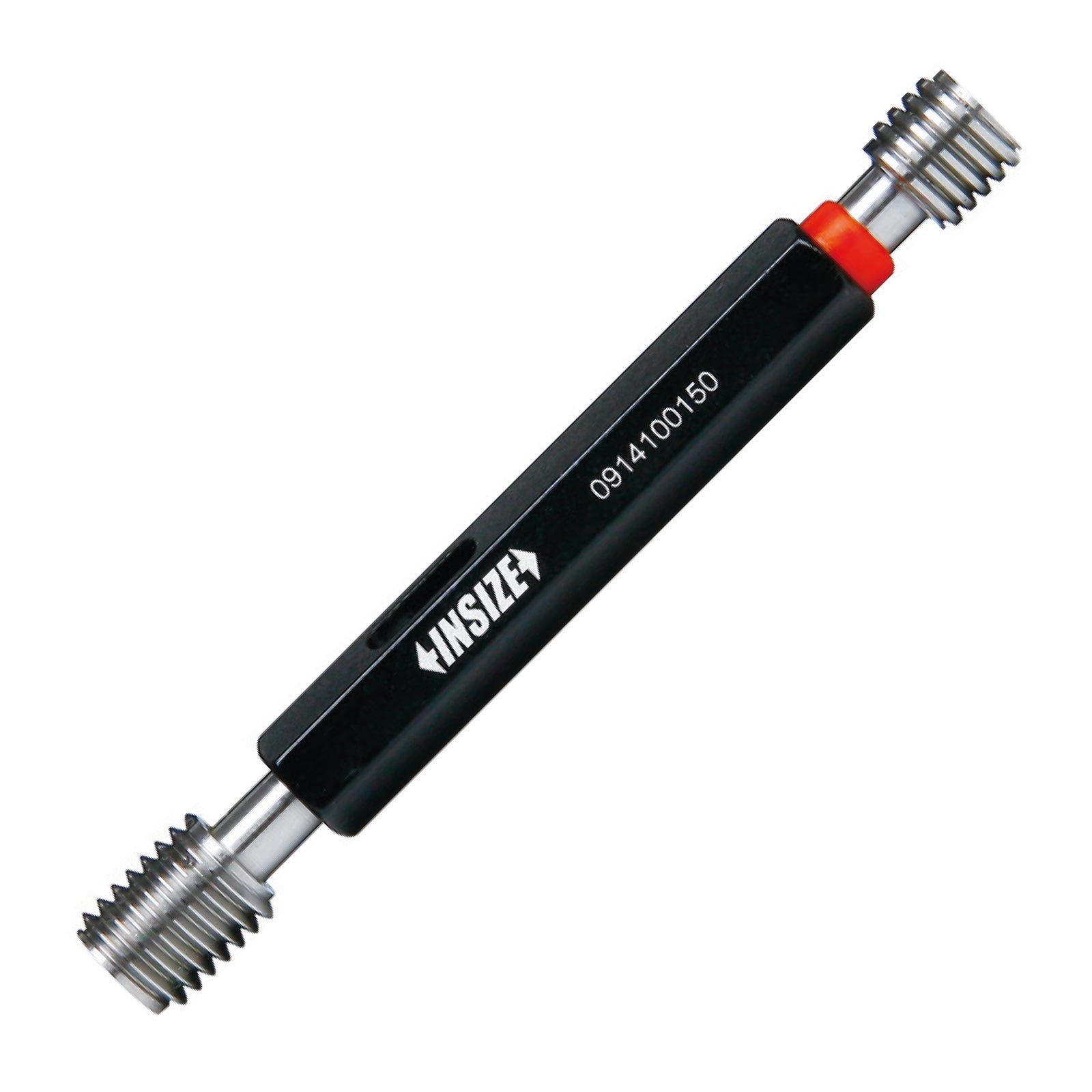

Images are for illustration purposes only - Products may differ.
Insize (4643-1A2) 1/2-20TPI UNF Go/No-Go Plug Gauge 2B Oil Hardened - 4643 Series
SKU:Code: 4643-1A2
Sale
Sold out
Regular price
£84.79
Save: 10%
Sold out
Sale price
£84.79
Regular price
£94.21
Excl. VAT
- Class 2B tolerance.
- Thread Standard: ANSI B1.2.
- Material: OHNS (Oil Hardened Non-shrinking Steel).
- Hardness 60-62HRC.
The UKs Leading Metrology Distributor
Trusted by the biggest companies in the UK
Need more information? Ask a question or contact us.
Specification
Specification
- type Thread Plug Gauge
- size 1/2"
- brand Insize
- handed Right
- TPI 20
- go or nogo Go/No-Go
- thread form UNF (Unified Fine)
description
description
The Insize 4643 Thread Plug gauges for gauging internal thread sizes, to determine if the thread is within the upper/lower limits of the components tolerance. The hole size can be determined by using go and no go plug. Made from oil hardened alloy steel for longer tool life and durability from machine shop wear.
