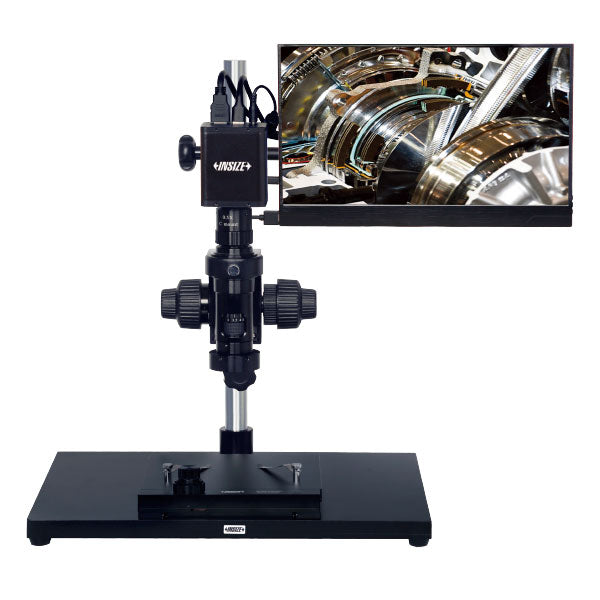

Insize 5315-S710 High-Definition Auto Focus Measuring Microscope, 28-185x Magnification (With Display)
SKU:Code: 5315-S710
The UKs Leading Metrology Distributor
Trusted by the biggest companies in the UK
Need more information? Ask a question or contact us.
- resolution 3000x4000
- magnification 28-185x
- brand Insize
The INSIZE 5315-S710 is a 4K auto-focus measuring microscope designed for high-precision inspection and measurement tasks. It features a 4K UHD camera, dual display capability (15.6″ LCD and computer output), and the ability to capture photos and videos directly to a memory card. The system supports automatic white balance, exposure control, and auto-focus to ensure clear imaging, and it includes advanced functions like focus stacking for extended depth of field and image stitching for creating large composite images.
The optical system uses a step-zoom lens with a 0.75×–5× zoom range and a fine-focus adjustment knob with 2 µm graduations for precise focusing. The integrated X-Y stage offers 100 × 86 mm of travel for positioning samples, making it ideal for measurement applications. A calibration plate is included to ensure measurement accuracy, and data can be exported conveniently to Excel.
Connectivity and operation are straightforward, with multiple ports including HDMI, USB 3.0, LAN, and I/O options. The microscope is shipped with a 0.5× camera adapter, auxiliary objective, X-Y stage, 16 GB USB flash drive, and mouse, while optional accessories such as a 1× adapter, 2× objective, and LED lighting are available. The system runs integrated measurement software with edge detection and calibration tools for professional use.
Physically, the unit measures about 570 × 300 × 430 mm and weighs approximately 15 kg, making it a robust but compact desktop solution. Its magnification range covers 17.5×–109× (LCD display) and up to 218× with optional accessories, providing versatility for a wide range of inspection tasks. Overall, the 5315-S710 is positioned as a high-performance, easy-to-use solution for precision visual inspection and measurement in industrial and laboratory environments.
