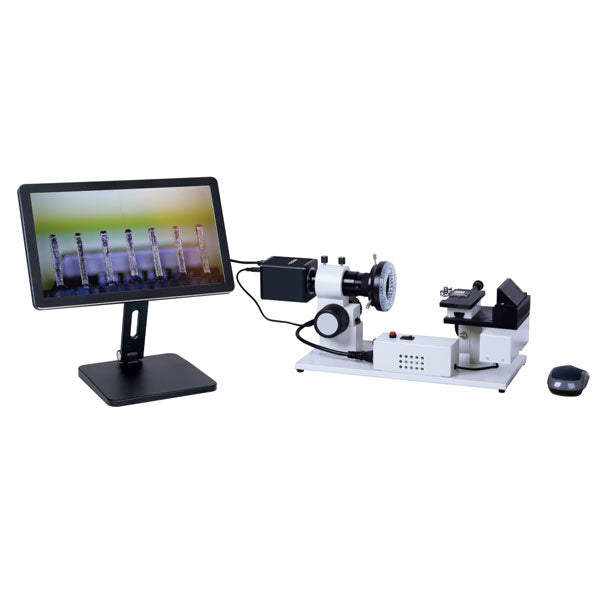

Insize 5316-HM810 Horizontal Microscope, 10.5× to 62.5× magnification
SKU:Code: 5316-HM810
The INSIZE 5316-HM810 is a horizontal digital microscope with display, offering 10.5× to 62.5× magnification, a 1/2.8″ CMOS sensor, and 2 MP 1080p imaging at up to 60 fps. It features a generous view field, approximately 4.5 × 2.5 mm to 28 × 12.3 mm, with a focus distance of around 115 mm. This standalone unit allows image capture to USB, measurement export to Excel, and HDMI output for external viewing. It delivers precise measurements with an accuracy of ±0.02 mm and includes adjustable brightness, contrast, gain, and crosshair overlays for versatile inspection tasks.
The UKs Leading Metrology Distributor
Trusted by the biggest companies in the UK
Need more information? Ask a question or contact us.
- resolution 1920 x 1080
- remarks Focus Distance = 115mm
- magnification 10.5× to 62.5×
- brand Insize
The INSIZE 5316-HM810 is a horizontal digital microscope with an integrated display, designed for precision inspection and measurement tasks. It provides clear 1080p imaging using a 1/2.8 inch CMOS sensor with 2 megapixels and delivers smooth video at up to 60 frames per second, making it suitable for real-time observation of small parts and components.
This microscope offers a magnification range from 10.5× to 62.5×, giving flexibility for both wide-field overview and close-up inspection. The view field ranges from approximately 28 × 12.3 mm at the lowest magnification to 4.5 × 2.5 mm at the highest magnification. The working distance is about 115 mm, allowing convenient access to the part being examined while maintaining a clear focus.
The INSIZE 5316-HM810 is designed as a standalone unit that does not require a computer. It is controlled using the included mouse and allows image capture directly to a USB flash drive. Measurement data can be exported to Excel for record keeping and quality documentation. This makes it practical for use in production areas, laboratories, and classrooms.
The measurement accuracy of this microscope is ±0.02 mm, ensuring reliability in dimensional checks and inspections. It features adjustable cross lines and scale lines, with the ability to change the number, color, and position to suit specific measurement tasks. The brightness, contrast, and gain are also adjustable to provide a clear image under different lighting conditions.
For connectivity, the 5316-HM810 includes an HDMI output that can connect to an external display for larger viewing or group training sessions. The package typically includes the microscope body with display, mouse, calibration plate, calibration rule, USB flash drive, HDMI cable, and power adapter, giving users everything needed to start measuring and inspecting right away.
