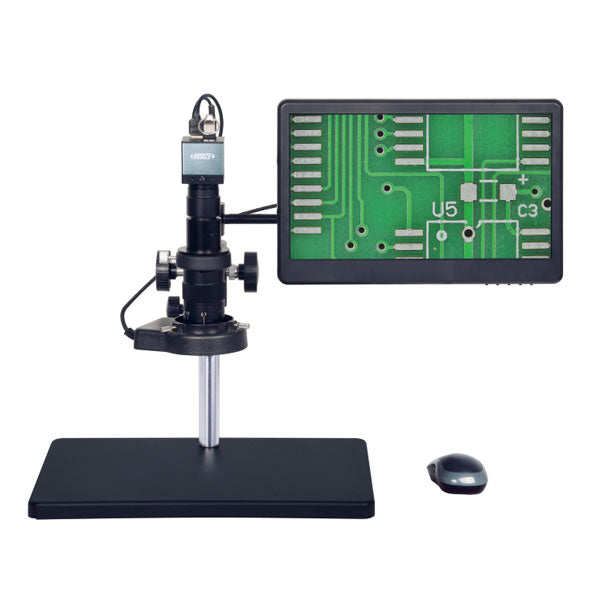

INSIZE 5318-MD60 — Digital Measuring Microscope (Basic Type)
The INSIZE 5318-MD60 is a compact, standalone digital measuring microscope designed for precision inspection and measurement tasks. It combines a high-definition camera, built-in measurement software, and user-friendly controls to deliver accurate results without the need for a computer.
Key Features
- High-definition imaging with a 1/2.8" CMOS sensor, 2 megapixels, and 1080p resolution at 60 frames per second.
- Standard magnification range of 12.5× to 80× with the included 1× auxiliary objective.
- Optional accessories allow magnification from 6.2× to 160× using a 0.5× camera adapter or 2× auxiliary objective.
- Adjustable view field sizes ranging from 23.5 × 13 mm to 3.7 × 2 mm depending on magnification.
Built-in Software and Workflow
- Operates as a standalone unit, controlled via an included mouse — no PC required.
- Allows image capture and saving directly to a USB flash drive (16 GB included).
- Measurement data can be exported to Excel for documentation and reporting.
Measurement Precision
- Measurement accuracy of ±0.02 mm.
- Offers customizable cross lines and scale lines, with options to adjust number, color, and position for different tasks.
Connectivity and Controls
- HDMI output for connecting to an external display.
- Adjustable brightness, contrast, and gain for clear imaging in various lighting conditions.
Physical Specifications and Package Contents
- Dimensions without stage: 380 × 260 × 350 mm, weight 4.5 kg.
- Dimensions with optional X-Y stage: 570 × 300 × 430 mm, weight 10 kg.
- Package includes microscope body, 0.5× camera adapter, 1× auxiliary objective, calibration plate, calibration rule, 16 GB USB flash drive, mouse, HDMI cable, and power adapter.
Summary
The INSIZE 5318-MD60 is ideal for quality control, part inspection, and training applications. Its combination of high-definition imaging, measurement accuracy, and standalone operation makes it a versatile solution for labs, workshops, and educational environments.
