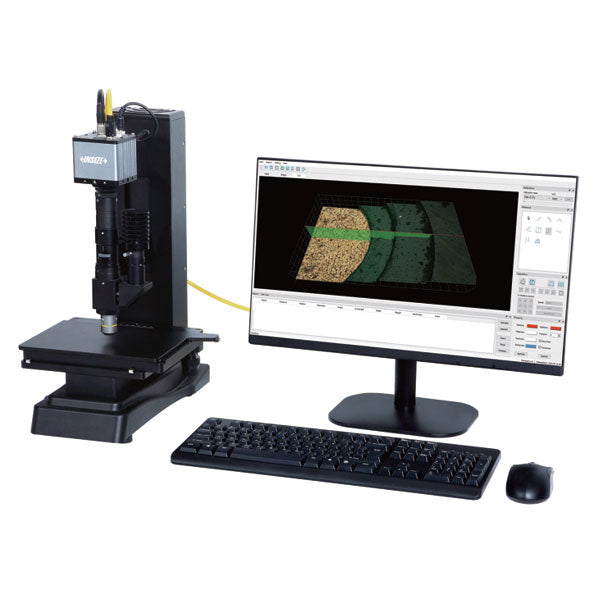

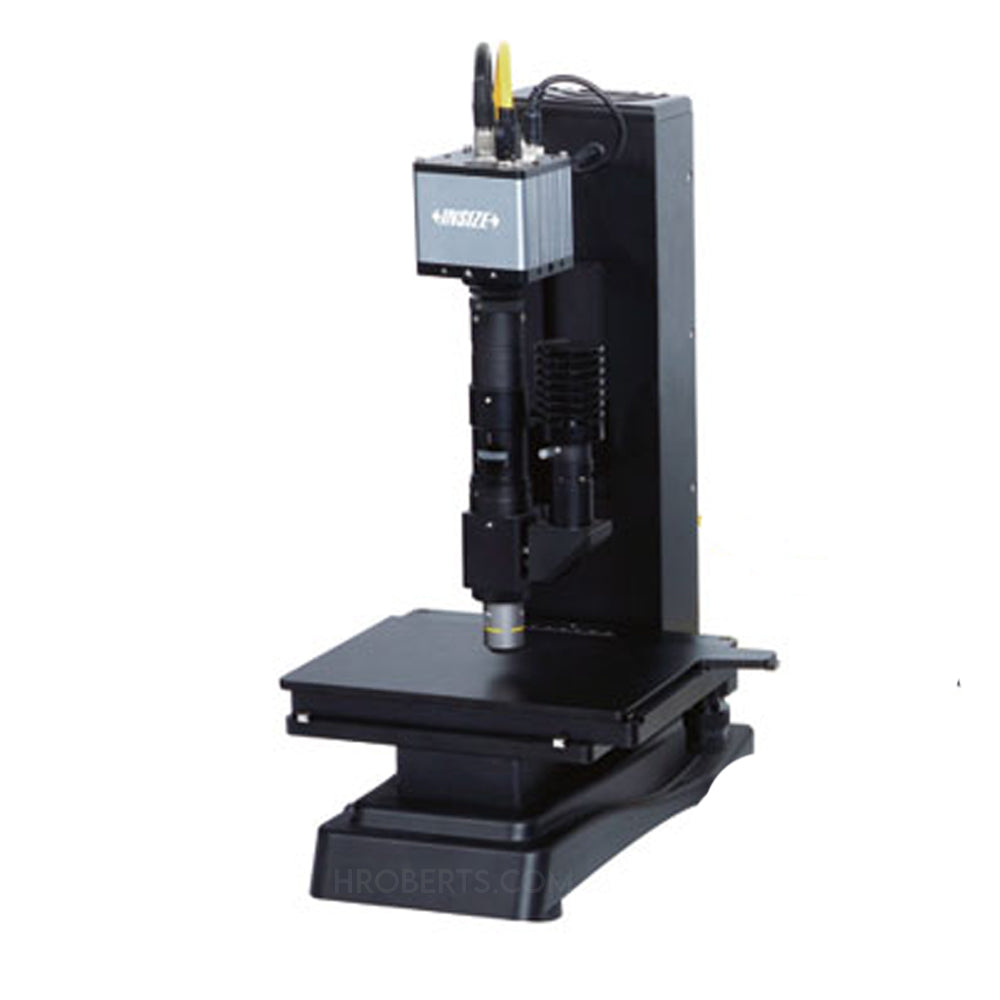

Insize 5323-D215 Large Depth Of Field 3D Measuring Microscope,142-970x Magnification (PC is optional)

Code: 5323-D215

Item priced on application.

Request a Price

Add to Compare

The INSIZE 5323-D215 is a high-precision 3D measuring microscope with a large depth of field, ideal for detailed surface profiling and inspection. It features a 2 MP CMOS camera, 30 fps imaging, motorized Z-axis control (30 µm–6 mm), and 3D stereoscopic visualization with color-coded height mapping. Magnification ranges from 142× to 970× with a 10× objective, and it offers HDMI and LAN outputs, a 200 × 180 mm stage, and ±5 µm plane measurement accuracy. Supplied with 10× and 1× objectives, calibration plate, and USB storage, it supports optional 5×, 20×, and 50× objectives for flexible measurement applications.

  • The UKs Leading Metrology Distributor

  • Trusted by the biggest companies in the UK

  • Need more information? Ask a question or contact us.
View full details
Specification
  • brand Insize
description

INSIZE 5323-D215 – Overview

The INSIZE 5323-D215 is a precision 3D measuring microscope designed for capturing sharp, stereoscopic images with exceptional depth of field. It is ideal for applications that require detailed surface profiling and topographical analysis.



Fast, true-depth imaging – Combines stacked images to generate large depth-of-field visuals quickly, making complex or uneven surfaces easier to inspect.



3D stereoscopic visualization – Allows users to drag, rotate, and view cross-sectional profiles at any angle, with color-coded overlays indicating height differences.



Precision Z-axis control – Driven by a high-precision stepping motor, offering Z-axis measurement across a 30 µm to 6 mm range for fine vertical profiling.



Dual display capability – Can connect simultaneously to a monitor and a computer for flexible viewing and analysis.
