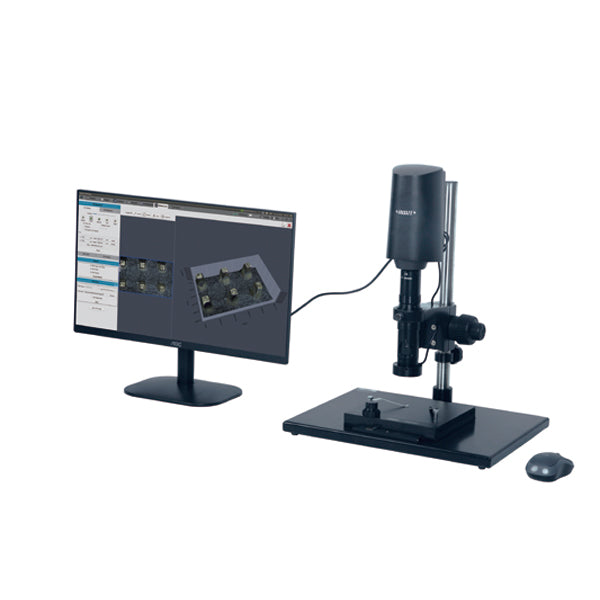

Insize 5324-K210 Large Depth Of Field 3D Measuring Microscope, magnification range of 100× to 750×
SKU:Code: 5324-K210
The UKs Leading Metrology Distributor
Trusted by the biggest companies in the UK
Need more information? Ask a question or contact us.
- range 0.6×0.32~4.5×2.5mm
- resolution 1920×1080
- magnification 100-750X
- brand Insize
The INSIZE 5324-K210 is a compact, high-performance 3D measuring microscope designed for applications that demand large depth-of-field imaging. It features a motorized autofocus camera with automatic focus stacking, enabling crisp, detailed images from top to bottom of the sample. Built-in software allows full operation without a separate computer, letting users perform plane and profile height measurements quickly and generate reports directly in PDF format.
Optical performance is a major strength of the 5324-K210, offering a magnification range of 100× to 750× for detailed inspection work. The system uses a ½-inch, 2-megapixel CMOS sensor with 1920 × 1080 resolution running at 60 frames per second, ensuring smooth and precise live imaging. The field of view ranges from 0.6 × 0.32 mm to 4.5 × 2.5 mm, providing flexibility for both small and medium-sized samples.
Measurement accuracy is impressive, with planar measurement precision of ±8 µm. The working distance of 30 to 40 mm gives ample clearance for handling different sample types without obstruction. Data can be output via HDMI or LAN, making integration with display systems or networks seamless for documentation and analysis.
Physically, the 5324-K210 is a practical solution for lab or production environments, measuring 570 × 300 × 430 mm and weighing just 10 kg. Its lightweight yet sturdy construction, combined with a simple power adapter connection, makes it easy to relocate or fit into a compact workspace, all while delivering professional-grade 3D measurement capabilities.
