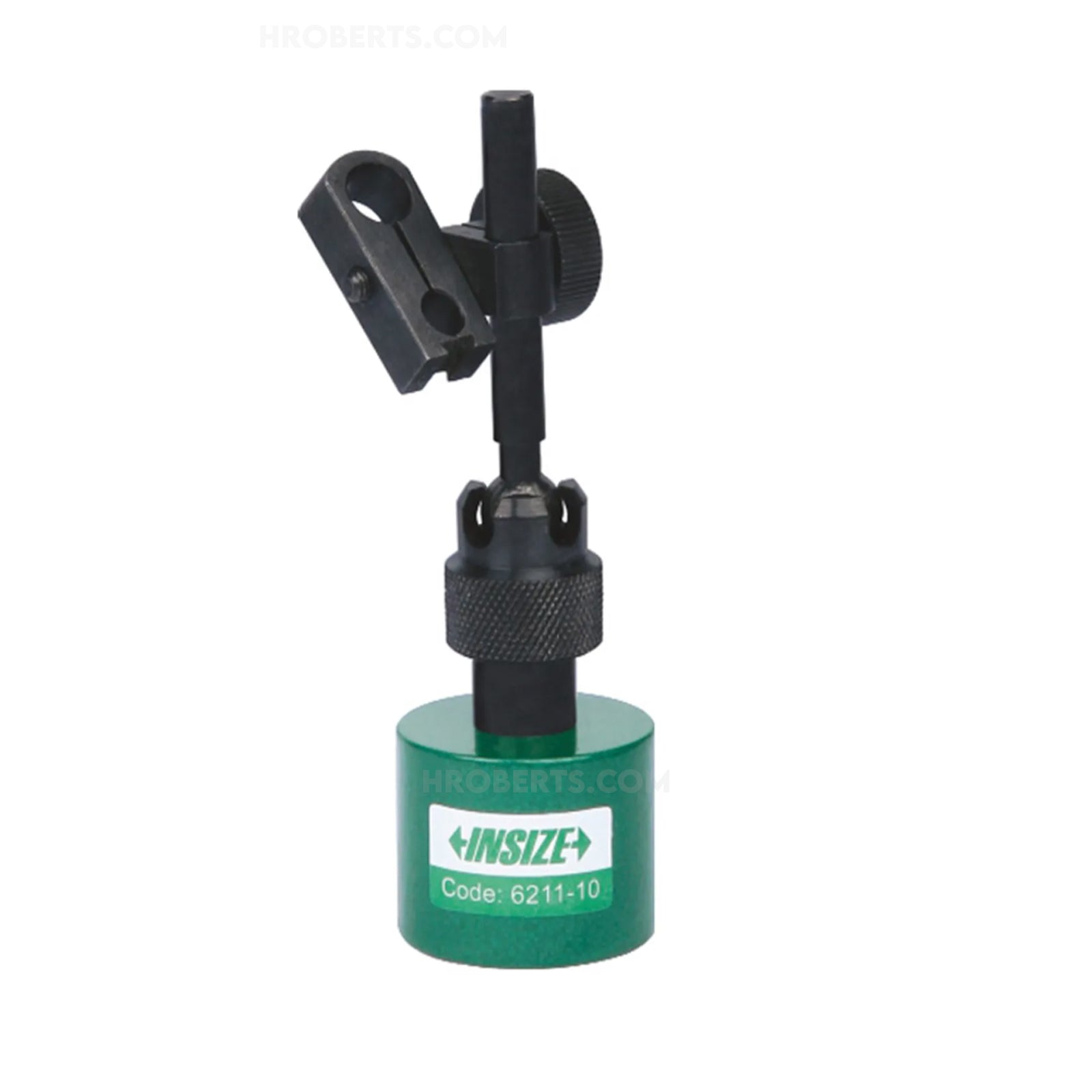

Insize 6211-10 Mini Magnetic Stand

Code: 6211-10

Sale Sold out £40.89
Save: 10% Sold out £40.89 £45.43
Excl. VAT
The Insize 6211 Mini Magnetic stand to for use on steel or iron surfaces. The mechanical arm can be adjusted and locked into position by using the knob on the upright. This stand can only hold dial test indicators during alignment and testing operations.

Possible alternatives

  • Mitutoyo 7014-10 Mini Magnetic Stand

    Stands

    Mitutoyo 7014-10 Indicator Stand

    £58.88
    £58.88 £78.50
    Excl. VAT
    View product

Request a Quote

Add to Compare

  • The UKs Leading Metrology Distributor

  • Trusted by the biggest companies in the UK

  • Need more information? Ask a question or contact us.
View full details
Specification
  • brand Insize
  • type Magnetic Stand
  • acceptable stem sizes Diameter 6mm 8mm
  • column length 75mm
description

The Insize 6211 Mini Magnetic stand to for use on steel or iron surfaces. The mechanical arm can be adjusted and locked into position by using the knob on the upright. This stand can only hold dial test indicators during alignment and testing operations.

  • For dial test indicators.
  • Dovetail groove.
  • Metric stem holes.
  • Magnetic force 10kgf.

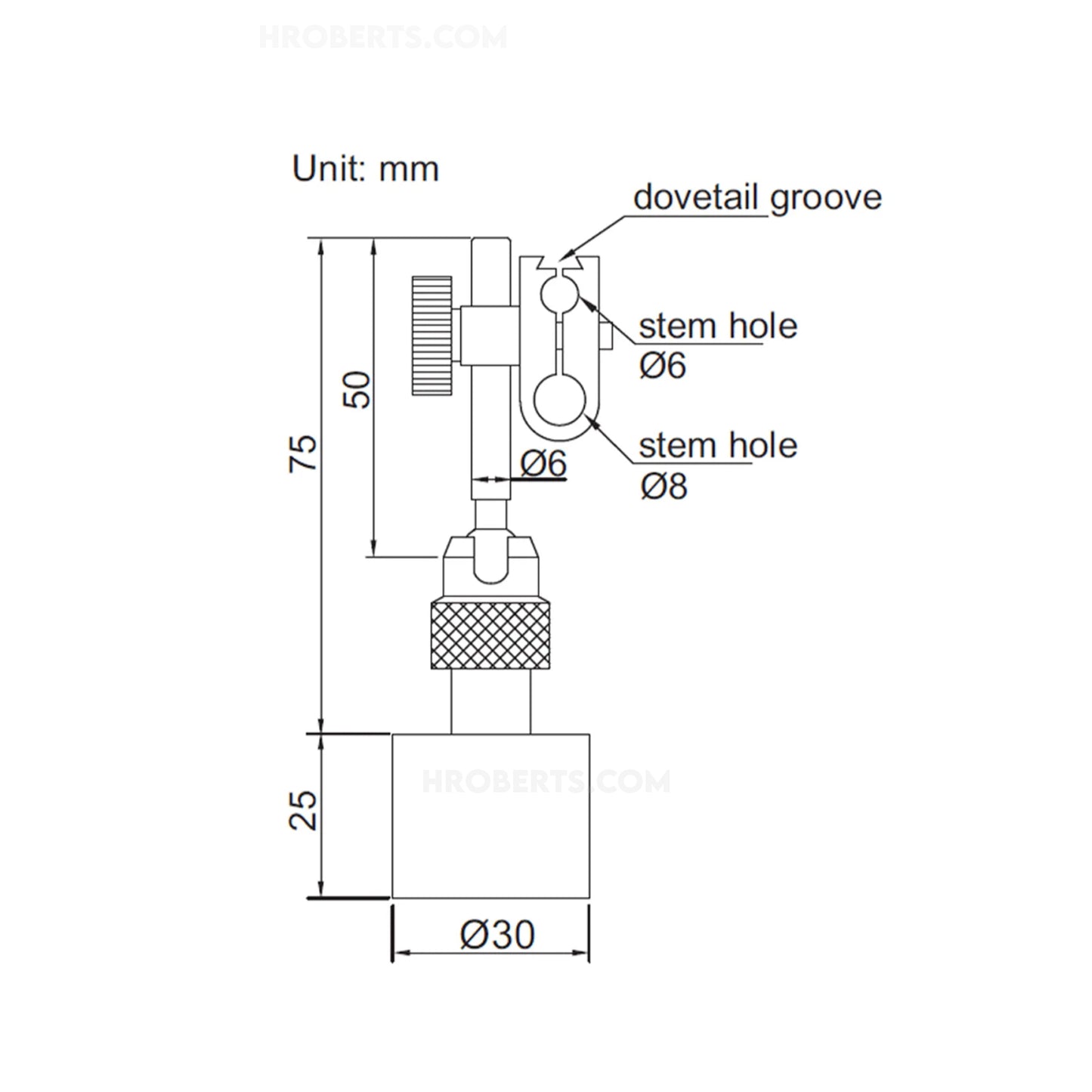

technical drawings
