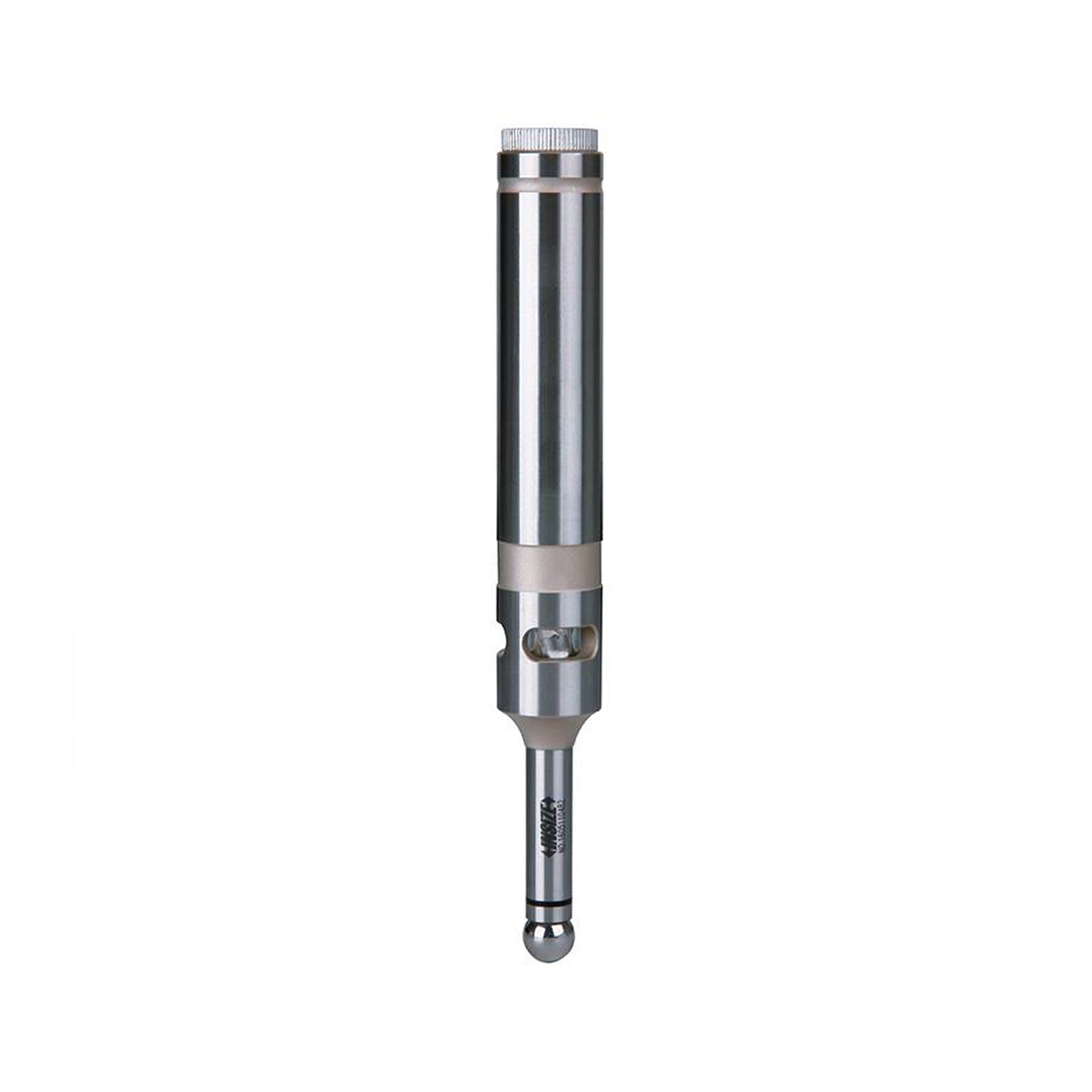

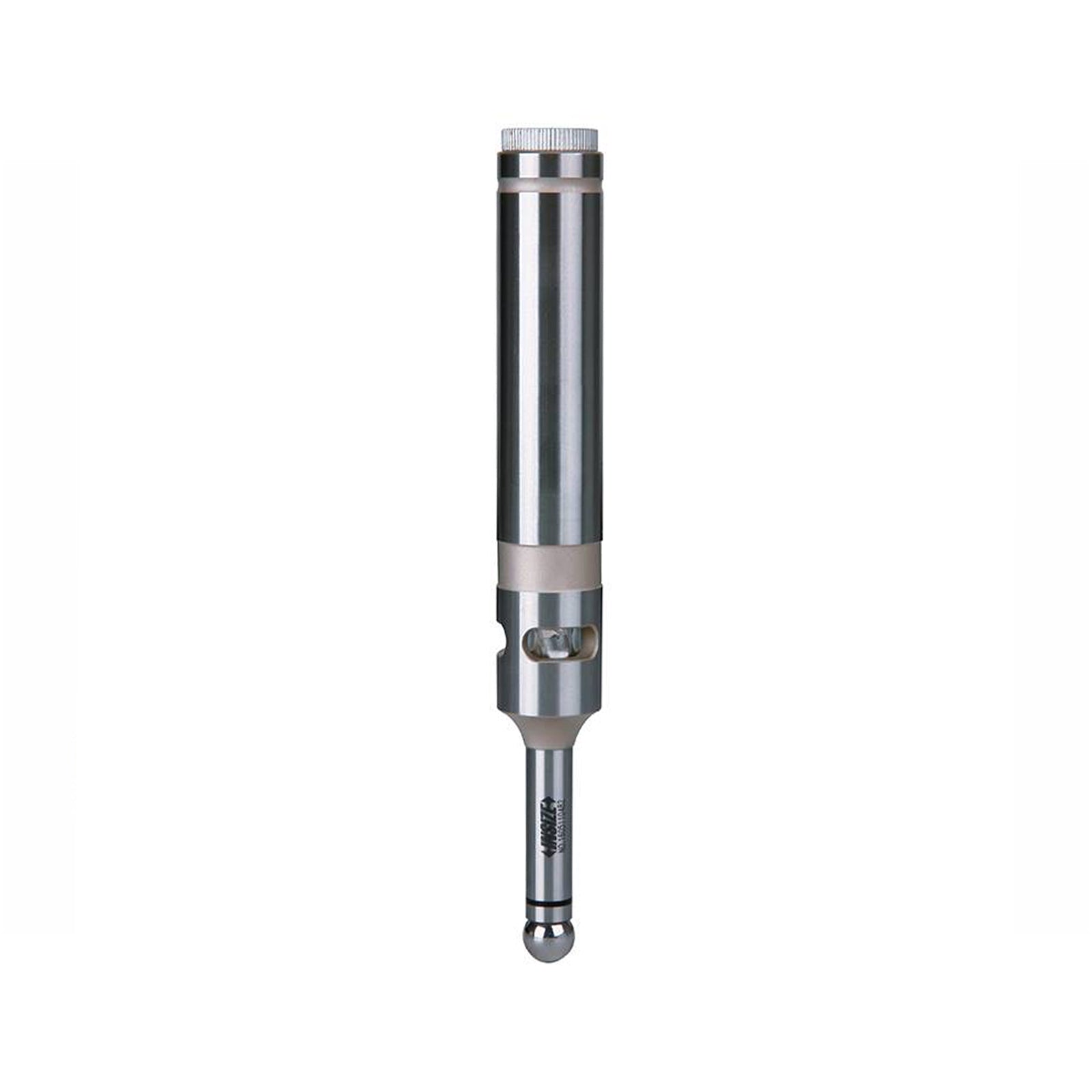

Insize (6566-3) 20mm x 10mm 2D Electronic Edge Finder (with Beeper) - 6566 Series (Insize)
SKU:Code: 6566-3
Sale
Sold out
Regular price
£84.60
Save: 10%
Sold out
Sale price
£84.60
Regular price
£94.00
Excl. VAT
The 6566 Insize Electronic Edge Finder with LED and beeper provides quick and accurate measurements. The edge finder is made of hardend alloy steel for longer tool life and durability from machine shop wear.
The UKs Leading Metrology Distributor
Trusted by the biggest companies in the UK
Need more information? Ask a question or contact us.
Specification
Specification
- brand Insize
- type Edge Finder
- accuracy 0.005mm
- remarks Contact Point Ball
- style Electronic
- axis grouped 2D
- shank 20
- contact ball measuring 10mm
description
description
- The shank is electrically conducted to the metal workpiece through the chuck and table, the LED lights up and the beeper sounds(only for 6566-3), when the ball touches the workpiece.
- Not suitable for rotary use.
- Hardened shank and contact ball.
- More accurate than Wigglers / Wobbler.
- Edge finder automatically resets when you back away from the setting edge.
- More accurate than Wigglers / Wobblers.
