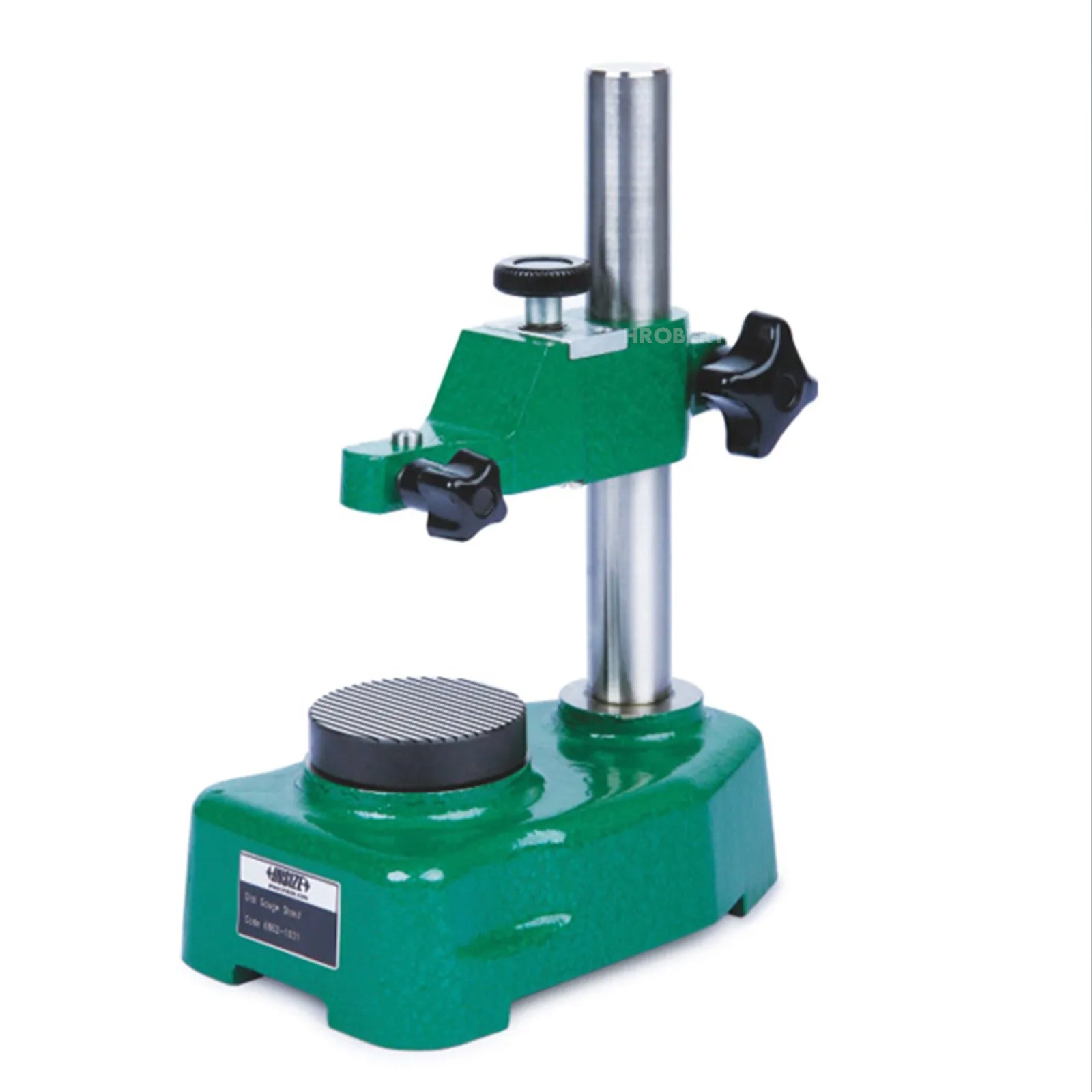

Insize 6862-1002 Dial Gauge Stand, Column Travel 0-100mm
SKU:Code: 6862-1002
Sale
Sold out
Regular price
£280.63
Save: 10%
Sold out
Sale price
£280.63
Regular price
£311.81
Excl. VAT
The Insize 6862 Dial Indicator Stand, designed for comparing size measurements using dial or digital indicators. With the small base and adjustable height along with fine adjustment, it makes a great inspection device for small components.
The UKs Leading Metrology Distributor
Trusted by the biggest companies in the UK
Need more information? Ask a question or contact us.
Specification
Specification
- type Dial Indicator Stand
- remarks With Flat Anvil 58mm Diameter
- column travel 0-100mm
- column style Plain
- column dia 24mm
- column length 191mm
- brand Insize
description
description
- Fine adjustment range 2mm.
- Vertical travel of holder 100mm.
- Flatness 0.0015mm.
- Anvil hardness 60 hrc +/-2.
- Comes with dust cover.

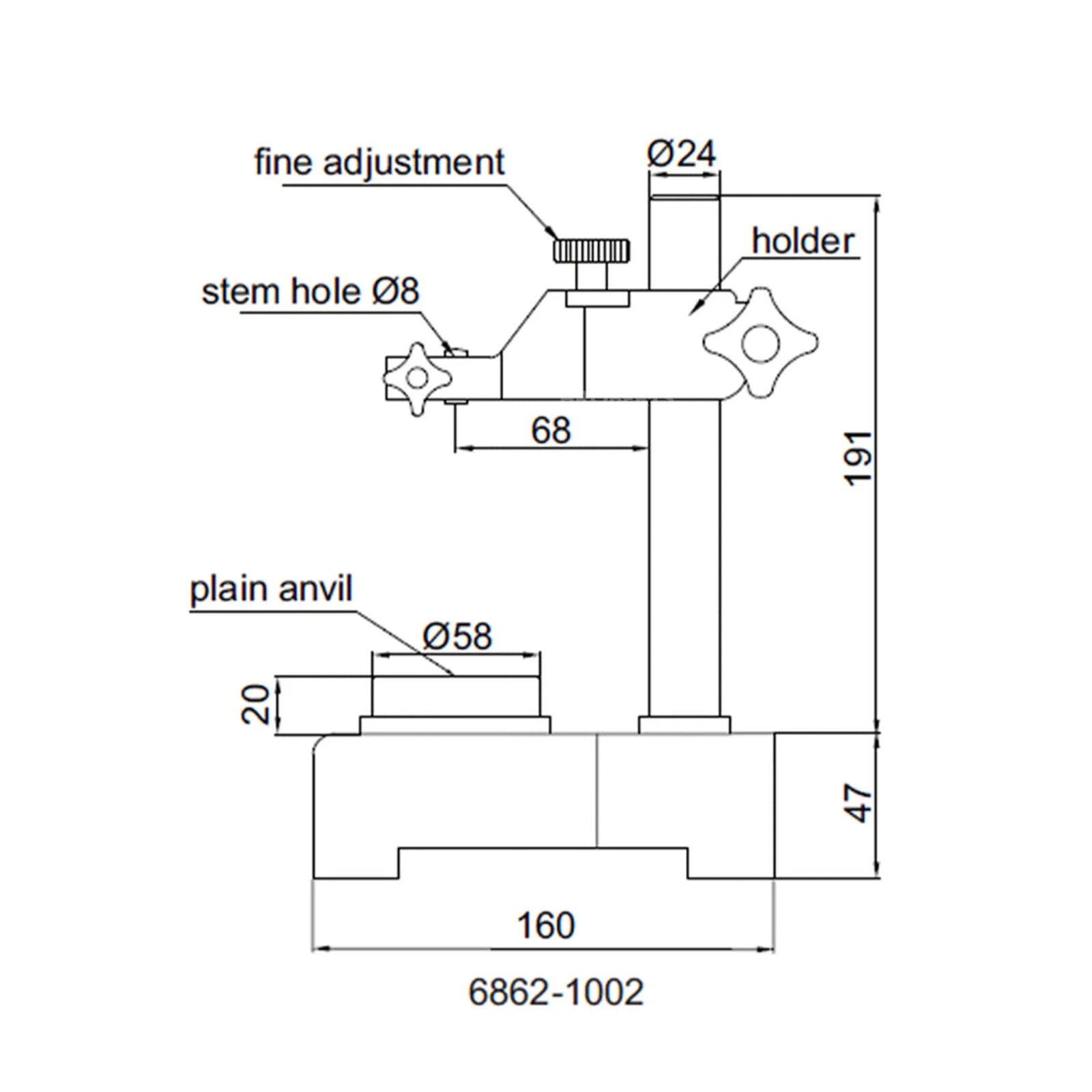

technical drawings
