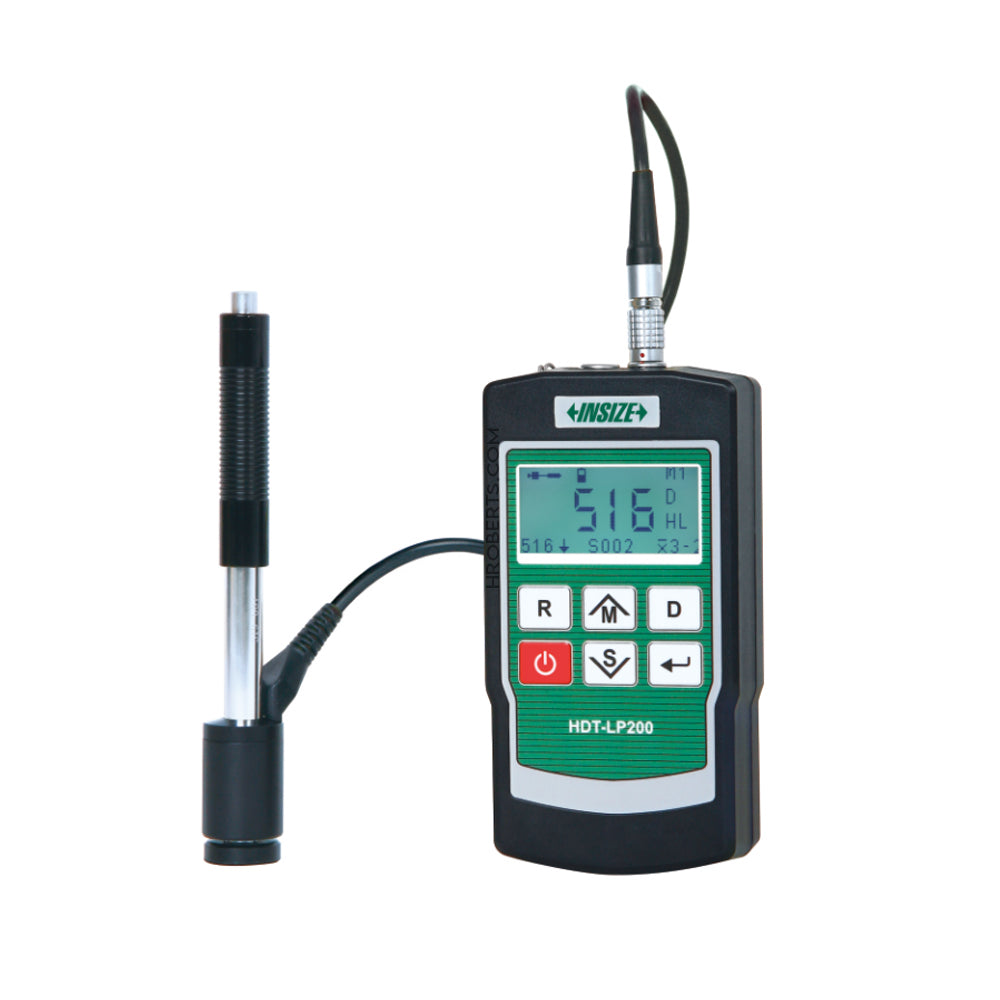

Insize HDT-LP200 Leeb Hardness Tester (Basic Type)

Code: HDT-LP200

Sale Sold out £377.54
Save: 10% Sold out £377.54 £419.49
Excl. VAT
Hardness tests on installed machines or steel structures: e.g. on heavy and large work-piece or on permanently installed system parts. Rapid testing of multiple measuring areas for examination of hardness variations over larger regions. Measuring hardness for produced parts at production line. Identifying metallic material stored in a warehouse. Ineffectiveness analysis of permanent parts, pressure -vessel, turbo generator.

Request a Quote

Add to Compare

  • The UKs Leading Metrology Distributor

  • Trusted by the biggest companies in the UK

  • Need more information? Ask a question or contact us.
View full details
Specification
  • brand Insize
description

Accuracy: ±6HLD(HL = 800),
Resolution: 1HLD, 1HV, 1HB, 0.1HRC, 0.1HRB, 0.1HRA,
0.1HS, 1SGM
Display: Backlit LCD display
Impact direction: full Angle measurement
Hardness scale: HL/HRC/HRB/HB/HV/HS/SGM
Measuring range: HL170-960, HRC17-70, HRB13-109, HB20-655,
HV80-940, HS32-99.5, SGM (rm) 225-2639N/mm²
Memory: 300 data can be saved and re-readable
Power supply: 1.5V AAA battery *1, With power display
Interface: RS232 interface is used to connect computer
Statistics: Average/Max/Min value can be calculated automatically
Operating environment: -10~+45°C
Standard: ASTM A956, DIN 50156, GB/T 17394-1998
Dimension (L x W x D): 124 x 67 x 30 mm
Weight: 240 g
Working conditions:
Minimum weight: 5kg(direct measurement)
 2kg(fixed to the weight)
 0.05kg(coupled to the weight)
Minimum thickness: 5mm
Minimum radius: 30mm
Minimum roughness(Ra): 2µ
